Objektnummer | B00013545 |
---|---|
ID-Nummer | 013545 |

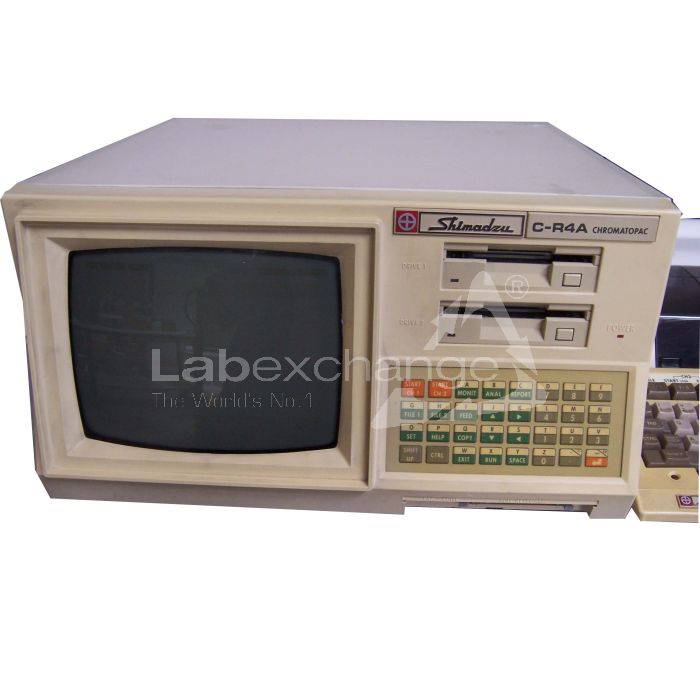

Objektbezeichnung | Shimadzu CR 4A |
Status | Archiv |
Status, Liefer- und Zahlungsbedingungen
Geräteüberprüfung
Die gebrauchten Laborgräte werden vor der Auslieferung von der Labexchange Service GmbH überprüft. Sie erhalten voll funktionsfähige Geräte.
Versandzeit
Die angegebenen Versandzeiten sind die jeweils kürzesten für einen Artikel. Die tatsächlich Versandzeiten können im Einzelfall davon abweichen. Die endgültigen Versandzeiten werden in der Auftragsbestätigung angegeben.
Bei Bestellung/Anfrage von mehreren Artikeln bieten wir grundsätzlich Sammellieferung an. Die Versandzeit berechnet sich nach der Position mit der längsten Versandzeit. Auf ausdrücklichen Wunsch ist eine Teillieferung möglich.
Versandarten
Paketdienste, Speditionen, Selbstabholung, Lieferung durch Labexchange-Fuhrpark
Lieferinformationen
Unsere Lieferbedingungen sind grundsätzlich zzgl. Versandkosten. Angegebene Versandkosten sind zu erwarten. Falls anfallende Versandkosten nicht angegeben sind, fragen Sie diese bitte gesondert an.
Die angegebenen Fracht- und Verpackungskosten beziehen sich auf den günstigsten Transportweg und sind vorbehaltlich unvorhergesehener Kostensteigerungen. Durch unvorhersehbare Ereignisse können sich die Frachtraten und die Lieferzeiten jederzeit ändern und müssten der aktuellen Situation angepasst werden. Incoterm-Kodierung gemäß Incoterms 2010: Bei Selbstabholung EXW, bei Sendungen per Schiff CFR, per Luftfracht CPT, übrige Sendungen DAP. Hinweis für Auslandssendungen: Ein Präferenznachweis/EUR1 wird von uns nicht ausgestellt. Bei Selbstabholung/EXW aus Drittländern und der EU werden 16% MWSt als Kaution einbehalten bis wir die Gelangensbestätigung/den Verbringungsnachweis des Käufers erhalten haben.
Zahlungsbedingungen
Wir akzeptieren keine Zahlung per Letter of Credit, PayPal etc. Der Rechnungsbetrag ist in jedem Fall ohne Abzug fällig. Die Ware bleibt bis zur vollständigen Bezahlung unser Eigentum. Skonto wird nicht gewährt.
Land |
Mögliche Zahlungsarten |
Bemerkung |
DE, AT, CH |
Rechnung, Vorkasse, Kreditkarte |
Eine Zahlung per Rechnung ist nur für Firmenkunden möglich. |
NL, BE, LU |
Rechnung, Vorkasse, Kreditkarte |
Eine Zahlung per Rechnung ist nur für Firmenkunden möglich. |
Alle weiteren Länder |
Vorkasse, Kreditkarte |
|
Es gelten unsere Allgemeinen Verkaufs-, Lieferungs- und Zahlungsbedingungen. Diese finden Sie hier. Zwischenverkauf, sowie Irrtum und Preisänderungen sind vorbehalten.
Statusdefinition
Alle Artikel sind gebrauchte Artikel, es sei denn ein Artikel wird explizit als Neugerät aufgeführt.
Status |
Zustand |
Bemerkung |
Sofort verfügbar |
gebraucht |
Der Artikel wurde bereits überprüft und befindet sich in einem einwandfreien Zustand. Er kann direkt an Sie versendet werden. |
Lagergerät |
gebraucht |
Der Artikel befindet sich in unserem Lager. Unsere Techniker werden den Artikel vor der Auslieferung überprüfen. Sie erhalten voll funktionsfähige Artikel. |
Anbieter |
gebraucht |
Der Artikel befindet sich noch beim Anbieter. Nach Ihrer Bestellung wird er von uns angekauft, überprüft und an Sie versendet. Ein Funktionszertifikat und ein Servicebericht sind bei der Lieferung enthalten. |
Neugerät |
neu |
Es handelt sich um einen fabrikneuen Artikel. Es gelten die Garantiebestimmungen des Herstellers sowie die gesetzliche Gewährleistungsfrist. |
Labprocure |
gebraucht |
Verantwortlich für den Inhalt dieses Geräteangebotes ist die Labprocure GmbH als Geräteinserent. Labprocure übernimmt die Haftung für die hier inserierten Angebote und für die beinhalteten Fotos und Angebotstexte. Labprocure GmbH, Bruckstrasse 58, 72393 Burladingen. |
Firma: Shimadzu
Kommentar: Dokumente für IDNR. 12275
The following illustrations and descriptions are referring to the instrument model and are drawn from brochures. They are not representating the delivery volume. The exact delivery content you will find only in the offering text.
RID-6A
Specifications
Measuring System: Deflection type
Range of refractive index: 1 to 1.75
Measuring range: 0.25 X 10 -4 to 512 X 10 -6 RIU FS, selectable in 12 steps
Noise level: 2.5 X 10 -9 RIU short term noise for water-sealed and SLOW response conditions; short term noise as defined by ASTM
Linearity: 8 X 10 -4 RIU or higher
Cell volume: 10µl
Material in contact with liquid: SUS316, quartz, Teflon
Response: 3 step selection: FAST, STD and SLOW
Controlled temperature of cell: 35°C (Thermal fuse 70°C)
Zero adjustment: Optical zero adjustment
Automatic zero adjustment
Fine zero adjustment (manual)
Auto zero adjustment range: Maximum of ±4 X 10 -4 RIU
Auto zero adjustment accuracy: Maximum of ±3 X 10 -8 RIU
Recorder: 1mV, 10mV full scale
Integrator terminal output: 0.4V/1 X 10 -4 RIU, 0.1V/1 X 10 -4 RIU
Weight: 13kg
Size: 26(W) X 16(H) X 40(D) cm
Optimum operating temperature range: 10 to 40°C (when temperature is not controlled) Power requirements: RID-6A is classified as follows according to the supply voltage:
P/N 228-16510-91 100V±10V 1A 50, 60Hz
228-16510-92 115V±10V 1A 50, 60Hz
228-16510-93 220V±20V 0.5A 50, 60Hz
228-16510-94 240V±20V 0.5A 50, 60Hz
228-16510-95 230V±20V 0.5A 50, 60Hz
DGU-3A
Outline of Degasser
The DGU-3A online degasser continuously removes gases dissolved in liquid through a special plastic membrane.
When the degasser is connected to the HPLC pump, the degasser continuously removes gases dissolved in the mobile phase without changing its composition. Consequently, the degasser improves stability and repeatability in HPLC analysis because it prevents generation of bubbles due to dissolved gases, poor delivering of the pump due to bubbles, noise an the baseline of the detector, and fluctuation of the detector baseline due to the variation of dissolved gas concentration.
The DGU-3A has three independent flow paths and the DGU-4A has two independent flow paths. The degassing characteristic per flow path and other functions are common to both the DGU-3A and DGU- 4A, and the only difference between them is the number of flow paths.

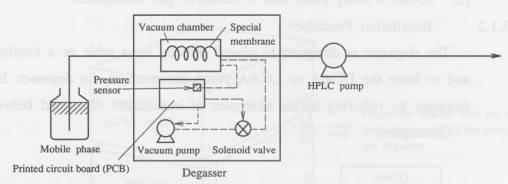

The operating principle of the degasser is illustrated below.
The mobile phase passes through the special plastic membrane mounted in the vacuum chamber of the degasser. Gases dissolved in the liquid selectively pass through the membrane into the space in the vessel because of smaller gas molecular sizes, and higher mobility than the liquid, and the close affinity of gases to the membrane. In the above process, gases are removed from the liquid to the space in the vacuum chamber and are then exhausted out of the system.
Specifications:
Degassing characteristics The concentration of residual dissolved oxygen at the outlet of the degasser is 1.5ppm max. per flow path when air-saturated ion-exchanged water at an ambient temperature of 25°C is passed through the degasser at a flow rate of 3ml/min max.
Maximum flow rate 10ml/min (water)
Internal volume About 15ml per flow path
Operating pressure 2kg/cm 2 max. (Use is limited to the suction side, i.e., inlet, of the pump. Feeding of liquid to the degasser under pressure is not allowed.)
Connecting tubes Teflon tubes of 3mm OD and 2mm ID
Wetted materials Special plastic resistant to all solvents (degassing membrane), Kel-F (connection joints), Teflon (connection tubes)
Other
Self-cleaning When the vacuum pump is started or stopped, the solenoid valve is switched over to draw in ambient air to prolong the service life of the vacuum pump.
Safety feature A device is provided to stop the vacuum pump automatically if the vacuum pump is over-heated.
(Remains in standby to allow natured cooling.)
Dimensions Width 260mm, height 140mm, depth 400mm
(Not including projecting parts)
Weight 13kg
Ambient temperature and humidity: 10 to 40°C and 40 to 85%, respectively
Storage temperature 0 to 60°C (with the flow paths dried)
Power supply: DGU-3A is available in the following modifications according to the power supply voltage.
P/N 228-24200-91 AC100V±10% 100VA 50/60Hz
P/N 228-24200-92 AC115V±10% 100VA 50/60Hz
P/N 228-24200-93 AC220V±10% 100VA 50/60Hz
P/N 228-24200-94 AC240V±10% 100VA 50/60Hz
P/N 228-24200-95 AC230V±10% 100VA 50/60Hz
Detector SPD-6AV
Specifications
Wavelength range 195 to 700nm
Wavelength accuracy ±2nm
Wavelength reproducibility ±0.5nm
Spectral bandwidth 8nm
Light source Deuterium (D 2 ) lamp (195370nm)
Tungsten halogen (WI) lamp (370700nm)
Diffraction Grating Blazed holographic type with 1200 grooves/mm
Cell volume (STD) 8µl (lmmØ X 10mm)
Cell pressure tolerance 30kg/cm 2
Materials in contact with liquid SUS 316, quartz, Teflon
Base line noise 3 X 10 -5 AU Max. at 250nm, 500nm
(using air in the cell, as a response STD)
Base line drift 1 X 10 -3 AU/hour Max. 250nm, 500nm
(using air in the sample cell)
Measurement range 0.001, 0.002, 0.005, 0.01, 0.02, 0.04, 0.08, 0.16, 0.32, 0.64, 1.28, 2.56, AUFS - intervals of selectable in 12-steps
Response 3-step selection: FAST, STD and SLOW
Corresponding to 0.05, 0.5 and 1.5 sec time constants. However, an internal switch can change the time constants to 0.1, 1.0 or 3 sec.
Zero adjustment Auto zero by pushbutton switch
Zero adjustment range Maximum of 1.4AU
Zero adjustment accuracy Maximum of ± 1 X 10 -4 AU
Recorder terminal outputs 1mV, 10mV full scale
Integrator terminal output 0.4V/AU, 0.8V/AU
Weight 14kg
Size 26(W) X 16(H) X 40(D) cm
Optimum operating temperature range 10° to 40°C
Power requirements (SPD-6AV is classified as follows according to supply voltage.)
P/N 228-15001-91 100V ± 10V 1.3A 50, 60Hz
P/N 228-15001-92 115V ± 10V 1.3A 50, 60Hz
P/N 228-15001-93 220V ± 20V 0.7A 50, 60Hz
P/N 228-15001-94 240V ± 20V 0.7A 50, 60Hz
P/N 228-15001-95 230V ± 20V 0.7A 50, 60Hz
