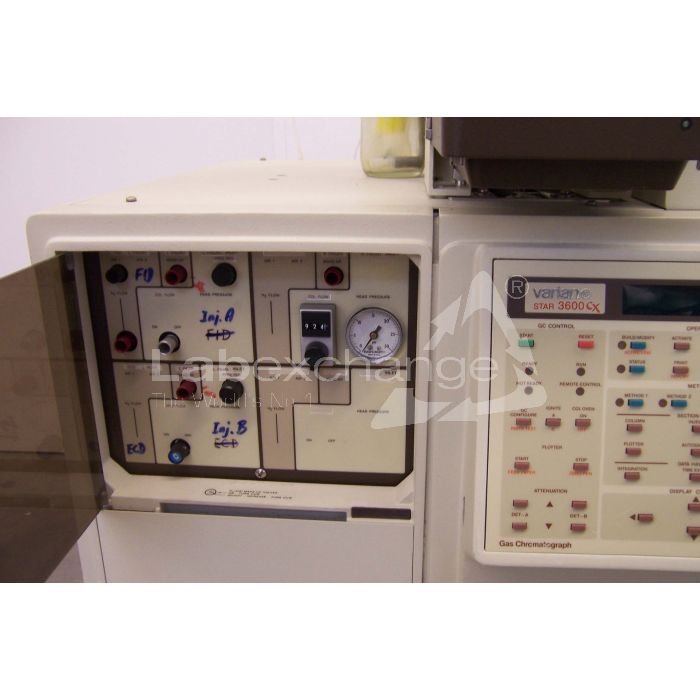

Varian Star 3600 Cx
- Mehr Informationen
- Status, Liefer- und Zahlungsbedingungen
- Technische Spezifikationen
- Weitere Produkte
Objektnummer | B00014343 |
---|---|
ID-Nummer | 014343 |
Objektbezeichnung | Varian Star 3600 Cx |
Status | Archiv |
Status, Liefer- und Zahlungsbedingungen
Geräteüberprüfung
Die gebrauchten Laborgräte werden vor der Auslieferung von der Labexchange Service GmbH überprüft. Sie erhalten voll funktionsfähige Geräte.
Versandzeit
Die angegebenen Versandzeiten sind die jeweils kürzesten für einen Artikel. Die tatsächlich Versandzeiten können im Einzelfall davon abweichen. Die endgültigen Versandzeiten werden in der Auftragsbestätigung angegeben.
Bei Bestellung/Anfrage von mehreren Artikeln bieten wir grundsätzlich Sammellieferung an. Die Versandzeit berechnet sich nach der Position mit der längsten Versandzeit. Auf ausdrücklichen Wunsch ist eine Teillieferung möglich.
Versandarten
Paketdienste, Speditionen, Selbstabholung, Lieferung durch Labexchange-Fuhrpark
Lieferinformationen
Unsere Lieferbedingungen sind grundsätzlich zzgl. Versandkosten. Angegebene Versandkosten sind zu erwarten. Falls anfallende Versandkosten nicht angegeben sind, fragen Sie diese bitte gesondert an.
Die angegebenen Fracht- und Verpackungskosten beziehen sich auf den günstigsten Transportweg und sind vorbehaltlich unvorhergesehener Kostensteigerungen. Durch unvorhersehbare Ereignisse können sich die Frachtraten und die Lieferzeiten jederzeit ändern und müssten der aktuellen Situation angepasst werden. Incoterm-Kodierung gemäß Incoterms 2010: Bei Selbstabholung EXW, bei Sendungen per Schiff CFR, per Luftfracht CPT, übrige Sendungen DAP. Hinweis für Auslandssendungen: Ein Präferenznachweis/EUR1 wird von uns nicht ausgestellt. Bei Selbstabholung/EXW aus Drittländern und der EU werden 16% MWSt als Kaution einbehalten bis wir die Gelangensbestätigung/den Verbringungsnachweis des Käufers erhalten haben.
Zahlungsbedingungen
Wir akzeptieren keine Zahlung per Letter of Credit, PayPal etc. Der Rechnungsbetrag ist in jedem Fall ohne Abzug fällig. Die Ware bleibt bis zur vollständigen Bezahlung unser Eigentum. Skonto wird nicht gewährt.
Land |
Mögliche Zahlungsarten |
Bemerkung |
DE, AT, CH |
Rechnung, Vorkasse, Kreditkarte |
Eine Zahlung per Rechnung ist nur für Firmenkunden möglich. |
NL, BE, LU |
Rechnung, Vorkasse, Kreditkarte |
Eine Zahlung per Rechnung ist nur für Firmenkunden möglich. |
Alle weiteren Länder |
Vorkasse, Kreditkarte |
|
Es gelten unsere Allgemeinen Verkaufs-, Lieferungs- und Zahlungsbedingungen. Diese finden Sie hier. Zwischenverkauf, sowie Irrtum und Preisänderungen sind vorbehalten.
Statusdefinition
Alle Artikel sind gebrauchte Artikel, es sei denn ein Artikel wird explizit als Neugerät aufgeführt.
Status |
Zustand |
Bemerkung |
Sofort verfügbar |
gebraucht |
Der Artikel wurde bereits überprüft und befindet sich in einem einwandfreien Zustand. Er kann direkt an Sie versendet werden. |
Lagergerät |
gebraucht |
Der Artikel befindet sich in unserem Lager. Unsere Techniker werden den Artikel vor der Auslieferung überprüfen. Sie erhalten voll funktionsfähige Artikel. |
Anbieter |
gebraucht |
Der Artikel befindet sich noch beim Anbieter. Nach Ihrer Bestellung wird er von uns angekauft, überprüft und an Sie versendet. Ein Funktionszertifikat und ein Servicebericht sind bei der Lieferung enthalten. |
Neugerät |
neu |
Es handelt sich um einen fabrikneuen Artikel. Es gelten die Garantiebestimmungen des Herstellers sowie die gesetzliche Gewährleistungsfrist. |
Labprocure |
gebraucht |
Verantwortlich für den Inhalt dieses Geräteangebotes ist die Labprocure GmbH als Geräteinserent. Labprocure übernimmt die Haftung für die hier inserierten Angebote und für die beinhalteten Fotos und Angebotstexte. Labprocure GmbH, Bruckstrasse 58, 72393 Burladingen. |
Firma: Varian
Kommentar: Dokumente deut./engl.
Nachfolgende Abbildungen und Beschreibungen sind modellbezogen und aus Prospekten entnommen.
Sie geben nicht den Lieferumfang des Systems wieder.
Den exakten Lieferumfang entnehmen Sie bitte aus dem Angebotstext.
Durch das Beibehalten einiger der beliebtesten Ausstattungsmerkmale des Varian GC 3700 und durch zusätzliche Automatisierungsmöglichkeiten, steigert der Star 3600 CX mit seinen Multi-lnjektoren und Multi-Detektoren beträchtlich die Produktivität. Mit seinem größten und komfortabelsten Säulenofen in der Industrie ist der 3600 CX die Basis für spezielle Systeme, wie z.B. Gasanalysatoren. Die Möglichkeit, 2 automatische Probengeber 8200 CX gleichzeitig betreiben zu können, ermöglicht es, den Probendurchsatz zu verdoppeln .
Der Multi-Modus GC Star 8200 CX Autosampler mit automatisierter "Sandwich"- Injection vermeidet die wichtigste Ursache für Probendiskriminierung. Optimiert für die Spurenanalytik, für kleine Proben-volumina und geringste Probenverluste, ist er der beste Autosampler der Industrie. Eine dynamische Spülung eliminiert Probenverschleppung und Varians neuer AutoDrive ermöglicht automatische Probenaufgabe in unterschiedliche Injektoren und damit höheren Probendurchsatz mit nur einem GC.
STAR 3600 CX GAS CHROMATOGRAPH
Star 3600 CX shares the same specification as the Star 3400 CX, with the following differences:
Capability to control up to two 8200 CX AutoSamplers an one Star 3600 CX.
Electronic pressure, linear velocity, and split ratio displays available as an option.
Seven Heated Zones:
Column Oven dimensions allow for simple side by side Installation of columns.
Oven cool-down from 250°C to 50° in 7 minutes, including stabilization.
Dimensions: 25.4 cm x 38.1 cm x 22.9 cm
10 x 15 x 9 inches
Two injector ovens can be installed an one Star 3600 CX. Each injector oven can accomodate up to 2 injectors.
Two detector ovens can be installed an one Star 3600 CX. Each detector oven can accomodate up to 2 detectors.
Auxiliary heated zone is isothermal or programmable from ambient to 420°C. Auxiliary zones can accomodate valves, injectors, or detectors.
Heated Pneurnatics are standard.
Dimensions (H x W x D)
40.6 x 76.2 x 61 cm
16 x 30 x 24 inches
Power Requirements
+/- 10%, 110, 120 Volt, 60 Hz, 20 amp
+/- 10%, 220, 240 Volt, 50 Hz, 10 amp
8200 CX AUTOSAMPLER
Peak area precision <1.0% typical for all injector types except split/splitless injectors, with precision of <1.5%, 1 µl sample volume.
Standard sampling mode is the sandwich injection (solvent flush) technique. Other sampling modes include optimized parameters for neat, viscous, and volatile samples. Programmable parameters include air gap selection, solvent plug volume (0-3 µL), sample volume
(0.2 to 5.0 µL in 0.1 µL increments).
Minimum sample volume of 10 µL in microvials; 300 µL in standard 2 mL vials.
Sample waste < 0.1 9L µL at injection, sandwich mode.
Sample capacity 48 vials, either screw cap or crimp top.
Sample carryover < 0.05% typical with default dynamic purge wash parameters; < 0.01% achievable by optimizing programmable parameters such as number of solvents (two maximum) and purge time.
Programmable features
8200 parameters are entered via the GC Star CX Chromatograph keyboard or via Star Workstation.
Needle Depth in Vial: 0-100%
Plunger lnjection Speed: 0.2-10 µL/sec
Plunger Uptake Speed: 1.0-5.0 µL/sec
Plunger Pause Time: 1-10 sec
Hot needle time (pre-inject needle residence in injector): 0-1 minutes
Residence time (post-inject needle residence in injector): 0-10 minutes
Random access capability with Star Workstation control.
Power requirements
90 VAC to 264 VAC total operating range; includes four ranges; 100, 120, 220, 240 VAC. Each can operate at +/- 10% nominal value.
IBDH INBOARD DATA HANDLING
Single channel integrator, with 40 Hz maximum sampling speed, fully programmable.
Up to 4 baseline compensation methods may be stored.
Recalculation and recalibration capabilities standard.
Calculation selection: Area percent, normalized percent, internal standard, external standard, multiple reference peaks.
Plot characteristics include: .001 minute retention times, peak start/peak end, Chart speed, detector attenuation, detector range changes, and peak width updates.
Report Formats include: Short and long forms, run lag, error log.
DETECTORS
ECD
Constant current, pulse modulated concentric tube design, with 63 Ni toll of 15 mCi, nominal.
Detectivity < 50 fg/sec lindane, N 2 carrier.
FID
Detectivity 2 pg C/sec
Linearity 10 7
Standard .020 inch ID flame tip is patented inert ceramic composition; a .010 inch tip is also available.
Unique flame-out algorithm halte automation in the event the flame is extinguished.
TCD
Dual channel design prevents filament damalte due to accidental exposure to air.
Linearity 10 6 (butane)
Detectivity 3 x 10 -10 g/mL (butane)
Flow range 5-250 mL/min
TSD
Selective for nitrogen and phosphorus compounds, the TSD has bead current set and stored in the chromatographic method.
Bead current may be turned on or off during chromatography.
Selectivity:
N/C > 5 x 10 4
P/N > 2
Detectivity:
N: < 100 fg N/sec (azobenzene)
P: < 100 fg P/sec (malathion)
Linearity:
N: 10
5
P: 10
4
FPD
Dual flame design to eliminate quenching of sulfur emission in a high hydrocarbon background.
Detectivity:
P: < 1 pg P/sec (tributylphosphate)
S: < 100 pg S/sec (n-hexanethiol)
Dynamic range:
P: 10
5
S: 10
3
Selectivity:
S/C 10 3 to 10 6
ELCD
Selective conductivity detector especially recommended for halogens.
Halogen Performance:
Detectivity: 2.5 pg/sec (heptachlor)
Selectivity: H/C: > 10 6
Linearity: >10 6
Nitrogen Performance:
Detectivity: 10 pg/sec (azobenzene)
Selectivity: N/C: >10 7
Linearity: 10 5
Sulfur Performance:
Detectivity: 10 pg/sec (ethion)
Selectivity: S/C: >10 5
Linearity: 10 4
PID
Highly sensitive non-destructive detector, including an inert transfer line for serial connection to another detector installed on the gas chrornatograph.
Detectivity: 10 pg (benzene)
Linearity: >10 4
INJECTORS
All Star CC CX injector systems come with automatic injector switches to initiate all system functions at injection.
Upper temperature limits are user settable to prevent accidental overheating of columns.
All capillary injectors have active septum purge controls.
SPI
Septum-equipped temperature programmable injector with patented direct heating and cooling.
Injector temperature settings and programming are independent from any other heated zone.
Cryogenic capability with LCO 2 , LN 2 , or air is standard.
Three glass insert types available: high performance; 530 micron on-column; insert packed with glass wool.
Temperature programming in two ramps, three isothermal hold steps, up to 180°C/minute.
1076
Pressure-regulated pneumatics with flow controlled split ratio.
Temperature range ambient to 420°C, settable in 1°C increments.
Split ratio from 20:1 to 500:1
1077 SPLIT/SPLITLESS INJECTOR
Pressure-regulated pneumatics with flow controlled split ratio.
Temperature range ambient to 420°C, settable in 1°C increments.
Split ratio from 20:1 to 500:1
Three inserts available: open (for spiitless), fritted, and packed (for split).
Recommended for use with the 8200 CX AutoSampler.
1075 SPLIT/SPLITLESS INJECTOR
Physical specifications identical to the 1076 and 1077.
Pressure regulated pneumatics with split flow regulated by a variable flow restrictor.
Recomrnended for non-automated split/splitless applications and for enhanced conservation of carrier gas.
UNIVERSAL ON-COLUMN INJECTORS FOR PACKED AND 530 M1CRON COLUMNS
1040 Injector
Used in applications that require oncolumn injections into 1/8 inch or 1/4 inch packed columns.
Temperature range ambient to 420°C in 1°C increments.
Digital flow meters are standard, with flow range of 0-100 ml/min.
1041 Injector
The 1041 Injector is used for 530 micron, 1/4 inch, and 1/8 inch columns. Physical specifications are Idendeal to the 1040, with the tollowing additions:
Flow range optimized for 0-10 ml/min, easily modified for 0-100 ml/min flows for packed coiumn applications.
The 1041 includes a detector make-up gas pneumatics to optimize for low-flow 530 micron applications.
UNIVERSAL FLASH INJECTORS FOR PACKED COLUMN AND 530 MICRON COLUMN INJECTIONS
1061 Injector
Reeomenried for applications that
require large injection volurnes or for injections of samples with non-volatile materials.
Compatible with 1/4 inch, 1/8 Inch, and 530 micron columns.
Temperature range from ambient to 420°C settable in 1°C increments.
Includes a glass injector insert that may be removed from the top of the injector.
Includes detector make-up gas
pneumatics to optimize for low-flow 530 micron applications.
1060 Injector
The 1060 injector has Identical physical specifications as the 1061.
Digital flow controllers inciuded, with a flow range of 0-100 mL/min.
Compatible with 1/4 inch and 1/8 inch columns.
