manufacturer :       Dionex

model :                   AS 50

annotation :           Dokumente engl.

The Dionex Autoselect AS50 Autosampler precisely delivers from 1.0 to 99.9 µL (in 0.1 µL increments) or 100 to 1000 µL (in 1 µL increments) of sample to an injection valve.

Two types of trays are available for sample vials: one for 2 mL vials and one for 10 mL vials. During sampling, the tray remains stationary and a sampling needle arm moves from vial to vial. Up to 99 injections can be taken from each vial.

The AS50 can be controlled locally, from the front panel keypad and display, or remotely, from a Dionex workstation. The workstation consists of a computer with a Dionex DX-LAN Interface card and PeakNet software installed. Limited remote control is also available, using TTL and relay signals.

The AS50 can be configured with PEEK flow paths and components for ion chromatography (IC) applications, or with stainless steel flow paths and components for high-performance liquid chromatography applications (HPLC).

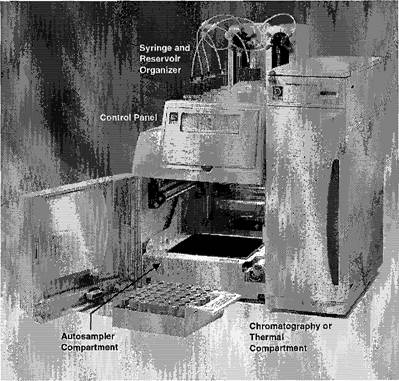

Control Panel

The control panel contains a liquid crystal display (LCD) and membrane keypad (See Section 2.2). The control panel permits manual control of all AS50 functions.

Autosampler Compartment

The autosampler compartment contains a stationary sample vial tray and a sampling needle arm that moves from vial to vial during operation (see Section 2.3).

Sample Temperature Control Option (Not Pictured)

The optional sample temperature control unit mounts under the autosampler and provides uniform heating and cooling of the vial tray. See Seetion 2.3.2 for details.

Syringe and Reservoir Organizer

The organizer an top of the autosampler Nolds the sample syringe, the flush liquid reservoir, the optional prep syringe, and the optional reagent reservoir(s). See Section 2.4 for details_

Chromatography Compartment Option

The optional chromatography compartment houses the components required for a single- or dual-column chromatography system. The components, such as the analytical column(s), cell(s), and suppressor(s), raust be ordered separately from the AS50. See Section 2.6 for details.

Thermal Compartment Option

A version of the chromatography compartment is available that provides heating and cooling of the chromatography components. See Section 2.6.2 for details.

Injection Valve

When the AS50 is configured without a chromatography or thermal compartment, the injection valve is installed in the autosampler compartment. When the AS50 is configured with one of the compartments, the injection valve is installed in the compartment. See Section 2.5 for details.

Specifications Autosampler

Electrical

Main Power        100 Vac to 240 Vac, 50/60 Hz; 6 amps. The AS50 power supply is main voltage auto-sensing and requires no adjustment.

Fuses                 Two 3.15 amp fast-blow IEC127 fuses (P/N 954745)

Environmental/Physical

Ambient Operating       10 °C to 40 °C (50 °F to 104 °F)

Temperature

Operating Humidity      10% to 95% relative humidity, non-condensing

Decibel Level               <60 db (at "A WEIGHING" setting)

Dimension                    58 cm high x 30 cm wide x 46 cm deep (23 in x 12 in x 19 in)

Weight                          < 30 kg (< 65 Ib )

Valses (Optional)

Injection              Two-position, six-port, electrically-activated Rheodyne valve

                          IC version: PEEK with Tefzel® rotor seal

                          HPLC version; Stainless steel with Vespel® rotor seal

Column              Two-position, ten-port, elecnicaLly-activated Rheodyne valve

Switching           IC version: PEEK with Tefzel rotor seal

                          HPLC version: Stainless steel with Vespel rotor seal

Injection

Injections Per               1 to 99

Vial

Vial Sizes                     0.3 mL polymer vials (P/N 055428, package of 100)

Available                       1.5 mL glass vials (P/N 055427, package of 100)

             10 mL PolyVials (P/N 055058, package of 100)

Variable Volume           1 to 100 µL in 0.1 µL increments

Range                          100 to 1000 mL in 1 µL increments

Injection Loop               IC version: 25 µL standard; other sizes are available

Size                              HPLC version: 20 µL standard; other sizes are available

Sample Temperature Control Unit (Optional)

Temperature                4 °C to 60 °C in 1 °C increments at 24 °C (75 °C) ambient, stable to

Control Range              ± 0.2 °C

Operating                     5% to 90% relative humidity, noncondensing

Humidity                       Cooling capacity is slightly reduced at high humidity

Dimensions                  65 cm high x 30 cm wide x 46 cm deep (2.75 in x 12 in x 19 in)

(Sample Temp. +

Autosampler)

Weight                          <38 kg (<81 lb)

(Sample Temp. +

Autosampler)

Chromatography Compartment (Optional)

Dimensions                  50 cm high x 17.5 cm wide x 40 cm deep (20 in x 7 in x 16 in)

Weight                          9 kg (20lb)

Thermal Compartment (Optional)

Dimensions                  50 cm high x 173 cm wide x 40 cm deep (20 in x 7 in x 16 in)

Weight                          18 kg (40lb)

Temperature                10 °C to 40 °C in 1 °C increments, stable to ± 0.2 °C

Control Range

(IC Mode)

Temperature                10 °C to 80 °C in 1 °C increments, stable to ± 0.2 °C

Control Range
(HPLC Mode)

Ambient                        10 °C to 40 °C (50 °F to 104 °F)

Operating

Temperature

Delay Volume              < 100 µL
