Firma:              Foss

Modell:            NIR-System

Kommentar:   Dokumente engl.

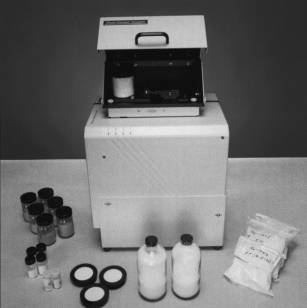

Direct Contact Analyzer

Direct Contact Analyzer consists of:

Monochromator (System II) (Model 6500 monochromator for 400-2500nm coverage)

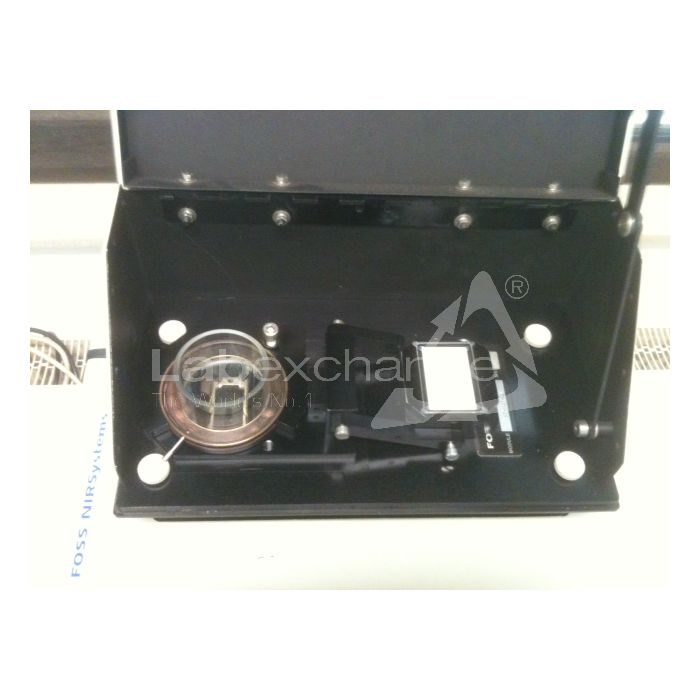

Reflectance module

Horizontal setup module

Sample centering iris

Vision software for material identification, qualification, and quantification

Features and Benefits

•            Non-destructive analysis of solids and liquids

•            Direct analysis through unopened containers, such as bags, beakers, bottles, or vials

•            No sample preparation, no hazardous reagents, no waste

•            Raw material identification and qualification

•            Final product assay

System Description

The Direct Contact Analyzer offers rapid chemical analy­sis and physical parameter testing without opening the sample container. The analyzer accepts unopened con­tainers such as plastic bags, beakers, vials, and bottles.

Operation is based an NIR (near-infrared) technology which is completely non-destructive. The Direct Contact Analyzer returns each sample unharmed for further test­ing, if wanted. The Direct Contact Analyzer is a nonfiber-based system which allows for use of the entire

wavelength region to 2500 nm. And, the NIR measure­ment process is completed in about 45 seconds. Imagine the time savings and manufacturing efficiency when comparing NIR with HPLC, FTIR, and Karl Fischer methods.

The Direct Contact Analyzer is a true multipurpose ana­lyzer and can be used to analyze powders, liquids, or finished dosage forms without changing the instrument. Scanning from 400nm to 2500nm permits measurement of product color variance in every test, without extend­ing the analysis time.

Measure incoming raw materials for identification and qualification in seconds. The NIR method will eliminate the need for most other tests, and reduce the time in quarantine from days to minutes. And because NIR is a "green" technology there aren't any solvents or dispos­al Problems. Nothing is consumed, the sample remains completely uncontaminated, and there is nothing to dispose of after the test.

Specifications

Scan Rate                               1.8 Scans/second

Wavelength Range                 400-2500nm (Wide-Range Mode)

Wavelength Accuracy             ±0.3nm (Basis: Polystyrene Standard peaks 1100-2500nm)

Wavelength Repeatability      ±0.010nm (Standard Deviation of 10 consecutive scans 1100-

                                               2500nm)

Noise (peak-to-peak)               <2.0 (400-700nm)

                                               <.25 (700-2500nm)

Noise (RMSAvg)                      <.2 (400-700nm)

                                               <.02 (700-2500nm))

Spectral Bandwidth                 10 ± 1 nm

Photometric Range                 3.0 Au (1100-2500nm)

Linearity (2% to 99%               +1.0%

reflectivity or transmissivity)

Stray Light                               <0.1% at 2300nm

Operating Temp. Range         15°C to 33°C (60°F to 92°F)

Power Consumption               150 watts (maximum)

Dimensions:

Width:                                      15,25” (388mm)

Height:                                     21.5” (546mm) from bench to top instrument

Depth:                                     11,6” (295mm) front to back

Weight.                                    42.0 pounds (18.9kg)

Minimum Computer Requirements

Pentium processor, 32 Mbyte RAM, 100 Mbyte available HD space, VGA or higher Monitor,

32-bit Windows operating system (Windows 95 or NT 4.0), 3.5 Floppy disk drive, serial port and parallel port.

SmartProbe Analyzer

This system can analyze powders and liquids directly in less than one minute. It can perform quantitative analysis, identification, and qualification of mate­rials easily, quickly, and accurately.

The SmartProbe uses near-infrared . (NIR) spectral energy to illuminate the sample. By measuring the energy reflected off the sample, chemical Infor­mation and composition can be assayed.

NIR measurement is inherently non-destructive, so the sample is available for later use, re-analysis, or verification. Sample preparation is not required, which saves time, enhances accuracy and precision, and uses no chemicals.

The SmartProbe, used in conjunction with fiber optic technology, provides a simple and convenient method for direct analysis of many materials. The SmartProbe Analyzer is available with standard fiber lengths of 2 meters and 3 meters.

Menu-driven, validated Vision® Spectral Analysis Software permits use of the SmartProbe for identification, qualification, and quantitative measurement. Features such as password security, automatic data logging, and a full audit trail meet the rigorous requirements of regulated industries.

The SmartProbe handle contains an easy-to-read LED panel to guide the Operator through use of the system for sampling. Because the Computer may be two to three meters away from the material being sampled, this panel indicates when the system is ready (or is performing) the sampling functions. Use is explained in section 5.0.

This SmartProbe manual is designed to guide the user through instrument assembly and set-up, and to successful communication with the host PC. Full instruc­tions for use of Vision are found in the manual accompa­nying the software, and in help screens.

1.0 Introduction

Thank you for purchasing the

SmartProbe manufactured by FOSS. This system can analyze powders and liquids directly in less than one minute. It can perform quantitative analysis, identification, and qualification of mate­rials easily, quickly, and accurately.

The SmartProbe uses near-infrared (NIR) spectral energy to illuminate the sample. By measuring the energy

reflected off the sample, chemical Infor­mation and composition can be assayed.

NIR measurement is inherently non­destructive, so the sample is available for later use, re-analysis, or verification. Sample preparation is not required, which saves time, enhances accuracy and precision, and uses no chemicals.

LED indicators on the SmartProbe handle provide operator

Information about the analyzer and sample results.

Dimensions

Width:              17,5” (445mm) with SmartProbe in holster

Height:             15,0” (381mm) from bench to top of SmartProbe

Depth:              21,0” (534mm) front to back, not counting cords

Weight:            40.4 pounds (18,2kg)
