manufacturer:       Varian

model:                   Liberty AX II

annotation:           Dokumente engl.

Liberty Series II

Specifications

Environmental

For Optimum analytical performance it is recommended that the ambient temperature of the laboratory be between 20-25 °C and be held constant to within ±2 °C throughout the entire working day.

Suitability

The Instrument is designed for indoor use only. It is suitable for the following categories:

q          Installation category il

q          Pollution degree 2

q          Safety Class 1 (EN 61010-1) 1.3.2 Power

Power

All power supplies should be single phase AC, 3 wire system (active, neutral, ground or two active and ground) and should be terminated at an appropriate connection receptacle that is within reach of the system power Gable assembly.

Connections

Low power mains inlet coupler: 6A 250 VAC IEC type

Low power mains power cord:

  Australia 10A 250VAC Complies with AS3112

  USA    10A 125VAC Complies with NEMA L6-15P

  Europe 6A 250VAC Complies with CEE7 sheet vii or

N FC61.303VA

High power mains inlet:

  Flying lead 2 m (6 ft 6 in) long

  3 core, single phase, 3/74/0.3 mm, 6 mm ² (approx 10AWG)

High power mains power cord connector:

Connection to be made according to local regulations.

Other electrical connections:

IEEE 488

Chart recorder Output, 3.5 mm tip/sleeve jack

Fuses

1FS1 & 1FS2 T6.3AH250V, IEC 127 sheet 5, 5 x 20 mm

1C131              Circuit breaker 30A Fast trip

Note     For safety reasons, any other internal fuse or circuit breaker is not Operator accessible, and should only be replaced by Varian authorized personnel.

Fuse Information an the rear of the Instrument is the most up to date.

Gas supplies

Liquid or gaseous argon may be used with the Liberty Serien 11 System. The use of liquid argon is recommended, since it is purer, more convenient and cheaper per unit volume.

Connection:

1.8 m (6 ft) length of 6.3 mm (1/4 in) ID hone with 9/16 in-18UNF thread fitting.

Other gas connections:

Torch compartment: barb type connector for argon torch main flow.

Sample compartment: push-on connector for argon torch auxiliary flow

push-on connector for argon nebulizer

Water supply

                                                                      Radial                        Axial

Cooling requirements                                    0.2kW                         1 kW

Minimum flow rate                                          0.5 L/min                    1.6 L/min

Inlet temperature, recommended                 20 °C                          20 °C

Inlet pressure, minimum                                55 kPa (8 psi)             55 kPa (8 psi)

Inlet pressure, maximum                               400 kPa (60 psi)        400 kPa (60 psi)

Inlet and outlet connection for both radial and axial systems:

1.8 m (6 ft) length of 6.4 mm (1/4 in) ID hose.

Weights and dimensions

Weight

Packed                 325 kg (717 lb)

Unpacked             226 kg (500 lb)

Dimensions (W x D x H)

Packed                 1660 x 960 x 1420 mm (66 x 38 x 56 in)

Unpacked             1380 x 710 x 1100 mm (55 x 28 x 42 in)

AGM-2 Module

At wavelengths below 189 nm, oxygen in the optical system of the Liberty ICP-AES beginn to absorb the energy emitted from the plasma. To perform measurements below 189 nm requires the purging of the optical system with an inert gas. This removes any oxygen present, allowing the far UV wavelengths to be used.

The Auxiliary Gas Module (AGM-2) is an accessory designed to extend the wavelength range of the Liberty 100 ICP-AES spectrometer. lt does this by purging both the monochromator and the pre-optics snout assembly with nitrogen. This extends the wavelength range down to 175 nm, allowing the Liberty 100 to be used for the determination of important additional elements, such as sulfur.

The Liberty 100, fitted with the AGM-2 accessory is the best alternative if the far UV region is used infrequently. The Liberty 200 vacuum monochromator provides the best detection limits and stability in the far UV if that region is often used.

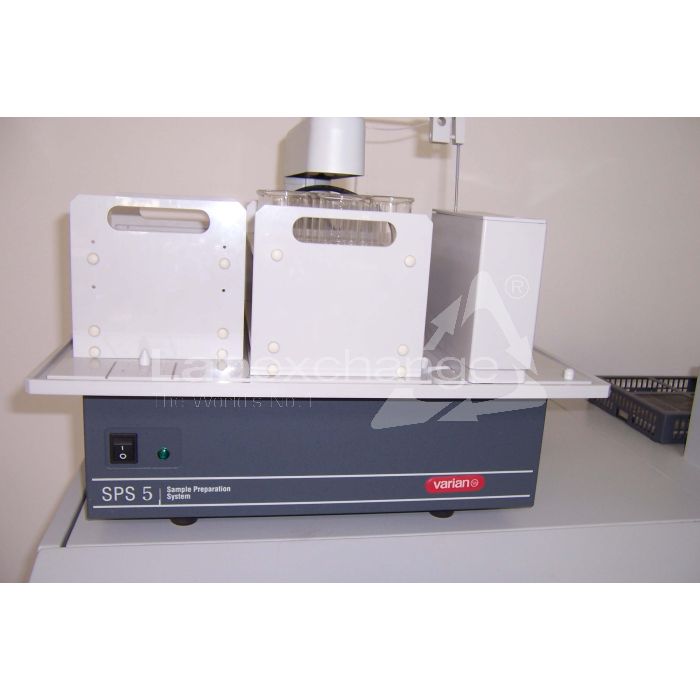

SPS-5 Autosampler

The SPS-5 Autosampler is designed for use with several of Varian's Instruments:

q          Liberty ICP-AES spectrometers

q          Cary UV-VIS-NIR spectrophotometers

q          SpectrAA spectrometers

This manual describes how to unpack and install the sampler. For details on the software Interface to the sampler you should consult the relevant Instrument manual.

The SPS-5 can fit up to 500 samples, with the extension platform fitted and five type 10 racks. Several different rack types are available. Three racks may be fitted on the standard unit. The extension platform must be fitted to allow five racks to be used.

The SPS-5 features the automatic Varian Magnetic Rack Recognition system. This means that the SPS-5 knows which rack type is in each rack position. This is done with a magnetic identification system.

A cover is available for use with corrosive or dangerous samples.

Note Moving the SPS-5 arm or probe arm of the SPS-5 during Operation will sause a loss of alignment. To realign, reset the SPS-5 as described in section 3.4.

Specifications

Environmental

Your accessory is designed for indoor use only. lt is suitable for the categories stated on the front of this manual.

The site should be selected to avoid dusty or corrosive atmospheres.

Note     Extra maintenance may be required on the SPS-5 if it is operated in excessively dusty or corrosive conditions.

Condition                              Attitude                 Temp                  Humidity (%RH)

                                                                            t(°C)                     non- condensing

Non-operating                        0-2133 m                5-45                      20-80

(transport)                              (0-7000')

Non-operating &                     sea level                 40                         90-95
meeting dielectric

strength tests

Operating but not                   0-2000 m                5-31                      ≤80

necessarily meeting               (0-6562')                 31-40                    ≤(80-3.33(t-31)} performance spec's

Operating within                     0-853 m                  10-35                    8-80

performance                          (0-2800')

specifications                         853-2133 m            10-25

(2800-7000')

Power

Voltage             100, 120, 220 or 240 volts AC ±10%

230 +14% -6% volts AC

230 +6% -14% volts AC

Frequency       50-60 Hz ± 1 Hz

Consumption   ~ 80 VA

Electrical connections

Mains inlet coupler: 6A 250VAC IEC type

IEEE 488

Accessory, diluter: 15 way D-range type.

Mains power cord connector:

  Australia 10A 250VAC Complies with AS3112

  USA    10A 125VAC Complies with NEMA 5-15P

  Europe 6A 250VAC   Complies with CEE7 sheet vii or

NFC61.303VA

Fuses

T2AH250V IEC 127 sheet 5, 5 x 20 mm (220-240 VAC)

T2.5AH250V IEC 127 sheet 5, 5 x 20 mm (100-120 VAC)

Note     For safety reasons, any other internal fuse or circuit breaker is not Operator accessible, and should be replaced only by Varian authorized personnel.

Fuse Information an the rear of the Instrument is the most up to date.

Weights and dimensions

Weights

                                      Packed                       Unpacked

                                      kg (1b)                        kg (lb)

SPS-5                            35 (77)                        19 (42)

Diluter                             5 (11)                          3 (7)

Dimensions (W x D x H)

                                      Packed                       Unpacked

                                      mm (in)                      mm (in)

SPS-5 only                     580 x 670 x 660          530 x 450 x 600

                                      (23 x 26 x 26)             (21 x 18 x 24)

diluter only                      300 x 180 x 570          160 x 80 x 410

                                      (21 x 7 x 22)               (6 x 3 x 16)

SPS-5 with diluter                                            530 x 510 x 600

(arm raised)                                                     (21 x 20 x 24)

SIPS-5 with rear                                               530 x 600 x 600

rack extension                                                  (21 x 24 x 24)

(arm raised)
