Firma:              Motic

Modell:            DMW-143-N2GG

Kommentar:    Dokumente engl.

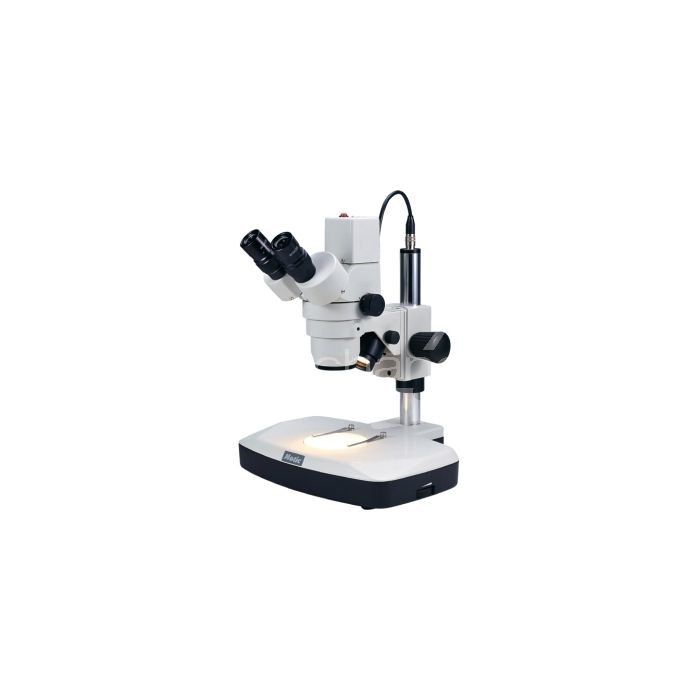

Motic DMW143-N2GG digital stereo microscope

Motic digital microscope with built-in 1/3-inch CCD, trinocular head 45 degree inclined, 3rd tube as a built-in CCD camera, ideal for laboratories and hospitals.

Features

Digital stereo microscope with built in 1/3" CCD
Trinocular head 45° inclined (3rd tube as a built in CCD camera)
Widefield eyepiece WF10X / 20mm
Zoom objective range 1:4
Incident halogen light 12V/15W with intensity control
Transmitted halogen light 12V/10W with intensity control
Pole type stand
Switching power supply 100-240V (CE)
White balance available
Motic Images Plus 2.0 multi-language version

Motic Images Plus 2.0 ML software

Every digital Moticam comes complete with full featured professional application software. This software lets you truly explore the power of your microscope by enabling you to correctly analyze and quantify your image. The generous features include, but are not limited to, the following:

Capture: Capture real time still, moving or time-lapse images with the simple click of your mouse

Measure and export: Once you have calibrated the system using our supplied calibration slide, you can make accurate measurements of your sample. All your measurements can be exported to other worksheets such as Excel by clicking only one button.

Share through Internet: The built in Distance Image Sharing (DIS) module allows you to connect to another digital microscope through the internet. Based on teleconferencing principles, you can broadcast your microscope's live streaming video over the internet while viewing the other party's stream.

Combine and group: Motic's Amalgamation feature allows you to combine different images into one single picture. Several heuristics are available giving the user complete control. This feature is especially useful when combining images taken at different focal depths.

Enhance: Process the image with a variety of filters, or adjust brightness contrast and colour. You can also add narration, sounds or music to each image.

Record sound directly: Using this tool, each image can be enhanced with sound on a particular spot on the image. This is great for creating learning slides or completing group projects.

Multi Languages: This software allows the user to select between different languages. Available: English, German, French, Spanish, Portuguese, Italian, Korean, Arabic, Chinese .

Count and export: This feature automatically counts the objects selected in a particular area of view. All details of the dimensions can be exported to an Excel spreadsheet through the simple click of the mouse.

Create reports: Create detailed reports on your findings in the same application program. Simply drag and drop images from your microscope into your document. This is an easy way to create examination papers, findings and reports.

Optional accessories

Eyepieces (per piece):
51.020.141 Widefield eyepiece WF 5X / 22 mm
51.020.142 Widefield eyepiece WF10X / 20 mm
51.020.144 Widefield eyepiece WF15X / 12 mm
51.020.145 Widefield eyepiece WF20X / 11 mm

Mircometer Eyepieces:
51.020.143 Micrometer eyepiece WF10X / 20mm, 100 divisions in 10mm

Additional Objectives:
SG01.T14203 Objective 0.35X
11.143.161 Objective 0.5X
11.143.162 Objective 0.75X
11.143.163 Objective 1.5X

Darkfield Equipment:
51.030.261 Darkfield condenser with iris diaphragm
51.030.263 Jewellery clamp

Spare parts :
51.020.251 Black/white stage plate diameter 80mm
51.020.252 Frosted glass stage plate diameter 80mm
11.143.255 Blue frosted filter
12.220.303 Dust cover (size C)
51.020.254 Eyecups (pair)
SB99.0181 Aluminium box

Spare bulbs:
SE06.0101 Halogen bulb 12V / 15W (incident)
53.100.259 Halogen bulb 12V / 10W (transmitted)

Motic microscopes

Motic microscopes are sold worldwide into education, medical, research and other industries where microscopy is required. Motic pride themselves on quality and satisfaction.

Traditional, classic line, biological compound upright, inverted, stereo and digital microscopes are available for a wide range of applications including microscope field kits to introduce young children to microscopy, to high end microscopes for laboratory research.

Motic also produce the Moticam range of digital cameras that can be used with almost any microscope so that magnified images can be captured, edited and included in PowerPoint presentations or displayed on LCD monitors, TVs or plasma screens for teaching hospitals and laboratories.

Specifications

Microscope

Eyepieces                        WF10X/20mm an with diopter control

Zoom Optics                    1x-4x Greenough Zoom system

Standard Magnification     Zoom from 10x to 40x

Stage                                Small Footprint Pole Stand with reversible and frosted stage plates & clips

IlIumination                       12V/20W Halogen top and bottorn illumination with

                                        dimming control

Power Supply                   Attachable: Universal Voltage: Power Supply

                                        110V~240V

Camara

Chip Configuration           Built-in 1/3" Multiple-Output Analog/Digital Imaging Chip

Data Output                      Hi-Speed USB2.0 640x460 pixels.; S-Video & RCA 480TV Lines

Power Supply                   Through Microscope Power Supply with separate switch for camera

Included Software            Motic Images Plus. 2,0ML for Windows & Motic Images

                                        Plus 2.0 for Macintosh 0SX

Included Accessories       Calibration Slide for accurate measurements; Dust Cover; Immersion Oil

Minimum Specifications   Windows: 2000/XP; 256MB RAM; P4; Built-in USB2.0

                                        Macintosh: OSX; 256MB RAM; G4; Built-in USB2.0
