Firma:              Agilent

Modell:            G 1310 A

Kommentar:   Dokumente engl.

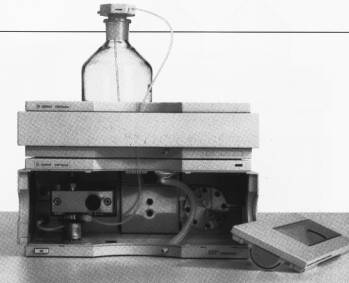

The Agilent 1100 Series isocratic pump

The isocratic pump is a work-horse designed to meet the needs of QA/QC applications:

•            Long Instrument uptimes that reduce operating and maintenance costs.

•            A wide flow range of up to 10 ml/min for broad HPLC work, including semipreparative separations.

Built-in early maintenance feedback—EMF, built-in seif-test routines and task-oriented online help are valuable features for QA/QC Operation.

•            Upgradeable to quaternary pump

One pump head containing dual pistons in-series and the active inlet valve for excellent baseline stability and reproducibility of retention times and peak areas

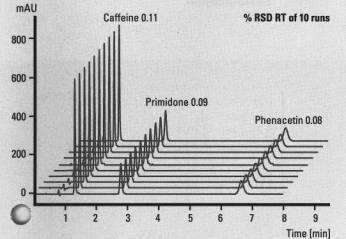

The isocratic pump delivers stable retention times, run after run, day after day.

Column:           125 x 4.0 mm ODS

Mobile phase: Water/acetonitrile 85:15

Flow rate:         1.5 ml/min

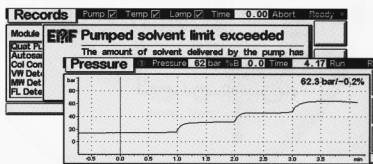

Built-in leak test with graphical presentation of pressure profile ensures reliable Operation

Full programming capabilityfor the isocratic pump

Intelligent method sequencing includes built-in shutdown methods to help reduce solvent costs and prolong column lifetime by flushing after a series of runs

Specifications

Flow precision:                   < 0.3 % RSD (typically <0.15%RSD)

Compressibility                   User-selectable, based

compensation:                    an mobile phase com­pressibility

pH range:                            1.0—12.5 recommended

Control:                               1100 Series control module or optional control by Agilent ChemStation for HPLC

Communications:               Analog output: 2 mV/bar, for pressure monitoring, CAN-Bus, HP-IB, RS 232C, APG-remote standard. Optional 4 ex­ternal contact closures.

Safety and

maintenance aids:             Extensive diagnostics, error detection and display, leak detection and Safe leak handling, low voltages in major maintenance areas.

Housing:                             All materials recyclable

Env ironment:                      4—55 °C constant tempera­ture, <95 % humidity (non-condensing)

GLP features:                     Early maintenance feed­back (EMF) for continuous tracking of instrument usage in terms of solvent usage with user-settable limits and feedback mes­sages. Electronic records of maintenance and errors

Hydraulic System:              Dual pistons in series, with proprietary servo­controlled variable stroke drive, floating pistons and active inlet valve

Flow range:                        Setpoints from 0.001 to 10.0 mI/min, in 0.001 ml/ min increments

Pressure:                            Operating range 0—40 MPa (0—400 bar, 0—5880 psi) up to 5 mI/min; 0—20 MPa (0—200 bar, 0—2950 psi) up to 10 mI/min

Gradient formation:            Low-pressure quaternary mixing and gradient capa­bility using proprietary high-speed proportioning valve. Delayvolume 800—1100 µl, dependent an back pressure.

Composition                       < 0.20 % SD,at 0.2 and

precision:                            1 ml/min

Dimensions (hxwxd):         140 x 345 x 435 mm (5.5 x 13.5 x 17 inches)

Weight:                               11 kg (25 Ibs)
