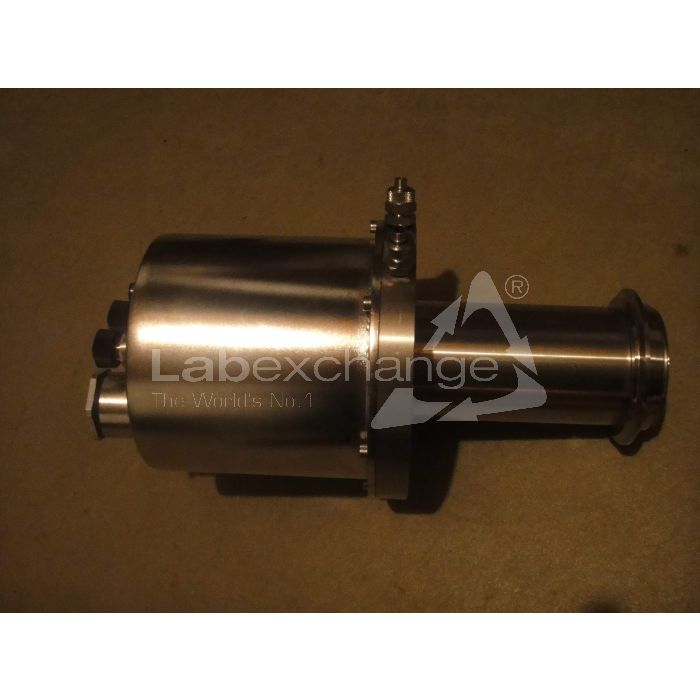

Schmidt Haensch IPR 3
Objektnummer | B00018951 |
---|---|
Seriennummer | 018951 |
Object Naam | Schmidt Haensch IPR 3 |
Status | Archiv |
Status, leverings- en betalingsvoorwaarden
Apparatuurcontrole
De gebruikte apparatuur wordt voorafgaand aan levering gecontroleerd door Labexchange Service GmbH. U ontvangt volledig functionerende apparatuur.
Verzending
De vermelde verzendtijden zijn telkens de kortste voor een artikel. In bepaalde gevallen kunnen de daadwerkelijke verzendtijden daarvan afwijken. De uiteindelijke verzendtijden worden aangegeven in de opdrachtbevestiging.
In de regel bieden we combinatieleveringen aan. Levertijden zijn afhankelijk van het artikel met de langste levertijd. Deelleveringen zijn mogelijk tegen een toeslag.
Verzendmethoden
Koeriersdiensten, transportbedrijven, zelf afhalen, levering door Labexchange wagenpark
Informatie levering
De prijzen zijn exclusief verzendkosten. De genoemde verzendkosten zijn de te verwachten kosten. Afwijkingen zijn mogelijk. In het geval geen kosten voor verzending zijn gespecificeerd, vraag die dan afzonderlijk aan.
De opgegeven vracht- en verpakkingskosten hebben betrekking op de goedkoopste transportroute en zijn onder voorbehoud van onvoorziene kostenstijgingen. Door onvoorziene gebeurtenissen kunnen vrachttarieven en levertijden op elk moment veranderen en moeten ze worden aangepast aan de huidige situatie. Incoterm coderingen volgens Incoterms 2010: Bij afhalen EXW, CFR voor zendingen over zee, CPT per luchtfracht, andere zendingen DAP. Opmerking: We geven geen preferentieel certificaat/EUR1 af. Bij zelf afhalen/af fabriek (EXW) uit derde landen en de EU wordt 16% btw als borg ingehouden, tot we de ontvangstbevestiging/het leveringscertificaat van de koper hebben ontvangen.
Betalingsvoorwaarden
Wij accepteren geen betalingen Letter of Credit, PayPal etc. Het factuurbedrag is volledig verschuldigd. Er zijn geen betalingskortingen. De goederen blijven tot volledige betaling ons eigendom.
Land |
Mogelijke betaalmethoden |
Opmerking |
Duitsland, Oostenrijk, Zwitserland |
Betaling via factuur, vooruitbetaling, per creditkaart |
Betaling via factuur is mogelijk voor ondernemingsklanten. |
Nederland, België en Luxemburg |
Betaling via factuur, vooruitbetaling, per creditkaart |
Betaling via factuur is mogelijk voor ondernemingsklanten. |
Andere landen |
vooruitbetaling, per creditkaart |
|
Onze Algemene Voorwaarden voor Verkoop, Levering en Betaling zijn hierop van toepassing. Deze voorwaarden zijn hier te downloaden.
Tussenverkoop is ons voorbehouden.
Beschrijving status:
Alle artikelen zijn gebruikte artikelen, tenzij bij een artikel uitdrukkelijk wordt vermeld dat het om een nieuw apparaat gaat.
manufacturer : Schmidt- Haensch
model : IPR 3
annotation : Dokumente engl .

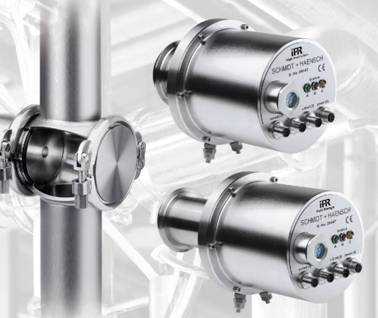

The following illustrations and descriptions refer to the instrument model and are drawn from brochures. They do not represent the scope of delivery. Please refer to the text of the offer for the exact scope of delivery.
- Inline, real-time refractive index, Brix or concentration measurement to monitor and control the concentration of dissolved solids in solutions, or liquids in process
- Stainless steel measuring head featuring a sapphire or YAG prism, CIP capability (pipe pigs usable)
- Continious measurement and real-time process control with analog and digital outputs, limit comparators and internal diagnostics
- Programmable scales, Brix scale temperature corrected
IPRs measure the refractive index continuously and determine thereby the concentration of dissolved solids in solution and/or the mixing proportion of binary or quasi-binary liquid mixtures.
The measurement is independent of turbidity, colour and absorption and is free of Signal drifts, granting high precision and better process control. The Brix measurement is temperature-compensated for the process stream conditions, generating reliably both high resolution and high precision.
The new generation of IPR measuring heads have high communication skills. The process sensors can visualize the measuring results as a single solution by data logger. lt can be used as fully autonomous sensor or connected directly to a supervisory process control system or to the Universal Controller.
The new generation of IPR measuring heads gives also the possibility to construct an intelligent sensor station which consists for example of several refractometers , turbidity measuring devices and CO 2 sensors. The Universal Controller can also be used as a control desk for different other process sensors e.g. 0 2 , CO 2 , pH or conductivity.
This special kind of characteristic in the communication opens valuable economy possibilities for customers, because a separate display or special configuration is not needed for each sensor.
Refractometer applications
Process refractometers are used in many fields for measuring, process control and documentation.
Chemical industry
Inorganic acids and bases
Fats and oils
Organic products and dissolvents
Salt solutions
Pulp and paper
Paints and glues
Petrochemical industry
Paraffins , waxes
Petrol chemical products (ex-proof version available)
Resins
Semiconductor industry
Slurries, hydrogen peroxide, hydrofluoric acids
Vehicle- and engine construction
Antifreezer
Oils, lubricants
Food industry
Juice, fruit concentrate
Soft drinks
Vine, beer
Coffee, coffee extract
Milk products, yoghurt
Tomato pate, ketchup
Marmalades, jams, jellies, fruit processing
Candies, chocolate
Starch
Sugar industry
Raw juice, thin and thick juice
Massecuite , molasses
Liquid sugar, compressed water
Crystallisation pans
Textile industry
Polyvinyl alcohol
IPR Basic
Measuring ranges: B1: 1.3320 - 1.4200 RI / 0 - 50 Brix
B2: 1.3800 - 1.4800 RI / 30 - 75 Brix
B3: 1.4000 - 1.5000 RI / 45 - 85 Brix
B4: 1.4200 - 1.5300 RI / 55 - 95 Brix
Resolution: 0.0001 RI / 0.1 Brix
(0.00002 / 0.02 Brix upon request, depending on process)
Precision: ± 0.0002 RI / ± 0.2 Brix
Process temperature (max.): 135°C (with water cooling installed)
Process pressure (max.): 1 MPa (145 psi , 10 bar )
Process contact material: Sapphire or YAG, Stainless steel, optional: Teflon
Power supply: 24 V DC
Light source: 589 nm LED
Interfaces: 2 insulated 4 - 20 mA analog outputs
2 digital outputs / limit switches
2 serial outputs, alternatively RS232 or RS485
Mounting accessories: VariVent ( Tuchenhagen ) or customer specified
Others: CIP and pipe pig use possible, optional: cleaning device for prism, 00paperless data recorder, universal controller
IPR FR (
Technical data as like iPR Basic, deviate:
Measuring ranges: B1: 1.3320 - 1.5300 RI / 0 - 95 Brix
B2: 1.4200 - 1.6000 RI / 50 - 100 Brix
Resolution: 0.0001 RI / 0.1 Brix
Precision: ± 0.0002 RI / ± 0.2 Brix
Process temperature (max.): 150°C (with water cooling installed)
IPR HR (High Resolution)
Technical data as like IPR Basic, deviate:
Measuring ranges: 1.332000 - 1.372000 RI / 0 - 25 Brix
Resolution: 0.000005 RI / 0.003 Brix
Precision: ± 0.00007 RI / ± 0.05 Brix
IPR EX (Ex proof version)
Technical data as like iPR Basic, deviate:
Ex proof: Intrinsically safe, ATEX class ib II A T4
Control unit: Splash proof IP 65 (NEMA 4)
Power supply: 85 - 260 V / 50 - 60 Hz
iPR Compact
Measuring ranges: 1.3320 - 1.4209 RI / 0 - 50 Brix
Brix range with ATC: 0 - 50 Brix
Resolution: 0.0001 RI / 0.1 Brix
Precision: ± 0.0002 RI / ± 0.2 Brix
ATC-Range: 10 - 50° C
Process temperature (max.): 50°C
Process pressure (max.): 1 MPa (145 psi , 10 bar )
Power supply: 24 V DC
Light source: 589 nm LED
Data output: 4 - 20 mA ( Brix 0 - 50 with ATC)
RS 232 or RS 422
Dimension: 150 x ø 65 mm
Weight : 1000 g
