HPLC systemen

ECOM ECS02, quaternäre HPLC

€ 17.250,00
Excl. 19% VAT , excl. Shipping Cost
€ 20.527,50 incl. Vat
Seriennummer: 31972
Status: NieuwDit is een artikel dat nieuw van de fabriek komt. Hiervoor gelden de garantiebepalingen en wettelijke garantietermijn van de fabrikant.?This is a new device. The equipment is unused and factory sealed. For new equipment the warranty of the manufacturer and the statutory warranty period shall apply.
Verzending: 3-4 weken
Beschrijving:

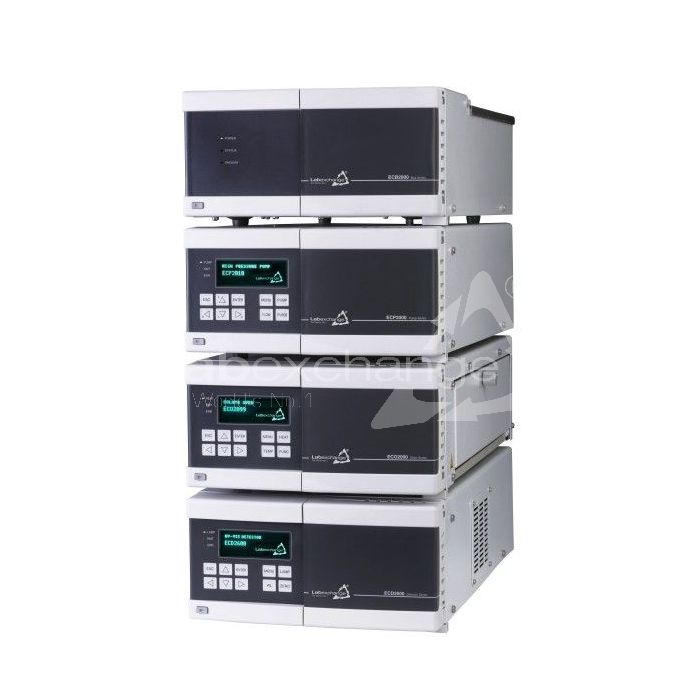

ECOM Quaternair HPLC-systeem ECS02. Met
ECP2010 analytische pomp, 0,01-10mL/min.
ECO2099 kolomoven, 5-99°C.
ECD2600 UV-VIS-detector, 190-600nm.
ECB2004B verloopbox met ontgasser.
Injectieklep met monsterlus van 20 µL.
Apparatuur.
Het systeem omvat een handmatige injector en
Clarity-software om alle modules aan te sturen.
Aansluiting via RS232 of Ethernet (LAN)
DAD, RI en ELSD detector op aanvraag.

NIEUW APPARAAT. 1 jaar fabrieksgarantie!
Installation
De installatie van dit laboratoriumapparaat voeren wij vakkundig uit. Wij bieden u graag de installatie van dit laboratoriumapparaat aan voor: 1120€, exclusief reiskosten.

Usually, laboratory and analysis devices are very exigent system with a very own specifications and requirements. Therefore, the startup of a laboratory device often rises the question how to assemble, adjust and to launch it.


We would be pleased to take over the professional installation of your laboratory devices!

Please contact us.


Benefit from the installation by us in more than one way:

  • Immediate and smooth startup of your laboratory device
  • A professional installation extends the lifetime of your laboratory device
  • Guarantee extends to 3 months
  • Freight charges do not apply*
  • You are entitled to benefit from the Labexchange Repurchase Guarantee.

* products of the product groups laboratory furniture and laminar flow are excluded. In individual cases, other product groups can be excluded.


Toevoegen aan offertelijst
Meer informatie
Objektnummer B00031972
Seriennummer 31972
Object Naam ECOM ECS02, quaternäre HPLC
Status Neugerät
Fabrikant Labexchange
Verzending 3-4 weken

Status, leverings- en betalingsvoorwaarden

Apparatuurcontrole

De gebruikte apparatuur wordt voorafgaand aan levering gecontroleerd door Labexchange Service GmbH. U ontvangt volledig functionerende apparatuur.



Verzending

De vermelde verzendtijden zijn telkens de kortste voor een artikel. In bepaalde gevallen kunnen de daadwerkelijke verzendtijden daarvan afwijken. De uiteindelijke verzendtijden worden aangegeven in de opdrachtbevestiging.

In de regel bieden we combinatieleveringen aan. Levertijden zijn afhankelijk van het artikel met de langste levertijd. Deelleveringen zijn mogelijk tegen een toeslag.



Verzendmethoden

Koeriersdiensten, transportbedrijven, zelf afhalen, levering door Labexchange wagenpark



Informatie levering

De prijzen zijn exclusief verzendkosten. De genoemde verzendkosten zijn de te verwachten kosten. Afwijkingen zijn mogelijk. In het geval geen kosten voor verzending zijn gespecificeerd, vraag die dan afzonderlijk aan.

Voor levering in landen buiten de EU wordt voor export een toeslag van € 70,00 in rekening gebracht. Opmerking: We geven geen preferentieel certificaat/EUR1 af. Bij zelf afhalen/af fabriek (EXW) uit derde landen en de EU wordt 16% btw als borg ingehouden, tot we de ontvangstbevestiging/het leveringscertificaat van de koper hebben ontvangen.



Betalingsvoorwaarden

Wij accepteren geen betalingen per creditkaart, Letter of Credit, PayPal etc. Het factuurbedrag is volledig verschuldigd. Er zijn geen betalingskortingen. De goederen blijven tot volledige betaling ons eigendom.

Land

Mogelijke betaalmethoden

Opmerking

Duitsland, Oostenrijk, Zwitserland

Betaling via factuur, vooruitbetaling

Betaling via factuur is mogelijk voor ondernemingsklanten.

Nederland, België en Luxemburg

Betaling via factuur, vooruitbetaling

Betaling via factuur is mogelijk voor ondernemingsklanten.

Andere landen

vooruitbetaling





Onze Algemene Voorwaarden voor Verkoop, Levering en Betaling zijn hierop van toepassing. Deze voorwaarden zijn hier te downloaden.

Tussenverkoop is ons voorbehouden.



Beschrijving status:

Alle artikelen zijn gebruikte artikelen, tenzij bij een artikel uitdrukkelijk wordt vermeld dat het om een nieuw apparaat gaat.

Status

Conditie

Opmerking

Onmiddellijk verkrijgbaar

gebruikt Het artikel is al gecontroleerd en is in perfecte staat. Het kan onmiddellijk aan u worden verstuurd.
Op voorraad

gebruikt

We hebben het artikel in ons magazijn. Onze technici zullen het artikel voorafgaand aan levering controleren. U ontvangt volledig functionerende artikel.

Gepubliceerd

gebruikt

Het artikel is nog bij de aanbieder. Na uw bestelling wordt het door ons aangekocht, gecontroleerd en aan u verstuurd. Een functioneringscertificaat en een servicerapport zijn bij de levering inbegrepen.

Nieuw

nieuw

Dit is een artikel dat nieuw van de fabriek komt. Hiervoor gelden de garantiebepalingen en wettelijke garantietermijn van de fabrikant.





Manufacturer: Labexchange

Model:              ECS02





The following illustrations and descriptions refer to the device model and come from brochures.

They are not the scope of delivery. For the exact scope of delivery please refer to the offer text.



Technical specifications



ECD2600 UV-VIS Detector

Detector with continuously variable wavelength in the range of 190-600 nm and a noise level ±3·10-6 AU.

Unit offers high-speed sampling up to 100 Hz and wavelength autocalibration. AC 05 analytical cell is

ECO2099 Column oven with heating

This column oven allows temperature stabilization above ambiet temperature.A big compartment room can accommodate up to 3 columns with length up to 25 cm.

OverheatingSecurity-Fuse prevents destruction of temperature sensitive columns. Temperature range is ambient temperature +5°-99 °C.

CLARITY Chromatography Software

This system is fully controlled by Clarity Chromatography software, which is also a part of delivery. Clarity software complies CFR21GLP requirements.

ECP2010 Analytical HPLC Pump

This isocratic pump works with Gradient Box ECB2004 as a quaternary gradient pump. Flow rate range is 0.01-10 ml/min and pressure limit at 40 MPa.

Unit software includes new learning algorithm for pulsation suppression and many testing and diagnostic functions

ECB2004 Gradient Box with Degasser

Box is suited for handling liquids in ECOM gradient systems. It accommodates a container for solvent bottles, built-in highefficiency vacuum degasser and four-way gradient valve. Up to four solvent lines may be degassed simultaneously by one unit. Fourway gradient valve is controlled from the pump ECP2010.





Detector                                                      ECD2600                              ECD2800

Wavelength range                                       190-600 nm                          190 - 800 nm

Spectral half width                                                                 6 nm

Adjustment accuracy                                                             ± 1 nm

Reproducibility                                                                       ± 0.5 nm

Light source                                                 Deuterium lamp                    Deuterium + halogen lamps

Noise (test cell, 254 nm, TC 2s, 10 Hz)                                 ± 3 · 10 -6 AU

Drift (test cell, 254 nm)                                                          1 x 10 & sup4; AU / h.

Time constant                                                                        20 - 10 000 ms

Scanning speed                                                                     up to 100 Hz

Digital output                                                                         1 V / AU

Analog output 1                                                                     1x configurable

Wetted materials are dependent

from one cell -                                                       quartz glass, PTFE, stainless steel, PEEK

Communication                                                                     RS232, Ethernet (LAN)

Display, keyboard                                                            VFD 140x32 pixels, 10 buttons

Power supply                                                                       100-240V 50 / 60Hz 100VA

Dimensions (W x H x D)                                         280 x 135 x 498 mm (11.02 x 5.12 x 18.23 in)

Weight                                                                                                9 kg



ECO 2099 column oven

Operating temperature range

ambient temperature +5°C - 99° C

temperature stability

± 0.2 ° C

Reproducibility of temperature

± 0.2 ° C

temperature accuracy

± 2 ° C

communication

RS232, Ethernet (LAN)

Display, keyboard

VFD 140x32 pixels, 10 pushbuttons

power supply

100-240 V 50/60 Hz 250 VA

Heated space inside dimensions (W x H x D)

328 x 54 x 42 mm

Dimensions (W x H x D)

280 x 135 x 498 mm

Weight

14 kg





Pump ECP2010

flow rate

0.01-10.00 ml / min.

pumping system

two pistons dia. 1/8 "connected in series

Maximum operating pressure

40 MPa (5800 PSI, 400 bar)

Accuracy of flow rate (1 ml / min, 12 MPa, H 2 O)

± 2%

Repeatability of the flow rate (1 ml / min, 12 MPa, H 2 O)

± 0.5%

Accuracy of pressure measurement

± 2%

Adjustable lower pressure limit

0.0-39.0 MPa

Adjustable upper pressure limit

1.0 - 40.0 MPa

Number of valves *

4 (A, B, C, D)

Setting of component concentrations *

0.0 - 100.0%

Wetted materials

Stainless steel, sapphire, KEL-F, gaskets **

communication

RS232, Ethernet (LAN), USB

Display, keyboard

VFD 140x32 pixels, 10 pushbuttons

power supply

100-240 V 50/60 Hz 100 VA

Dimensions (W x H x D)

280 x 135 x 498 mm

Weight

10 kg



ECB2004 Gradient Box with degasser

degasser
Degasser channels 5 independent
degassing process Gas permeation through a fluoropolymer membrane
Maximum flow rate 10 ml / min.
degassing capacity ~ 2 ppm at 1 ml / min.
Dead volume of degasser channel ~ 480 μl per channel
Wetted materials PEEK, glass fiber reinforced PTFE, Teflon AF®
Gradientenventil
Number of gradient valves 4 (A, B, C, D)
Maximum operating pressure 1.38 bar (20 PSI)
orifice 0.062 "(1.6 mm)
Wetted materials PTFE
Common parameters
connecting thread 1/4 "-28 flat bottom
power supply 100-240 V 50/60 Hz 20 VA
Inside box Dimensions (W x H x D) 267 x 56 x 305 mm
Dimensions (W x H x D) 280 x 135 x 498 mm
Weight 7 kg

Product groep: HPLC
