TA Instruments AR 500
Objektnummer | B00014614 |
---|---|
Numéro d'identification | 014614 |
Nom de l'objet | TA Instruments AR 500 |
Statut | Archiv |
Statut, conditions de livraison et de paiement
Vérification des appareils
Les appareils d’occasion sont vérifiés par Labexchange Service GmbH avant la livraison. Vous recevez des appareils entièrement fonctionnels.
Délai d'expédition
Les délais de livraison indiqués sont les plus rapides pour l’article en cause. Les délais de fait peuvent varier au cas par cas. Les délais de livraison définitifs sont indiqués dans la confirmation de commande.
Nous offrons des livraisons collectives par principe. Le délai de livraison s’oriente à l’article avec le délai de livraison le plus long. Une livraison partielle est possible par prix additionnel.
Méthodes d'expédition
Courrier, agences d'expédition, autocueillette, livraison par flotte de Labexchange
Conditions de livraison
Prix plus frais d’expédition. Les frais d’expédition indiqués sont à prévoir. Dérogations éventuelles sont possibles.
Si les coûts de transport ne sont pas spécifiés, s'il vous plaît demander séparément les frais de transport. Les frais de transport et d'emballage indiqués se réfèrent à l'itinéraire de transport le moins cher et sont sujets à des augmentations de coûts imprévues. En raison d'événements imprévisibles, les tarifs de transport et les délais de livraison peuvent changer à tout moment et doivent être adaptés à la situation actuelle. Incoterm codage selon les Incoterms 2010: Pour personnes qui viennent chercher les dispositifs elles-mêmes: EXW, pour les expéditions par voie maritime: CFR, par avion: CPT, d'autres expéditions: DAP. Remarque: Nous n'établissons pas des preuves préférentielles/EUR1. Dans le cas d’un enlèvement par vos soins/EXW de pays à l’intérieur ou à l’extérieur de la Union européenne, nous devons conserver 16% de TVA d’acheteur comme dépôt de garantie, jusqu’à ce que nous ayons reçu l’attestation de reception/la prevue de livraison.
Modalités de paiement
Nous n’acceptons pas le paiement par lettre de credit, PayPal, etc. Dans tous les cas le montant est payable sans déduction. Jusqu’au paiement complèt l’équipement reste notre propriété. Un escompte n’est pas accordé.
Pays |
Modalités de paiement possible |
Remarque |
DE, AT, CH |
Paiement par facture, prépaiement, par carte de credit |
Paiement par facture est possible pour clients professionnels. |
NL, BE, LU |
Paiement par facture, prépaiement, par carte de credit |
Paiement par facture est possible pour clients professionnels. |
Autre pays |
Prépaiement, par carte de credit |
|
Nos conditions de vente, de livraison et de paiement sont en vigueur. Vous pouvez télécharger les documents ici.
La vente intermédiaire nous est réservée.
Défintion des statuts
Tous articles sont d’occasion, sauf si explicitement défini comme « appareil neuf ».
Statut |
Condition |
Remarque |
Immédiatement disponible |
Occasion |
L’article a été déjà entièrement vérifié et peut être envoyé directement à vous. |
En stock |
Occasion |
L'article est en notre stock, mais doit être vérifié avant la livraison par nos techniciens Vous recevez des articles entièrement fonctionnels. |
Publié |
Occasion |
L’article est toujours au l’offreur. Nous achetons, vérifions et en fin livrons l’article après votre commande. Le certificat de fonctionnement ainsi que le rapport de service sont inclus à la livraison. |
Appareil neuf |
Neuf |
C’est un dispositif neuf. L’article n’est pas utilisé et neuf d’usine. En ce qui concerne des article neufs, la garantie du fabricant est valable. |
Labprocure |
Occasion |
Responsable du contenu de l‘offre d’appareil est la société Labprocure GmbH, comme annonceur. Labprocure assume la responsabilité des offres annoncées ici ainsi que des photos et des textes d’offre inclus. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen. |
Firma: TA Instruments
The following illustrations and descriptions are referring to the instrument model and are drawn from brochures. They are not representing the delivery volume. The exact delivery content you will find only in the offering text.
The TA Instruments AR Rheometers are fifthgeneration instruments, which functions as either a controlled-stress or controlled-rate Instrument.
The rheometers are designed to fulfill the requirements of measurement as implied by the füll meaning of the term rheologydefined as the "study of the deformation and flow of matter."
Deformation is measured in the non-destructive region of elastic or visco-elastic deformation. This can give invaluable Information concerning the microscopic interactions in the test material, as well as measuring the shear stress/shear rate relationships at higher Stresses.
In the controlled-stress technique, the stress can be applied and released at will, and the actual behavior of the Sample can be measured directly. This is not usually possible wich conventional controlled-shear rate instruments. In addition, most real-life situations can be simulated more accurately using controlled-stress measurements.
Instrument Components

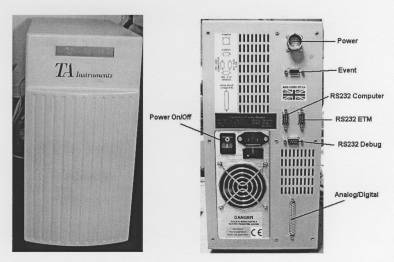

The Instrument consists of a main unit mounted on a cast metal stand, with the electronic control circuitry contained within a separate electronics control box. Figure 2.3 Shows the front and rear of the electronics control box.

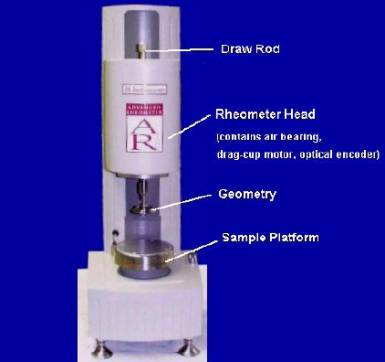

The AR Rheometer contains an electronicallycontrolled induction motor with an air bearing Support for all the rotating parts. The drive motor is equipped with a hollow spindle, with a detachable draw rod inserted through it. The
draw rod has a screw-threaded section at the bottom, which allows the geometry to be securely attached.
The measurement of angular displacement is dope by an optical encoder deviee. This can detect very Small movements down to 0.6 prad. The encoder consists of a non-contacting light source and photo-cell, arranged either side of a transparent disc attached to the drive shaft. On the edge of this disc are extremely fine, accurate photographically-etched radial lines. Therefore, this is a diffraction grating. There is also a stationary Segment of a similar disc between the light source and encoder disc. The interaction of these two discs results in diffraction patterns that are detected by the photo cell. As the encoder disc moves when the sample strains under stress, these patterns change. The associated circuitry interpolates and digitizes the resulting Signal to produce digital data. This data is directly related to the angular deflection of the disc, and, therefore, the strain of the sample.
The main electronics are housed in a separate control box. The interplay between the rheometer/electronics and Controller are explained in more detail in Chapter 5.)
Temperature control is achieved in the Standard configuration via a Peltier plate System.
Technical Specifications
Dimesions
AR-N Instrument Section (Casting):
Width: 9 in. (22cm)
Height: 23,5 in. (60cm)
Depth: 10 in. (25 cm)
Weight: 48.5 lbs (22 kg)
AR-N Controller:
Width: 7,5 in (18.5 cm)
Height: 14,5 in. (37 cm)
Depth: 17 in. (43 cm)
Weight: 46,2 lbs (21 kg)
Supply Voltage 230 Vac 5 amps
120 Vac 10 amps
Frequency 50 to 60 Hz
Power 800 Vac
Torque 0.1 µNm to 100 mNm (AR 1000)
Range 1µNm to 50mm (AR 500)
Shear Stress 0.0008 to 508,000 Pa (AR 1000)
Range (Geometry 0.008 to 254,000 Pa (AR 500)
Dependent)
Frequency 0.1 mHz to 100 Hz (AR 1000)
Range (0.628 mrad s -1 to 628 rad s -1 )
0.1 inHz to 40 Hz (AR 5 00)
Angular Controlled Stress:
Velocity 10 -8 to 100 rad s -1
Range Controlled Strain:
10 -2 to 100 rad s -1
Angular 0.62 µrads
Displacement
Resolution
Shear Rate Range 10 -6 to 11,000 s -1
(Geometry, material
and technique
dependent.)
Minimum strain 0.00006
Normal force
Range: 1 g to 5000 g
Peltier System Specifications
Peltier Standard: -10 °C to 99 °C
System Extended: -20 °C to 180 °C
Range
NOTE: Extended use of the extended Peltier plate is not recommended above 150 °C. Also, the lower temperature ramps can be significantly reduced by circulating an appropriate refrigerant.
Ramp Rate 20 °C min -1
(Standard)
(Typical)
Ramp Rate (20 to 100 °C) 50 °C min -1
(Extended) (100 to 150 °C) 25 °C min -1
Internal 0.016 °C
Resolution
of Pt100
Optional Accessory Specifications for Extended Temperature Module (ETM)
ETM Temperature
Range -100 °C to 400 °C
Ramp Rate
(Typical) 120 °C min -1
Internal
Resolution 0.025 °C
