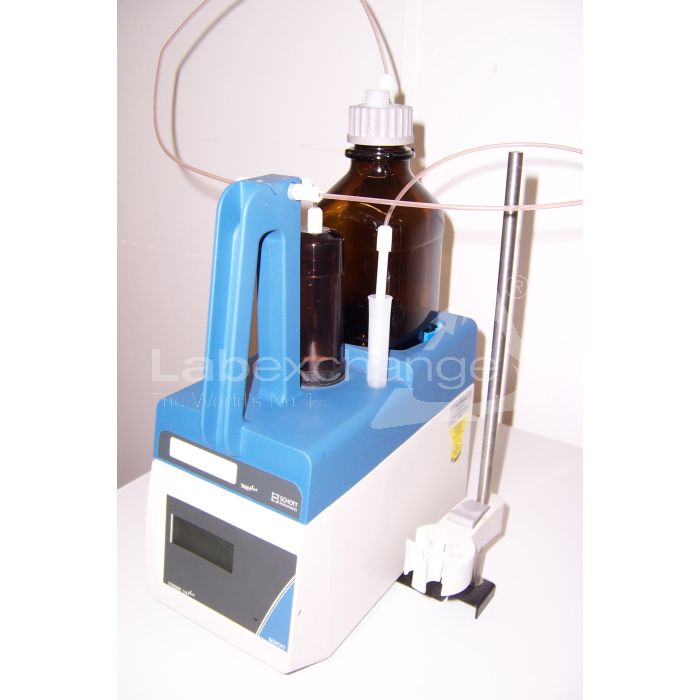

Schott Titronic 110 Plus
Objektnummer | B00017655 |
---|---|
Numéro d'identification | 017655 |
Nom de l'objet | Schott Titronic 110 Plus |
Statut | Archiv |
Statut, conditions de livraison et de paiement
Vérification des appareils
Les appareils d’occasion sont vérifiés par Labexchange Service GmbH avant la livraison. Vous recevez des appareils entièrement fonctionnels.
Délai d'expédition
Les délais de livraison indiqués sont les plus rapides pour l’article en cause. Les délais de fait peuvent varier au cas par cas. Les délais de livraison définitifs sont indiqués dans la confirmation de commande.
Nous offrons des livraisons collectives par principe. Le délai de livraison s’oriente à l’article avec le délai de livraison le plus long. Une livraison partielle est possible par prix additionnel.
Méthodes d'expédition
Courrier, agences d'expédition, autocueillette, livraison par flotte de Labexchange
Conditions de livraison
Prix plus frais d’expédition. Les frais d’expédition indiqués sont à prévoir. Dérogations éventuelles sont possibles.
Si les coûts de transport ne sont pas spécifiés, s'il vous plaît demander séparément les frais de transport. Les frais de transport et d'emballage indiqués se réfèrent à l'itinéraire de transport le moins cher et sont sujets à des augmentations de coûts imprévues. En raison d'événements imprévisibles, les tarifs de transport et les délais de livraison peuvent changer à tout moment et doivent être adaptés à la situation actuelle. Incoterm codage selon les Incoterms 2010: Pour personnes qui viennent chercher les dispositifs elles-mêmes: EXW, pour les expéditions par voie maritime: CFR, par avion: CPT, d'autres expéditions: DAP. Remarque: Nous n'établissons pas des preuves préférentielles/EUR1. Dans le cas d’un enlèvement par vos soins/EXW de pays à l’intérieur ou à l’extérieur de la Union européenne, nous devons conserver 16% de TVA d’acheteur comme dépôt de garantie, jusqu’à ce que nous ayons reçu l’attestation de reception/la prevue de livraison.
Modalités de paiement
Nous n’acceptons pas le paiement par lettre de credit, PayPal, etc. Dans tous les cas le montant est payable sans déduction. Jusqu’au paiement complèt l’équipement reste notre propriété. Un escompte n’est pas accordé.
Pays |
Modalités de paiement possible |
Remarque |
DE, AT, CH |
Paiement par facture, prépaiement, par carte de credit |
Paiement par facture est possible pour clients professionnels. |
NL, BE, LU |
Paiement par facture, prépaiement, par carte de credit |
Paiement par facture est possible pour clients professionnels. |
Autre pays |
Prépaiement, par carte de credit |
|
Nos conditions de vente, de livraison et de paiement sont en vigueur. Vous pouvez télécharger les documents ici.
La vente intermédiaire nous est réservée.
Défintion des statuts
Tous articles sont d’occasion, sauf si explicitement défini comme « appareil neuf ».
Statut |
Condition |
Remarque |
Immédiatement disponible |
Occasion |
L’article a été déjà entièrement vérifié et peut être envoyé directement à vous. |
En stock |
Occasion |
L'article est en notre stock, mais doit être vérifié avant la livraison par nos techniciens Vous recevez des articles entièrement fonctionnels. |
Publié |
Occasion |
L’article est toujours au l’offreur. Nous achetons, vérifions et en fin livrons l’article après votre commande. Le certificat de fonctionnement ainsi que le rapport de service sont inclus à la livraison. |
Appareil neuf |
Neuf |
C’est un dispositif neuf. L’article n’est pas utilisé et neuf d’usine. En ce qui concerne des article neufs, la garantie du fabricant est valable. |
Labprocure |
Occasion |
Responsable du contenu de l‘offre d’appareil est la société Labprocure GmbH, comme annonceur. Labprocure assume la responsabilité des offres annoncées ici ainsi que des photos et des textes d’offre inclus. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen. |
~/manufacturer: Schott
model: Titronic 110 plus
annotation: Dokumente engl.

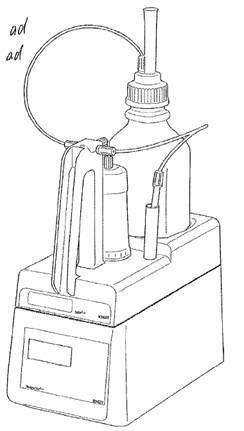

The following illustrations and descriptions refer to the instrument model and are drawn from brochures. They do not represent the scope of delivery. Please refer to the text of the offer for the exact scope of delivery.
Using the versatile TITRONIC® 110 plus Piston Burette, virtually all titration and dosage tasks occurring in a laboratory can be completed. The substances or mixtures of substances to be dosed must be liquid.
The examples of possible uses for the piston burette include:
· Dosage and titration within the TitriSoft Computer Titration System
· Titrating in combination with automatic titration units from SCHOTT-GERÄTE such as the TitroLine alpha plus
· Titrating using the TR 160 Manual Titration Controller
· Dosing with a pre-selected volume, time, or speed
The following may be used:
· All common titration solutions, with the solutions specified in the "Küster-Thiel" calculation tables (published by Walter de Gruyter) being taken as standard.
· Water and all non-aggressive, inorganic and organic fluids may be used as solvents. When handling inflammable substances the explosion protection directives of the Professional Association of the Chemical Industry are to be observed,
· With Iiquids with a higher viscosity 5 mm2ls), a low boiiing point, or a tendency to exhalation, the filling speed can be adapted.
· Liquids with a viscosity above 50 mrrüs cannot be dosed.
The two RC-232-C-interfaces allow the chained arrangement of TITRONIC® 110 plus Piston Burettes among each other as well as the connection of other devices from SCHOTT-GERÄTE which suitable for chaining, e.g. the TitroLine alpha plus Titrator and the TitriSoft software in combination with a PC. A standardised connector enables a standard PC keyboard (PS2) (fig. 15, item 6) to be connected for a convenient parameterisation of various functions.
A stand can be connected directly to the TITRONIC® 110 plus Piston Burette for the attachment of a stirrer or an electrode clannp (Fig. 2).
Interchangeable Units are available for volumes of 50 ml, 20 ml, 10 ml, 5 ml and 1 ml (Fig, 5). The centrepiece of the interchangeable units is formed by the high-precision borosilicate Blass cylinder (Fig. 5) the internal diameter of which is made with a manufacturing tolerance of ±0.003 mm. This diameter tolerance and the low-wear high-precision spindle inside the piston burette reduce the maximum fault deviation caused by the piston burette to ± 0.1% for the TITRONIC® 110 plus Piston Burette e.g. with the interchangeable units of the TA 10, TA 20, and TA 50 types.
Technical properties of the TITRONe 110 plus Piston Burette
Multi-functional display: 4-digit display, approx. 25 x 65 mm, 4-digit volume display with
Floating point, height approx. 18 mm,
Piston drive: Pulse-controlied step motor, maximum frequency = 330 Hz,
Interchangeable Units: 1 ml, 5 ml, 10 ml, 20 ml, and 50 ml, UV protection filter,
erasable front labet;
Resolution: 10,000 pulses per 100 % of volume,
smallest increment 0.1 pl with 1 ml interchangeable unit
Accuracy: 0.2 % to 0.1 % relative to 100 % of volume,
depending on interchangeable units
Reproducibility: 0.1 % to 0.05 %, depending on interchangeable unit
Display accuracy: 0.000...9.999 ml, 10.00...99.99 ml, 100.0...999.9 ml, 1000...9999 ml
Filling Speed: 100 % of volume in 20 s to 999 seconds, freely selectable
Discharge Speeds: 0.01 ml/h to 100 ml/min, depending on interchangeable unit
Valve switch-over: automatic
Inputs and outputs: 2 RS-232-C serial Interfaces, 9-channel sub-miniature D jacks,
keyboard port: 5-channel mini DIN sacket PS2
I/O gort: 15-channel sub-miniature D jack, e.g. for connecting a TR 160
Power supply corresponds to Protective Class I according to DIN 57 411 / VDE
0411, Part 1
Mains connection: 230 V~/ +6 %, 50...60 Hz or
115 V~/ ± 10%, 50...60 Hz, internal conversion
Mains fuse: Fine wire fuse 5 x 20 mm: with 230 V ~, 0.25 A, slow-blow type
with 115 V ~, 0.5 A, slow-blow type
Power consumption: 35 VA
CE-Sign:C E: EMC - Compatibility according to the directive 89/336/EEC of the Council;
Interference emission according to the EN 61 326 standard, Part 1 Jamming resistance according to the EN 61 326 standard, Part 2 Low-voltage directive according to the Directive 73/23/EEC pf the Council, as amended by the Directive 93/68/EEC of the Council
Testing Basis: EN 61 010, Part 1
Country of origin:
Made in
Dimensions: 150 x 360 x 290 (W x H x D) with interchangeable unit
Weight: approx. 5.1 kg with interchangeable unit
approx. 4.3 kg without interchangeable unit
Interchangeable units
Compatibility: The units are interchangeable with those of the T 100, T 110/220
Piston
Burettes and the titrator of the TitroLine alpha plus type
Coding of the cylinder size: Automatically, the mounting for the glass cylinder bears an
unmistakable code
Valve: Volume-independent cone valve made of fluorocarbon polymers
(PTFE)
Cylinder: Made of DURAN°
Hoses: FEP tose set with UV-protection
Bracket for storage bottle: To fit glass bottle to DIN 12 036 and DIN 12 039,
rectangular glass or plastic bottle
Fastening for
interchangeable unit: With automatic checking feature
Materials: Borosilicate glass, fluorocarbon polymers, PPS, high-grade steel
polypropylene, acrylic glass
Dimensions: 145 x 260 x 270 mm (W x H x 0) without reagents bottle
Weight: Approx. 0.80 kg for TA 20 interchangeable unit without reagents
bottle
Dosing accuracy: According to DIN EN ISO 8655, Part 3
Correctness: 0.1 - 0.3%
Precision: 0.05 - 0.1%
(depending an the interchangeable unit being used)
Dosing accuracy of the TITRONIC® 110 plus Piston Burette when used with TA and TA plus Interchangeable Units:
Inter- Volumen Tolerances of the Ø Correctness re- Precision
changeable unit of the glass cylindersferred to 100 % of
type no. [ml] [mm] volume [%]
[%]
TA 01 1,00 ± 0,003 ± 0,3 0,10
TA 05 plus 5,00 ± 0,003 ± 0,15 0,07
TA 10 plus 10,00 ± 0,003 ± 0,1 0,05
TA 20 plus 20,00 ± 0,003 ± 0,1 0,05
TA 50 plus 50,00 ± 0,003 ± 0,1 0,05
