Nanogen NanoChip
Objektnummer | B00014365 |
---|---|
Numéro d'identification | 014365 |
Nom de l'objet | Nanogen NanoChip |
Statut | Archiv |
Statut, conditions de livraison et de paiement
Vérification des appareils
Les appareils d’occasion sont vérifiés par Labexchange Service GmbH avant la livraison. Vous recevez des appareils entièrement fonctionnels.
Délai d'expédition
Les délais de livraison indiqués sont les plus rapides pour l’article en cause. Les délais de fait peuvent varier au cas par cas. Les délais de livraison définitifs sont indiqués dans la confirmation de commande.
Nous offrons des livraisons collectives par principe. Le délai de livraison s’oriente à l’article avec le délai de livraison le plus long. Une livraison partielle est possible par prix additionnel.
Méthodes d'expédition
Courrier, agences d'expédition, autocueillette, livraison par flotte de Labexchange
Conditions de livraison
Prix plus frais d’expédition. Les frais d’expédition indiqués sont à prévoir. Dérogations éventuelles sont possibles.
Si les coûts de transport ne sont pas spécifiés, s'il vous plaît demander séparément les frais de transport. Les frais de transport et d'emballage indiqués se réfèrent à l'itinéraire de transport le moins cher et sont sujets à des augmentations de coûts imprévues. En raison d'événements imprévisibles, les tarifs de transport et les délais de livraison peuvent changer à tout moment et doivent être adaptés à la situation actuelle. Incoterm codage selon les Incoterms 2010: Pour personnes qui viennent chercher les dispositifs elles-mêmes: EXW, pour les expéditions par voie maritime: CFR, par avion: CPT, d'autres expéditions: DAP. Remarque: Nous n'établissons pas des preuves préférentielles/EUR1. Dans le cas d’un enlèvement par vos soins/EXW de pays à l’intérieur ou à l’extérieur de la Union européenne, nous devons conserver 16% de TVA d’acheteur comme dépôt de garantie, jusqu’à ce que nous ayons reçu l’attestation de reception/la prevue de livraison.
Modalités de paiement
Nous n’acceptons pas le paiement par lettre de credit, PayPal, etc. Dans tous les cas le montant est payable sans déduction. Jusqu’au paiement complèt l’équipement reste notre propriété. Un escompte n’est pas accordé.
Pays |
Modalités de paiement possible |
Remarque |
DE, AT, CH |
Paiement par facture, prépaiement, par carte de credit |
Paiement par facture est possible pour clients professionnels. |
NL, BE, LU |
Paiement par facture, prépaiement, par carte de credit |
Paiement par facture est possible pour clients professionnels. |
Autre pays |
Prépaiement, par carte de credit |
|
Nos conditions de vente, de livraison et de paiement sont en vigueur. Vous pouvez télécharger les documents ici.
La vente intermédiaire nous est réservée.
Défintion des statuts
Tous articles sont d’occasion, sauf si explicitement défini comme « appareil neuf ».
Statut |
Condition |
Remarque |
Immédiatement disponible |
Occasion |
L’article a été déjà entièrement vérifié et peut être envoyé directement à vous. |
En stock |
Occasion |
L'article est en notre stock, mais doit être vérifié avant la livraison par nos techniciens Vous recevez des articles entièrement fonctionnels. |
Publié |
Occasion |
L’article est toujours au l’offreur. Nous achetons, vérifions et en fin livrons l’article après votre commande. Le certificat de fonctionnement ainsi que le rapport de service sont inclus à la livraison. |
Appareil neuf |
Neuf |
C’est un dispositif neuf. L’article n’est pas utilisé et neuf d’usine. En ce qui concerne des article neufs, la garantie du fabricant est valable. |
Labprocure |
Occasion |
Responsable du contenu de l‘offre d’appareil est la société Labprocure GmbH, comme annonceur. Labprocure assume la responsabilité des offres annoncées ici ainsi que des photos et des textes d’offre inclus. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen. |
Firma: Nanogen
Kommentar: Dokumente f. Id.14365

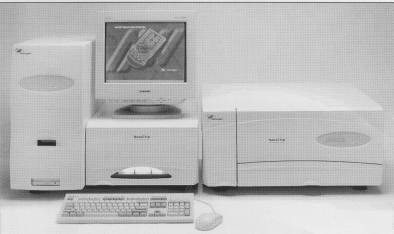

NanoChip System Components
The NanoChip system includes the Loader, the Reader, NanoChip cartridges, data visualization software, reagent bottles, conductivity meter, start-up kit, user's guide and applications notebook.
NanoChip Loader
Users design and create their own assays or experiments on blank NanoChip cartridge using the Loader. A 96-/384-well plate containing up to 96 or 384 different genetic sequences is placed in the Loader. The Loader then automatically electronically addresses the microarray according to a user-defined map. For experiments requiring further hybridization of complementary genetic material, the Loader can be used to automatically hybridize these samples. The elecronically-driven arraying process is both fast and flexible, allowing for multiple types of experiments.
Note: Build 4 NanoChip Loaders (with Loader serial numbers beginning wich 0137-0xx or 0237-0x.x) and Build 5 Loaders (0295-0xx) have the added feature of a reagent pack slot, which allows the user to load only samples from a 96-/-384-well plate and bad assay reagents from a reagent pack.
NanoChip Reader
The Reader is used to hybridize and analyze target samples using NanoChip cartridges prepared on the Loader A reporter probe is hybridized to matching target sequences on the NanoChip cartridge. Results are detected on the Reader through laser-driven fluorescence.
NanoChip® Cartridge
The NanoChip cartridge encloses the electronic microarray and directs fluid to the chip test surface.
The bar-coded cartridge is available in a ready-to-address Format with no DNA probes attched.
Store all cartridges at 2-8°C until ready for use.
Notes: When handling the cartridge, hold by the clear plastic only, clo not touch the electrical contact area on the underside of the cartridge, do no allow the underside of the cartridge to get wet and do not place the cartridge on any surface > 25°C (see Section X-Operating Safety for detailed information on cartridige handling). Use the NanoChip Cartridge Case to hold cartridges.
Remove the protective tape from the underside of the cartridge before inserting the cartridge into the Loader
NanoChip Electronic Microarray
The NanoChip electronic microarray is the active surface where the electronic addressing takes place. There are 100 individual test sites. Each test site is connected to an electrical contact on the bottom side of the NanoChip cartridge. This contact makes the electrical contact to the Loader or the Reader.
RLAB NanoChp Data Viewer and Anaysis Software
Easy-to-use data analysis tools are provided with the NanoChip System. These menu-driven tools transform the data output into useful information in the form of histograms, tables and data charts that are accessible through the Reader or an internet browser from any networked laboratory computer.
Reagent Bottles
Nanogen provides 11 reagent bottles with the workstation-3 to be used with the Loader and 8 to be used with the Reader.
Conducitvity Bottles
It is critical for the proper operation of the NanoChip System that the histidine buffers remain at the appropriate conducitvity and that samples are low in salts. A conductivity meter is provided to check conductivity of the histidine buffer and samples.
Start-up Kit
Nanogen provides an initial amount of L-histidine powder, high salt buffer, low salt buffer, dH2O, 96-/384-well plates, a Zip disk, NanoChip Microplate Seals (tape to cover the 96-/384-well-plate), two blank reagent packs, a Users Guide and an applications notebook. Additional reagents must be purchased by the user.
Additional Materials Required
Computer
The user will need a computer for post sarnple process data analysis for single color fluorescence scans (Microsoft Internet Explorer 4.01 or higher or Netscape 4.74 or higher are required, however a Netscape 6.x and 7.x will not work with the NanoChip System), This computer should be an IBMPC or compatible, contain Windows 9x/NT/2000 ,and have a CPU speed of at least 166 mHz. A printer (preferrably color) is also required to print hand-copies of results.
96-well and 384-well Plates
The user will need to order 96-well and 381-well plates that fit into the Loader.
Notes: The plates recommended by Nanogen provide the tishtest fit for the Loader and are made of polypropylene.
The NanoChip System is calibrated for the 96-well and 384-well NuncTm plates and the MicroAmp9 Optical 96-well amplification plate (Build 4 (and higher) Loaders only). Using other plates may result in improper functioning.
Oligonucleotides/Buffers/Reagents
The user will need to provide oligonucleotides, buffers and reagents specific to the user's application. This includes sample purification kits, amplification reagents, oligonucleotides and assay specific buffers.
Instrument Specifications
NanoChip Reeder (Array Processor & Scanner)
Physical
Height 0.61 m Depth 0.69 m
Width 0.70 m Weight 66.2 kg
Electrical Supply
Line Voltage Power 100-120 VAC/220-240 VAC; 10/6 Amps
Line Frequency 50/60 Hz
Fluctuation Main supply voltage not to exceed
±-10% of nominal supply
Class 1 (grounded)
Capacity
Cartridge Capacity 1 NanoChip® cartridge
Assay Conditions
Hybridization Electronically-accelerated
Stringency Thermal, chemical and/or electronic
Sample Format
Sample carrier NanoChipa cartridge
Sample attached
to array Biotinylated 35-1000 bp nucleic acid fragments
Sample for hybridization 10-1000 bp nucleic acici fragments (<250 optimal)
Laser Information
Laser I (red laser): Excitation Wavelength 635 nm
Laser 1I (green laser) Excitation Wavelength 532 nm
Class I Laser Product
Detection Specifications
Detector Photomultiplier Tube
Emiss!on Wavelength I: 660-720 nm
Emission Wavelength II: 550-600 nm
Environmental Conditions
Temperature 18-30°C
Hurnidity 40-75% noncondensing
Pollution degree 2
Installation category II
Altitude up to 2000 m
Control Processor/Storage
Controls up to 5 Loaders
Data back up to Zip disk
Data access and analysis from external PC via web browser
NanoChip Loader (Electronic Arrayer)
Physical
Height 0.30 m Depth 0.57 m
Width 0.69 m Weight 51.0 kg
Electrical Supply
Line Voltage Power
100-120 VAC/220-240 VAC; 6/4 Amps
Line Frequency
50/60 Hz
Fluctuation Main supply voltage not exceed -±10%
of nominal supply
Class 1 (grounded)
Capacity
Cartridge Capacity 1-4 NanoChip Cartridges
Assay Conditions
Array addressing method Electronically-driven
Hybridization Electronically-accelerated
Stringency Chemical
Sample Format
Sample carrier 96-well or 381-well plate to NanoChip cartridge
Sample attached to array Biotinylated 35-1000 bp nucleic acid fragments
Sample for hybridization 10-1000 bp nucleic acid fragments (<250 optimal)
Environmental Conditions
Ternperature 18-30°C
Humidity 40-75% noncondesning
Pollution degree 2
Instalation categroy II
Altitude up to 2000m
NanoChip Cartridge
Chip Size
0.7 cm square
Array Dimensions
2 mm square
Array Site Size
80 microns
Distance between Site Centers
200 microns
Number of Test Sites
100
Permeation Layer
Thin, fully synthetic hydrogel permeation layer incorporating streptavidin
Binding Chemistry for Customizing Arrays
Electronically-driven streptavidin/biotin binding
Maximum Loading Density
Approximately 10 9 fragments per site
Minimum Sample Volume
60 µL
Storage Conditions
2-8°C
Data Analysis Computer Requirements
PC
IBM-compatible Pentium class
RAM
64M3 minimum
Browser Software Requirement (one of the following):
Microsoft Internet Explorer 4.01 or higher
Netscape Communicator 4.74 or higher (excluding versin 6.x and 7.x)
Free Hard-Drive Disk Space
10 MB minimum
Operating System
Microsoft Windows 9xNT/2000
Other Requirements
Ethernet port
PC-compatible printer
