Laarmann CM 500

Numéro d'identification: 019253
Statut: Archived Product?The unit is no longer available.
Envoi:
Description:

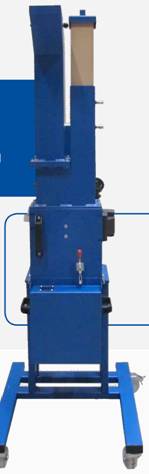

Laarmann Broyeur coupants CM 500. Avec entonnoir, roteur et stator couteaux. 224 t/mn. Capacité de broyage 15-30 kg/h. Tamis de fond. Chassis sur rôles pour 3 x 400 V, 50 Hz. AC 01/2011.
siehe Storeview
Plus d’information
Objektnummer B00019253
Numéro d'identification 019253
Nom de l'objet Laarmann CM 500
Statut Archiv

Statut, conditions de livraison et de paiement

Vérification des appareils

Les appareils d’occasion sont vérifiés par Labexchange Service GmbH avant la livraison. Vous recevez des appareils entièrement fonctionnels.



Délai d'expédition

Les délais de livraison indiqués sont les plus rapides pour l’article en cause. Les délais de fait peuvent varier au cas par cas. Les délais de livraison définitifs sont indiqués dans la confirmation de commande.

Nous offrons des livraisons collectives par principe. Le délai de livraison s’oriente à l’article avec le délai de livraison le plus long. Une livraison partielle est possible par prix additionnel.



Méthodes d'expédition

Courrier, agences d'expédition, autocueillette, livraison par flotte de Labexchange



Conditions de livraison

Prix plus frais d’expédition. Les frais d’expédition indiqués sont à prévoir. Dérogations éventuelles sont possibles.

Si les coûts de transport ne sont pas spécifiés, s'il vous plaît demander séparément les frais de transport. En cas d’expédition dans des pays situés en dehors de l’union Européenne, des frais additionnels de 70,00€ pour l’exportation sont facturés. Remarque: Nous n'établissons pas des preuves préférentielles/EUR1. Dans le cas d’un enlèvement par vos soins/EXW de pays à l’intérieur ou à l’extérieur de la Union européenne, nous devons conserver 16% de TVA d’acheteur comme dépôt de garantie, jusqu’à ce que nous ayons reçu l’attestation de reception/la prevue de livraison.



Modalités de paiement

Nous n’acceptons pas le paiement par carte de credit, lettre de credit, PayPal, etc. Dans tous les cas le montant est payable sans déduction. Jusqu’au paiement complèt l’équipement reste notre propriété. Un escompte n’est pas accordé.

Pays

Modalités de paiement possible

Remarque

DE, AT, CH

Paiement par facture, prépaiement

Paiement par facture est possible pour clients professionnels.

NL, BE, LU

Paiement par facture, prépaiement

Paiement par facture est possible pour clients professionnels.

Autre pays

Prépaiement





Nos conditions de vente, de livraison et de paiement sont en vigueur. Vous pouvez télécharger les documents ici.

La vente intermédiaire nous est réservée.



Défintion des statuts

Tous articles sont d’occasion, sauf si explicitement défini comme « appareil neuf ».

Statut

Condition

Remarque

Immédiatement disponible

Occasion

L’article a été déjà entièrement vérifié et peut être envoyé directement à vous.

En stock

Occasion

L'article est en notre stock, mais doit être vérifié avant la livraison par nos techniciens Vous recevez des articles entièrement fonctionnels.

Publié

Occasion

L’article est toujours au l’offreur. Nous achetons, vérifions et en fin livrons l’article après votre commande. Le certificat de fonctionnement ainsi que le rapport de service sont inclus à la livraison.

Appareil neuf

Neuf

C’est un dispositif neuf. L’article n’est pas utilisé et neuf d’usine. En ce qui concerne des article neufs, la garantie du fabricant est valable.

manufacturer :       Laarmann

model :                   CM 500

annotation :           Dokumente engl .















  • Rapid reduction of large particles from 100mm to 1mm
  • Quick and easy to clean
  • Full range of bottom sieves
  • The CM500 can handle samples of up to 30kg/h









Features and benefits





Benefits

  • Rapid sieve and knife changeover
  • Quick and easy to clean
  • Performance - enhancing diagonal cutting action
  • No need to adjust the rotor knife
  • Ideal granulate quality with similar grain characteristics
  • No tool required to open
  • Outer bearing assembly protected from dust ingress
  • CE certified





Applications

  • Linoleum, Carpets. Cloth
  • Secondary fuels and Bio Mass
  • Food and Animal food
  • Wood, Paper, Carton, Cellulose
  • Rubber, Shredder Light Fractions
  • House Waste, Industrial Waste
  • Computer Scrap and Electronic Scrap
  • Plants, Twigs, Roots etc.
  • Herbs, Spices, Gras, Straw
  • Bones





Superior Cutting Mill engineered to reproducibly grind volumes from 30g of up to 30 kg/h.



Method of operation

The Model CM500 Cutting Mill is used by Laboratories and processing Companies to granulate solid materials such as waste or wood and thermoplastics. The material to be processed falls into the cutting chamber of the CM500 via a guide chute and is shredded by cutting between rotating and fixed knives until it passes an attached sieve as ground product. The sieve extends over the lower half of the grinding chamber and is easily exchanged. Final particle size is determined by the selected sieve perforation aperture.



Sieve dimension

( free open surface) must be large in order to obtain:

  • a high throughput
  • a low heat creation
  • a homogeneous result.



No other Cutting Mill is easier to clean then the CM 500 Cutting Mill. When the grinding process is finished the Front door and the Infeed Hopper can be opened sidewise and the milling chamber is fully accessible for quick and easy cleaning in order to perform a fast and systematic cleaning of the grinding tools.



Grinding

The Cutting Mill is the first machine in a sample prep. Laboratory of today when it comes to sample prep. of cuttable materials. This system is suitable for the coarse and fine grinding of any dry substance, Typically samples with a feed size of up to 100mm and a total batch of up to 30kgs per hour (volume depending on the characteristic of the samples) can be ground down to 1,00 mm or finer depending on the product.



High operator convenience and maximum safety

Maximum Grinding performance and maximum safety is important for Laarmann Mills. Due to two integrated safety switches (door and collector) the machine can only be started when the “Easy Lock Cover “ is closed and the Sample collector is inserted properly.



The Infeed Hopper as well as the housing of the CM500 is made from solid steel.



The ergonomic design of the machine and the positioning of the funnel and the starter box require a minimum space in the laboratory.





CM500 Benefits and applications

Bottom sieves

A full range of bottom sieves is available in various sizes

The size of the bottom sieve is important in order to decrease the heat creation during the grinding and to increase the capacity.

The sieve dimension is 230mm by 135mm which assures a large open surface which is essential for the cutting process to: obtain a high throughput, have a low heat creation during the grinding process and receive a homogeneous result.



Performance features CM500

  • Accoustic Noise Reduction In Feed Hopper made from Bondal . Bondal is a vibration damping composite material with a sandwich structure consisting of a viscoelastic core between two outer steel sheets. Various In Feed Hopper Types are available with wooden/ teflon plunger
  • Massive grinding chamber made from vibration reducing components
  • Solid door with safety switch for easy access and cleaning
  • Solid 30 Liters sample collector with two side handles and a plexi window for sample process observation
  • High precision solid steel underframe
  • Industrial Castor wheels lockable







Cutting Mill Data

Technical Data

Electrical details                      3x400V/50Hz

Speed                                    224 rpm

Motor Power                            2.2 KW



Transport Data

gross dimensions wxdxh        app. 600 x 600 x 600 mm

net dimensions wxdxh            app. 390 x 485 x 375 mm

gross weight                            190 kgs (only machine)

net weight                                135 kgs (only machine)



Features / Performance

working principle                     Cutting

Feed size maximum               Up to 100 mm depending on sample

Quantity maximum                  Up to 30 kgs per hour

Quantity minimum                   50 gr.

Endfineness maximum           250 µm

Number of Rotor knifes           9

Number of stator knifes          2

Start / Stop function                By on/off button

Endfineness adjustment         By interchangeable bottom sieves

Cutting Chamber                     130mm x 200mm

Rotor Diameter                       150mm
