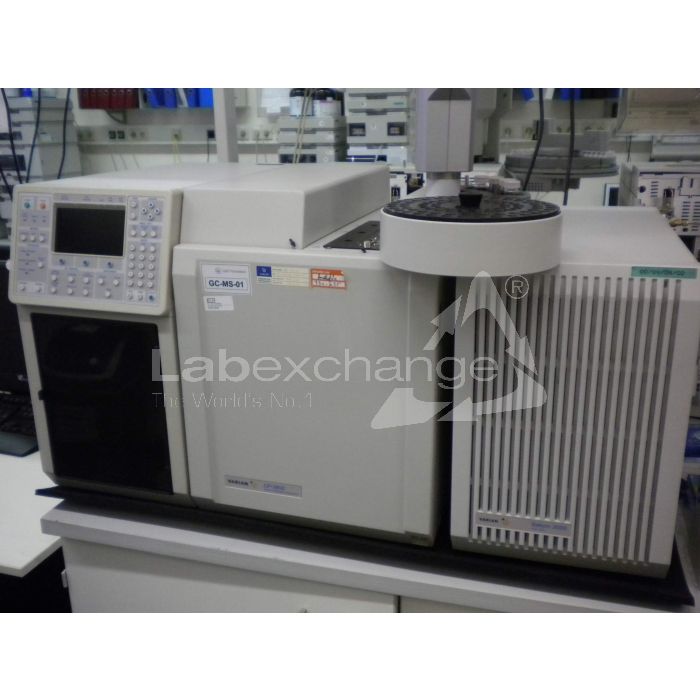

Firma:              Varian

Modell:            CP 3800

Kommentar:   Dokumente engl.

Outstanding Flexibility with Proven Performance

The Varian CP-3800 GG for any application

Flexible platform – single, dual, or three-channel configurations for maximum productivity.

Easy upgrades – quickly add additional capabilities as your requirements change.

Simplified PC control – password security, Star Chromatography Workstation Quick Start Applications, and Custom Report. Writer templates streamline operation

The Varian CP-3800 GC meets all your analytical requirements with practical solutions for simple and complex applications.

In a standard configuration, the CP-3800 accommodates up to three injectors and three detectors, all operating simultaneously. In addition, the CP-3800 is easily configured to perform on-line analyses for monitoring critical gas and liquid process streams.

The CP-3800's flexible platform lets you start with a basic configuration and add a wide variety of options in the field. Options include additional channels, gas and liquid sampling valves, and external sampling devices. Future upgrades guarantee that you can meet changing requirements at a moment's notice.

Star Chromatography Workstation combined with Quick Start Applications provide a powerful yet simple interface for controlling the CP-3800 GC. Routine applications can be launched from the desktop with minimal data entry. Reports specific to your application are easily created with Star Custom Report Writer. Report generation can be automated for around-the-clock monitoring.

The CP-3800 GC from Varian-unlimited possibilities!

• Simple and easy to operate

• Flexible custom configurations

• Stand-alone, PC, and client/server control

Injectors

•            CP-1177 Split/Splitless Injector with optimized Split vent design

•            1079 PTV (Programmable Temperature Vaporizing) injector for cold on-column, LVI (Large Volume Injection), and solid sample introduction with ChromatoProbe

•            1093 SPI (Septum-Equipped Programmable Injector) for high temperature capillary column applications

•            1041 On-Column/Packed Injector for 0.53 mm ID capillary and packed column applications

•            1061 Flash Injector for simplified direct injections

•            Valve Systems for gas and high pressure liquid samples

•            Integrated SPT (Sample Preconcentration Trap) for concentrating gas samples

Column oven

•            Spacious oven accommodates three or more columns

•            Varian Quick Connects provide easy column Installation

•            Rapid oven cool down increases sample throughput

•            Cryogenic cooling extends application range

Detectors

•            Flame lonization (FID) with a patented, ceramic flame tip for ultimate peak shape and sensitivity

•            Thermal Conductivity (TCD) with automatic filament protection for lowest maintenance costs

•            Electron Capture (ECD) for ultra-high sensitivity and selectivity of halogenated compounds

•            Thermionic Specific (TSD) for selective detection of nitrogen/phosphorus compounds

•            Pulsed Flame Photometric (PFPD) for selective detection of sulfur, phosphorus, nitrogen, and 25 additional elements

Galaxie Chromatography Data System

•            Simple Interface for easy method building and data acquisition

•            Password protection eliminates unauthorized data access and method editing

•            Easy for occasional users with customized screens showing just the Information needed

Simpfified user interface

•            Large display with 11 lines and 35 characters/line for easy viewing

•            Easy method navigation for greater productivity

•            Access to all GC parameters for complete method editing and System control

AutoSamplers

•            CP-8400 handles up to 100 samples with liquid, ambient headspace, or optional SPME sampling modes

•            CP-8410 with a fixed Sample trag Supports multiple vial sizes

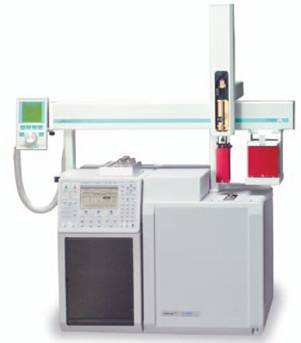

•            Combi PAL offers maximum flexibility for liquid, heated headspace, and SPME applications

•            Archon with Tekmar Vetocity XPTTm for automated Purge and Trap sampling

CP-3800 GC Specifications

Dimensions and Weights

• Size: 53 cm (h) x 66 cm (w) x 56 cm (d)

• Weight: 43 kg

Environmental Conditions

• Operating temperatures: 10°C to 40°C

• Operating humidity (relative): 5% to 95%

• Line voltage requirements: 101V, 120V, 230V (±10% nominal)

Column Oven

• Dimensions: 28 cm (w) x 20 cm (d) x 28 cm (h)

• Temperature range: arnbient +4 °C to 450 °C

• With liquid N ₂ : -99 °C to 450 °C

• VVith liquid CO ₂ : -65 °C to 450 °C

• Temperature program ramps/holds: 7/8

§ Maximum temperature ramp rate: 100 °C /min for all voltages

§ Cool down rate: 400 °C to 50 °C in 4.5 minutes

§ Temperature set-point resolution: 1 °C

Injector Options

• Maximum injectors: three operating concurrently

• Pneumatics: manual or electronic flow control (EFC)

• Columns: capillary columns standard with optional packed column adapter

• Injectors

• CP-1177 Split/Splitless

• 1079 Programmable Temperature Vaporizing (PTV)

• 1061 Flash Megabore/Packed

• 1041 On- Column Megabore/Packed

CP-1177 Split/Splitless

• Pressure range: 0-100 psi

• Total flow: 500 rrillrnin at 10 psi

• Maximum temperature: 450 °C

• Split range: 1-10,000 (column dependent)

1079 Programmable Temperature Vaporizing (PTV)

• Pressure range: 0-100 psi

• Total flow: 500 mL/min at 10 psi

• Temperature range

• -99 °C to 450 °C liquid N ₂

• -65 °C to 450 °C liquid CO ₂

• Maximum temperature ramp rate: 180 °C/min

• Temperature ramps: 4

• Split range: 1-10,000 (column dependent)

•     Operational modes

•     Temperature ramped splitless

•     Cold on-column

•     Large Volurne Injection

•     Split and splitless

•     ChromatoProbe solid sample introduction:

optional

1061 Flash Megabore/Packed

• Pressure range: 0-100 psi

• Total Flow:    50 mL/min (Type 3 EFC)

                        500 mL/min (Type 4 EFC)

• Maximum temperature: 450 °C

1041 On-Column Megabore/Packed

• Pressure range: 0-100 psi

• Total Flow:     50 mL/min (Type 3 EFC)

                        500 mL/min (Type 4 EFC)

• Maximum temperature: 450 °C

Quick-Switch Valve Option

• Instantly switch between injectors/columns and cletectors

• Configurations: automated or manual, factory or field installed

Detector Options

• Maximum detectors: three operating concurrently

• Pneumatics: manual or electronic flow control (EFC)

• Columns: capillary columns standard with optional packed column adapter

• Detectors

•     Flame lonization Detector (FID)

•     Thermal Conductivity Detector (TCD)

•     Electron Capture Detector (ECD)

•     Thermionic Specific Detector (TSD or NPD)

•     Pulsed Flame Photometrie Detector (PFPD)

FID

• Maximum temperature: 450 °C

• Detectivity: 2 pg C/see

• Linear dynamic range: 10 ⁷

• Patented ceramic -Flame tip: standard

• Flame-out detection/auto re-ignition: standard

TCD

• Maximum temperature: 450 °C

• Detectivity: 300 pg/sec (C4)

• Linear dynarnic range: 106

• Filament proteefirm: standard

• Automatic bridge balancing: standard

ECD

• Maximum temperature: 450 °C

• Detectivity: 7 fg/sec Lindane

• Linear dynamic range: 10 ⁴

TSD

• Maximum temperature: 450 °C

• Detectivity:

N: 100 fg N/sec (Azobenzene)

P: 100 fg P/sec (Malathion)

• Maximum temperature: 450 °C

• Linear dynamic range:

N: 10 ⁵

P: 10 ⁴

• Self-aligning bead: standard

PFPD

• Maximum temperature: 450 °C

• Detectivity: using 5/P Photomultiplier Tube

            S: 1 pg S/sec

            P: 100 fg P/sec

            N: 20 pg N/sec

• Linear dynamic range:

S: 10 ³
P: 10 ⁴
N: 10 ²

Electronic Flow Control: injectors

• Module types: 4 injector-specifie modules

• Accuracy: ± 0.1 psi, 5% full scale flow

• Resolution: 0.1 psi or 0.1 mL/rnin

Electronic Flow Control: Detectors

• Module types: 6 detector-specific modules

• Accuracy: ± 7% set point flow

• Resolution: 1 mL/min

Communications

• Three channel analog output time prograrnmable (0-1V or 0-10V): standard

• Three channel digital output and control with TCP/IP Ethernet and LAN connectivity: optional

• Synchronization signals: for 'ready" and 'start" with other devices and data systems

Data Handling

• Star Integrator: optional

• Star Workstation (PC) control: optional

• Galaxie Workstation (PC) control: optional

• Galaxie Chromatography Data System (CDS) client/server control: optional

Other Specifications

• Powered external events: 7

• LCD display: 11 lines, 35 characters/line

• Maximum stored methods with battery protection: 8

• Internal autosampier control: standard

• On-line hell): standard

• Complete local control: standard

Automation Options
CP-8410 Autoinjector

• Sample eapacity: 10 x 2 mL, 6 x 5 mL, and 5 x 10 mL vials

• Dual and duplicate mode: standard Internal standard addition: standard

• Modes of Operation: liquid, standard; ambient headspace, optional; and SPME (Solid Phase Microextraction), optional

• Pre-programmed modes of injection: standard

CP-8400 AutoSampler

• Sample capacity: 100 x 2 mL vials

• Dual and duplicate mode: standard

• Internal standard addition: standard

• Modes of operation: liquid, standard; ambient headspace, optional; and SPME, optional

• Sample heating and cooling: optional

• Pre-programmed müdes of injection: standard

Combi PAL AutoSampler

• Sample trays: two standard and expandable to four

• Tray typcs: 98 x 2 mL vials; 200 x 1 mL vials;
32 x 10 m1120 mL vials; and 96-well plates

• Dual and duplicate mode: standard

• Internal standard addtion: standard

• Modes of Operation: liquid, standard; heated headspace, optional; and SPME, optional

• Sample heating and cooling: standard

• Optional modules: additional sample trays, micro-well plate holders, wach station, SPME fiber bake-out station, dilutor, barcode readers, and flowcell
