X-Tek BT 160 UF
Description:
X-Tek Systems Real time X-ray inspection system BT 160 UF. Inspection of electronic, mechanical and organic samples possible. Imaging system. Cabinet HxWxD: 900x1040x660 mm. Load capacity up to 2 kg.
siehe Storeview
| Objektnummer | B00018288 |
|---|---|
| ID-number | 018288 |
| Object name | X-Tek BT 160 UF |
| Status | Archiv |
Status, terms of delivery and payment
Verification of devices
The second-hand devices are verified by Labexchange Service GmbH before delivery. You are receiving only fully functional devices.
Dispatch time
The stated dispatch times are the shortest possible ones for each article. The effective dispatch times can vary. The effective dispatch times will be stated in the order confirmation.
As a matter of principle, we are offering collective deliveries. The shipping time is calculated based on the position with the longest lead time. A partial delivery is possible on explicit request.
Shipping methods
Parcel services, forwarding agencies, self-pickup, delivery by Labexchange fleet.
Delivery information
Prices exclude shipping costs. Stated shipping costs are to be expected. Deviations are possible. If transport costs are not specified, please ask separately for them.
The stated transport and packing charges apply to the most favorable route if transport and are to be understood as subject to verification due to unexpected cost increases. By reason of unpredictable events, cargo rates and delivery times can change at any time and therefore have to be adapted to the recent situation. Import formalities and possible customs charges will be borne by the purchaser. Incoterm coding according to Incoterms 2010: For persons who collect the devices themselves: EXW, for dipatch by sea: CFR, by air freight: CPT, other shipments: DAP. Note for international shipments: A proof of preference/EUR1 will not be issued by us. When self-collecting/ordering EXW from countries within or outside the European Union, 16% VAT will be retained as a deposit until we have received the corresponding confirmation of arrival/bill of delivery from the buyer.
Terms of payment
We do not accept payment by letter of credit, PayPal, etc. In each case the invoice amount is payable without deduction. Discount is not granted.
|
Country |
Possible payment methods |
Comment |
|
DE, AT, CH |
Payment by invoice, payment in advance, paymet by credit card |
Payment by invoice is only possible for corporate clients. |
|
NL, BE, LU |
Payment by invoice, payment in advance, payment by credit card |
Payment by invoice is only possible for corporate clients |
|
Other countries |
Payment in advance, payment by credit card |
|
Our General Terms of Sale, Delivery and Payment are valid and are available for download here.
The goods are offered subject to prior sale.
Definition of status
All articles are used articles, except an article is listed especially as a new device.
|
Status |
Condition |
Comment |
|
Immediately available |
Used | The article is fully functional and in impeccable condition. It can be shipped immediately. |
| In stock |
Used |
The article is on stock. Our service technicians will verify the article before delivery. You are receiving only a fully functional article. |
|
Published |
Used |
The article is still with the provider. After your order the article will be purchased and verified by us before being shipped to you. A certificate of operativeness as well as a service report are included in delivery. |
|
New device |
new |
The article is brand new and unused. Regarding new equipment the guarantee/warranty conditions of the corresponding manufacturer apply. |
|
Labprocure |
Used |
Labprocure GmbH, as the advertiser, is responsible for the content of this device offer. Labprocure assumes liability for the offers advertised here and for the photos and offer texts included. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen. |
model : BT 160
annotation : Dokumente engl.
The following illustrations and descriptions refer to the instrument model and are drawn from brochures. They do not represent the scope of delivery. Please refer to the text of the offer for the exact scope of delivery.

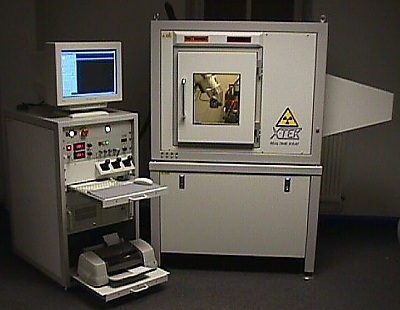

BENCHTOP MICROFOCUS X-RAY
Real-time microfocal radiography is recognised as one of the most advanced non-destructive inspection techniques available. Hidden or buried features, such as voiding, porosity, IC die and wire Bonding, internal seals, solder joints, etc. can be analysed inside all metal, plastic and ceramic packaging.
The "Benchtop" has a fully shielded and interlocked enclosure, which is safe for continuous use by unbadged personnel and is simple to operate.
The item to be inspected is placed in the sample manipulator, between x-ray source and detector, the door closed and x-rays switched on. X-rays penetrating the sample strike the front scintillator plate of an x-ray sensitive image intensifier, whose visible light output is collected by a high resolution CCD video camera. The sample can be seen through the large viewing window and manoeuvred freely in 5 axes, as the live x-ray image is studied on the monitor. X, Y, Z, rotation and tilt are provided by the manipulator, which is controlled via proportional joysticks to facilitate optimum positioning of the sample.
The x-ray image can be further enhanced by adding a choice of video image processing systems, offering functions including pseudo 3D, edge and colour enhancement, micrometry, wire sweep and % void calculations.
With x-ray energies up to 160kV, electronic components, hybrids, and assemblies, as well as small mechanical components can bt inspected with ease. The unique "Ultrafocus" target, with its micron focal spot just 6mm behind the output window, produce5 sharp images of IC bond wires at 100 times magnification.
Installation requires just a single 240V mains connection. The vacuum systems and cooling circuits are entirely seif contained.
Naturally, Full Operator training and lifetime Backup are provided The x-ray source is customer serviceable, and target and filameni changes are quick and easy, resulting in minimal cost of ownership.
SPECIFICATION
X-ray source:
X-Tek "open type" de-mountable tube.
Operating voltage options: 30 to 100kV, 125kV or 160kV.
Beam current: 1mA max.
X-ray power options 60 watts, 100 watts, 200 watts.
Focal spot size options: 5 micron, 10 micron.
Target: Indexable tungsten.
Target cooling: Closed circuit recirculating water or air.
Vacuum system: Turbo-molecular with 2 stage rotary vane backing.
X-Ray control: kV, mA, Auto-focus, Auto-Power limit.
Imaging system:
150mm (100mm optional) x-ray image intensifier coupled to high resolution CCD camera.
High quality 14" black and white monitor.
Image processing options to suit application.
Sample manipulator:
Remote joy stick controlled precision 5 axis.
Variable Speed and overload protection on all axes.
Load capacity 2Kg.
Travel: X axis 200mm
Y axis 200mm
Z axis 500nun
Rotate 360 deg.
Tilt+/- 30 deg.
Cabinet
Lead shielded enclosure, hinged shielded and interlocked access door with viewing window.
Waming lights and safety interlock control circuits including key Lockout switch.
Dimension: Height - 900mm
Length - 1040mm + 450mm imaging extension.
Depth - 660mm
The enclosure meets all international safety standards.
The system can be customised to suit specific application, full details from X-Tek.
Due to constant improvement and development the above specification is subject to change.
