Qiagen BioRobot 9604
| Objektnummer | B00010459 |
|---|---|
| ID-number | 010459 |
| Object name | Qiagen BioRobot 9604 |
| Status | Stock unit |
Product group: Pipetting systems
Status, terms of delivery and payment
Verification of devices
The second-hand devices are verified by Labexchange Service GmbH before delivery. You are receiving only fully functional devices.
Dispatch time
The stated dispatch times are the shortest possible ones for each article. The effective dispatch times can vary. The effective dispatch times will be stated in the order confirmation.
As a matter of principle, we are offering collective deliveries. The shipping time is calculated based on the position with the longest lead time. A partial delivery is possible on explicit request.
Shipping methods
Parcel services, forwarding agencies, self-pickup, delivery by Labexchange fleet.
Delivery information
Prices exclude shipping costs. Stated shipping costs are to be expected. Deviations are possible. If transport costs are not specified, please ask separately for them.
The stated transport and packing charges apply to the most favorable route if transport and are to be understood as subject to verification due to unexpected cost increases. By reason of unpredictable events, cargo rates and delivery times can change at any time and therefore have to be adapted to the recent situation. Import formalities and possible customs charges will be borne by the purchaser. Incoterm coding according to Incoterms 2010: For persons who collect the devices themselves: EXW, for dipatch by sea: CFR, by air freight: CPT, other shipments: DAP. Note for international shipments: A proof of preference/EUR1 will not be issued by us. When self-collecting/ordering EXW from countries within or outside the European Union, 16% VAT will be retained as a deposit until we have received the corresponding confirmation of arrival/bill of delivery from the buyer.
Terms of payment
We do not accept payment by letter of credit, PayPal, etc. In each case the invoice amount is payable without deduction. Discount is not granted.
|
Country |
Possible payment methods |
Comment |
|
DE, AT, CH |
Payment by invoice, payment in advance, paymet by credit card |
Payment by invoice is only possible for corporate clients. |
|
NL, BE, LU |
Payment by invoice, payment in advance, payment by credit card |
Payment by invoice is only possible for corporate clients |
|
Other countries |
Payment in advance, payment by credit card |
|
Our General Terms of Sale, Delivery and Payment are valid and are available for download here.
The goods are offered subject to prior sale.
Definition of status
All articles are used articles, except an article is listed especially as a new device.
|
Status |
Condition |
Comment |
|
Immediately available |
Used | The article is fully functional and in impeccable condition. It can be shipped immediately. |
| In stock |
Used |
The article is on stock. Our service technicians will verify the article before delivery. You are receiving only a fully functional article. |
|
Published |
Used |
The article is still with the provider. After your order the article will be purchased and verified by us before being shipped to you. A certificate of operativeness as well as a service report are included in delivery. |
|
New device |
new |
The article is brand new and unused. Regarding new equipment the guarantee/warranty conditions of the corresponding manufacturer apply. |
|
Labprocure |
Used |
Labprocure GmbH, as the advertiser, is responsible for the content of this device offer. Labprocure assumes liability for the offers advertised here and for the photos and offer texts included. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen. |

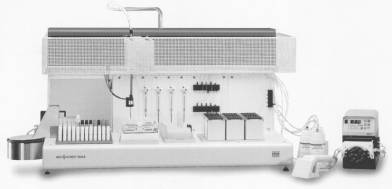

The QIAGEN® BioRobot"" 9604 is a molecular biology workstation for the automated isolation of nucleic acids from clinical and research samples. Nucleic acids purified on the BioRobot 9604 are ready for use in a wide range of demanding and sensitive downstream applications performed in highthroughput laboratories, including molecular diagnostic, research, pharmaceutical, and plasma-fractionation facilities.
The BioRobot 9604 is specifically developed for efficient high-throughput preparation of nucleic acids from a wide variety of sources. The prepared material is suitable for use in the most demanding and sensitive downstream biomolecular nucleic acid analysis.
The BioRobot 9604 provides:
Excellent reproducibility through accurate dispensation, aspiration and optimized kits.
Simplified standardization.
Documentation of the entire sample preparation process. Increased safety of personnel through less contact with possible infectious body fluids and organisms.
Increased productivity by combining high speed with minimal user interaction leaving you more time for other tasks.
The BioRobot 9604 Integrated Modular Design Concept
The BioRobot 9604 purification system uses integrated components for dependable results.
- The robotic arm and specially designed tip-adapters and tips provide precise reagent dispensing and aspiration.
- The dilutor system(s) regulates the flow of system liquid for precise liquid dispensing.
- The High-Speed Pipetting System accurately dispenses larger quantities of liquids.
- The dedicated wash station, and the Tip-Change System ensures zero-contamination sampling and liquid transfer.
- The worktable holds all buffers and racks in exactly the right position.
- The vacuum manifold with integrated pressure control guarantees rapid and thorough filtration as an efficient separation step.
- The Sample Identification System identifies the samples from their bar-code to track and document their progress through the entire protocol.
- The Labware Identification System identifies labware (e.g. square-well blocks) to assist in sample tracking and documentation.
- The QlAsoft 3.0 Operating System controls all procedures for the BioRobot 9604. The system is a user-friendly software which operates on the high-quality computer supplied.

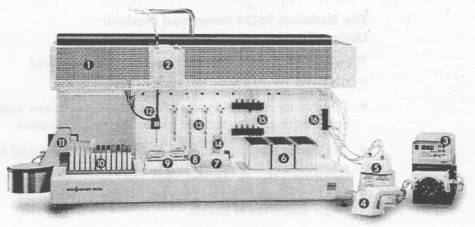

Figure 1-1 The BioRobot 9604
1 Safety Shield
2 X-Y-Z Robotic Arm
3 Peristaltic Pump
4 Labware Identification System
5 Reagent Delivery Module
6 Disposable-Tip Racks
7 Multipurpose Slot
8 Thermoblock Slot
9 Vacuum Manifold System
10 Sample Identification System
11 Tip-Disposal Station
12 Z-Bars with Tip-Adapters
13 Dilutors
14 Wash Station
15 Solenoid Valves
16 4-way Distributor
QIAsoft 3.0 Operating System
QIAsoft 3.0 software is the operating software for the BioRobot 9604. lt was written and developed for use with the QIAGEN BioRobot Systems.
QIAsoft 3.0 software uses the Microsoft Windows © 95 Operating System. We recommend you should have some previous experience in using Windows 95 applications. There is also a QIAsoft 3.0 Operating System Developer Package available which expands the capabilities of your BioRobot 9604. This package allows you to create your own protocols and to configure the worktable to your own requirements.
General Information
The QIAsoft 3.0 Operating System controls microprocessors, CPUs, circuit boards, encoded DC motors, and stepper motors to ensure pinpoint accuracy and reliability.
An example of the precision of this integrated technology is seen when the microprocessor records the probe and the robotic arm's exact position at all times. This allows protocols to continue from precisely the same place after an interruption.
The QIAsoft 3.0 software opens in the Execute environment. The Execute environment contains the QIAGEN preprogrammed protocols.
Interacting with Windows 95
QIAsoft 3.0 software uses the Windows 95 operating system.
Opening Protocols
The QIAsoft 3.0 software opens in the Execute environment at the protocol shown in the toolbar protocol field.
For further protocols, select one from the drop down list in the protocol field.
QIAGEN is continually developing new protocols for the BioRobot 9604 and these will be mode available as soon as they are ready.
Technical data
Dimensions Width:1.50 m (47.2 in.)
Height:0.60 m (23.6 in.)
Depth:0.71 m (28.0 in.)
Mass (Weight) 95 kg (143 Ibs) approximately
Power requirements 100 V to 120 V AC, 50-60 Hz, 350 VA (self
regulating) USA
220 V to 240 V AC, 50-60 HZ, 350 VA (self regulating) Europe
Fuses peristaltic pump 2.5 A, USA
1.25 A, Europe
Computer 166 MHz, Pentium
16 MB RAM,
1.6 GB Hard Disk,
3 1/2" Diskette Drive,
VGA Color Monitor,
Keyboard,
Mouse IBM PS/2 Compatible
Software QlAsoft 3.0 Operating System running on MS Windows 95
Interface RS 232 C/CCITT V.24 asynchronous serial ASCII
Ambient operating 15°C to 30°C (60°F to 85°F).
temperature
Humidity range 10% to 85% relative humidity without condensation.
Liquid level detection The tip adapters with conducting tips functions as liquid detectors by measuring the changes in capacitance when entering or leaving a liquid.
Tip adapters The tip adapter is mode of ceramic-coated stainless steel and is designed to eliminate droplet formation.
Tips Volume 1.1 ml, conducting.
Wash station Inner and outer surfaces of the tip can be thoroughly washed using distilled or deionized water, or a disinfectant solution.
Carryover Residual sample or reagent adhering to the tip adopter or tip will be diluted by a factor of 10 7 when washed with distilled or deionized water.
Sample or reagent carryover are eliminated when using the Tip- Change System.
Dilutor Each Dilutor Syringe delivers from a minimum of 25 µl to a Maximum of 1000 µI.
Liquid delivery accuracy:
3% RSD at volumes from 25 µl to 100 µl 2% RSD at volumes from 100 µI to 1000 µl
High-Speed Pipetting The High-Speed Pipetting System operates at speeds from
System to 2 to 240 revolutions per minute delivering 0.86 to 103.2 ml/min.
Accuracy of the pump is controlled by a light-barrier encoder.
Power Requirements:
100 V to 120 V AC, USA
220 V to 240 V AC, Europe
Liquid Delivery Accuracy:
2% RSD at volumes greater than 700 µl per well
4% RSD at volumes from 200 µl to 700 µl per well
Tip-Change System The Tip-Change System is equipped with racks for holding 6 x 96 conductive disposable tips.
Used tips are disposed under microprocessor control at the Tip- Disposal Station into a fully enclosed plastic waste bag.
Sensing of tip attachment and detachment is performed electronically.
A cooling block for the setup of reaction mixes is provided.
Vacuum manifold The Vacuum Manifold can accommodate a 96-well microplate.
Samples can be eluted into 96-well microplates, deep-well blocks, or collection tubes.
The pressure is regulated by microprocessor.
Vacuum pump The Vacuum Pump pressure is microprocessor regulated and the pressure can be controlled from atmospheric pressure 1000 mbar to 150 mbar.
Sample Identification System
Dimensions
Area Width: 24 cm (9.54 in.)
Height: 12 cm (4.72 in.)
Depth: 56.5m (22.24 in.)
Barcode camera Width: 91 mm (3.59 in.)
Height: 82 mm (3.23 in.)
Depth: 41 mm (1.62 in.)
Reading field 80 mm (3.15 in) x 10 mm (0.39 in)
Reflectance Light bar: 0.45 min.
Dark bar: 0.25 max.
PCS Value PCS Value ≥ 0.45
Barcode Length: 80 mm (3.15 in) max. (including left/right margins) Height: 10 mm (0.39 in) min. recommended
Compatible bar codes EAN 13, EAN 8, UPC-E. coli, UPC-E. coli, CODE39,
CODE93, CODE128, CODABAR (NW-7);
UPC/EAN with supplemental codes 2 of 5 Interleaved, 2 of 5 Standard
Labware identification system
Reading field 65 mm (2.56 in)
Reflectance Light bar: 0.45 min.
Dark bar: 0.25 max.
PCS Value min 15% (Datalogic Test Chart)
Bar code label Length: 65 mm (2.56 in) max. (including left/right margins) Height: 10 mm (0.39 in) min. recommended
Compatible barcodes EAN 13, EAN 8, UPC-E. coli, UPC-E. coli, CODE39,
CODE93, CODE128, CODABAR (NW-7);
UPC/EAN with supplemental codes 2 of 5 Interleaved,
2 of 5 Standard,
Code 2 of 5 Striche Industrie, Code 2 of 5 Striche IATA, code 2 of 5 Striche Matrix, Code CIP, MSI, Plessey, Code 11, IBM Delta Distance, Telepen
Mass (Weight) approximately 65 g (2.29 oz)
without cable
Cable length 2 m (78.7 in)
