Pharmacia Frac 100
| Objektnummer | B00001530 |
|---|---|
| ID-number | 001530 |
| Object name | Pharmacia Frac 100 |
| Status | Stock unit |
Product group: HPLC-Miscellaneous
Status, terms of delivery and payment
Verification of devices
The second-hand devices are verified by Labexchange Service GmbH before delivery. You are receiving only fully functional devices.
Dispatch time
The stated dispatch times are the shortest possible ones for each article. The effective dispatch times can vary. The effective dispatch times will be stated in the order confirmation.
As a matter of principle, we are offering collective deliveries. The shipping time is calculated based on the position with the longest lead time. A partial delivery is possible on explicit request.
Shipping methods
Parcel services, forwarding agencies, self-pickup, delivery by Labexchange fleet.
Delivery information
Prices exclude shipping costs. Stated shipping costs are to be expected. Deviations are possible. If transport costs are not specified, please ask separately for them.
The stated transport and packing charges apply to the most favorable route if transport and are to be understood as subject to verification due to unexpected cost increases. By reason of unpredictable events, cargo rates and delivery times can change at any time and therefore have to be adapted to the recent situation. Import formalities and possible customs charges will be borne by the purchaser. Incoterm coding according to Incoterms 2010: For persons who collect the devices themselves: EXW, for dipatch by sea: CFR, by air freight: CPT, other shipments: DAP. Note for international shipments: A proof of preference/EUR1 will not be issued by us. When self-collecting/ordering EXW from countries within or outside the European Union, 16% VAT will be retained as a deposit until we have received the corresponding confirmation of arrival/bill of delivery from the buyer.
Terms of payment
We do not accept payment by letter of credit, PayPal, etc. In each case the invoice amount is payable without deduction. Discount is not granted.
|
Country |
Possible payment methods |
Comment |
|
DE, AT, CH |
Payment by invoice, payment in advance, paymet by credit card |
Payment by invoice is only possible for corporate clients. |
|
NL, BE, LU |
Payment by invoice, payment in advance, payment by credit card |
Payment by invoice is only possible for corporate clients |
|
Other countries |
Payment in advance, payment by credit card |
|
Our General Terms of Sale, Delivery and Payment are valid and are available for download here.
The goods are offered subject to prior sale.
Definition of status
All articles are used articles, except an article is listed especially as a new device.
|
Status |
Condition |
Comment |
|
Immediately available |
Used | The article is fully functional and in impeccable condition. It can be shipped immediately. |
| In stock |
Used |
The article is on stock. Our service technicians will verify the article before delivery. You are receiving only a fully functional article. |
|
Published |
Used |
The article is still with the provider. After your order the article will be purchased and verified by us before being shipped to you. A certificate of operativeness as well as a service report are included in delivery. |
|
New device |
new |
The article is brand new and unused. Regarding new equipment the guarantee/warranty conditions of the corresponding manufacturer apply. |
|
Labprocure |
Used |
Labprocure GmbH, as the advertiser, is responsible for the content of this device offer. Labprocure assumes liability for the offers advertised here and for the photos and offer texts included. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen. |

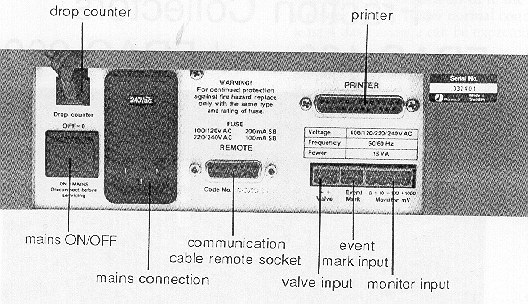

Rear panel
Fig. 2. Rear panel
Mains - ON/OFF switch. When the red circle is visible the instrument is 0ff.
Mains connection - Mains power connection, fuse fuse holder and a rotary selector switch that adapts the instrument t different mains voltage (100/120/220/240±10 % VAC).
Remote - A 15-pin connector for operation of the instrument from a remote source or for control of a pump, e.g. Peristaltic Pump P-1/ MicroPerpex S.
Valve - Removable plug with screw contacts for connecting an accessory valve e.g. Valve PSV-100. Note: switch the instrument off before attempting to connect or disconnect a valve.
Event mark - Removable plug with screw contacts for connecting an event marker operated by contact closure, 0.2 sec.
Monitor - Removable plug with screw contacts for connecting a monitor giving a signal of 10, 100 or 1000 mV.
Drop counter - Socket for drop counter cable from delivery arm. Also suitable for drop counter option for FRAC- 100.
Printer A 25-pin female D-type connector (FRAC-200 only).
Short instruction
A Short lnstruction panel for day-to-day guidance in the operation of the fraction collector is mounted directly under the keyboard.
Delivery arm
The delivery arm positions the delivery tubing over tubes in the rack. A tube is located by a tube sensor which rests against the top of the tube. The pressure of the sensor against the tube operates a switch which sends a signal to the control circuit.
Technical specifications
Tube racks Diameter range Height range Max. number per rack
12 mm rack 12 mm 50-180 mm 175
18 mm rack 10-18 mm 50-1 80 mm* 95
28 mm rack 28mm 30-180 mm 45
*If >100 mm, diameter must be 10 % of height.
Tubing 1.7-2 mm outer diameter
Tube change time Maximum tube change times for each track
(outer to inner tracks)
Tube rack 12 mm Track 1 0.2 sec Track 3 0.3 sec
Track 5 0.4 sec
Tube rack 18 mm Track 1 0.3 sec Track 2 0.4 sec
Track 3 0.5 sec Track 4 0.6 sec
Tube rack 28 mm Track 1 0.4 sec Track 2 0.55 sec
Track 3 0.7 sec
Fraction sizes
Tirne 0.01-99.99 min (0.01 min increments)
100-999.9 min (0.1 min increments)
1000-9999 min (1 min increments)
within an accuracy of ± 0.02%
Volume 0.01-99.99 ml (0.01 ml increments)
100-999.9 ml (0.1 ml increments)
1000-9999 ml (1 ml increments)
within and accuracy of ± 0.02%
Drops 1-9999 (1 drop increments)
FRAC-100 requires optional accessory
Peak memory Stores up to 11 peaks (FRAC-100),
or 19 peaks (FRAC-200)
Peak evaluation Displays peak height (% Full Scale, FS),
peak area (min % FS or ml % FS or drop
% FS); elution time (min), volume (ml) or
drop number at peak maximum; duration
in time, volume or drops of peak; tube
number of first and last tubes containing
peak and tube at peak maximum
Run evaluation Displays time, volume or drop number
remaining in current fraction; tube number,
time, volume or drop number from start;
flow rate (ml, drops/min only), monitor
signal (% FS) total number of peaks
collected; time, volume or drop number of
last power failure
Memory protection Programmed parameters and stored data
are guaranteed for at least 1 hour after the
instrument is switched off or in the event of
a power failure. Under normal conditions at
least 4 days storage can be expected
Event marker 0.2 sec for both contact closure and TTL
outport in remote socket.
Programmable delay.
Chemical resistance
ChemicaI Resistance ChemicaI Resistance
Acetone + Tetrahydrofurane +
Acetonitrile + Toluene +
Chloroform + 2.5 M NaCI/HCI +
Dichlorethane + 8 M Urea +
Ethanol + 5 M Ammonia +
thanolamine + 5 M NaCI +
Ethylacetate + 50% Acetic acid +
Hexane + 20% Phosphoric acid +
Isopropanol + Conc. Sulphuric acid* +/-
Methanol +
* withstands spill
Remote control 15-pin female D-type connector, TTL
compatible signals
Inport: Outport:
recycle event marker
flow rate stop pump
run FRAC operable
pause
feed
remote controller operable
Printer output 25-pin female D-type connector; RS 232 C
serial interface; Baud rate 9600 with 8 bits
and 1 stop bit. FRAC-200 only
Valve output Nominal 24 V output, screw contacts
Monitor input 10, 100 or 1000 mV; 5 readings/sec; screw
contacts
Voltage 100/120 /220/240 ±10 % VAC
Frequency 48-62 Hz
Power consumption 15 W
Operating temperature 4-40°C
Dimensions 290x300x390 mm (L x W x H)
Weight 5.5 kg (12 lb)
Safety standards Electronics designed according to IEC and
UL requirements
