Petrotest Schaumtester

ID-number: 017104

Status: Archived Product

Shipping:

Description:

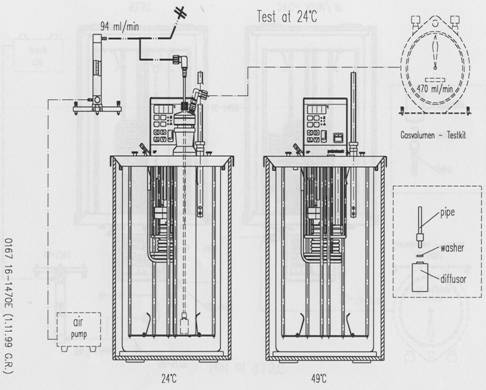

Petrotest Double/quadruple bain Foam test equipment. Norm:ASTM D892, IP 146 und DIN 51566. 2x mixing top-hat 1000:10mL. . 2 x bath 20L. Thermometer. Hold rack for 8 examining top-hats.

siehe Storeview

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Information
Objektnummer	B00017104
ID-number	017104
Object name	Petrotest Schaumtester
Status	Archiv

Status, terms of delivery and payment

Verification of devices

The second-hand devices are verified by Labexchange Service GmbH before delivery. You are receiving only fully functional devices.

Dispatch time

The stated dispatch times are the shortest possible ones for each article. The effective dispatch times can vary. The effective dispatch times will be stated in the order confirmation.

As a matter of principle, we are offering collective deliveries. The shipping time is calculated based on the position with the longest lead time. A partial delivery is possible on explicit request.

Shipping methods

Parcel services, forwarding agencies, self-pickup, delivery by Labexchange fleet.

Delivery information

Prices exclude shipping costs. Stated shipping costs are to be expected. Deviations are possible. If transport costs are not specified, please ask separately for them.

The stated transport and packing charges apply to the most favorable route if transport and are to be understood as subject to verification due to unexpected cost increases. By reason of unpredictable events, cargo rates and delivery times can change at any time and therefore have to be adapted to the recent situation. Import formalities and possible customs charges will be borne by the purchaser. Incoterm coding according to Incoterms 2010: For persons who collect the devices themselves: EXW, for dipatch by sea: CFR, by air freight: CPT, other shipments: DAP. Note for international shipments: A proof of preference/EUR1 will not be issued by us. When self-collecting/ordering EXW from countries within or outside the European Union, 16% VAT will be retained as a deposit until we have received the corresponding confirmation of arrival/bill of delivery from the buyer.

Terms of payment

We do not accept payment by letter of credit, PayPal, etc. In each case the invoice amount is payable without deduction. Discount is not granted.

Country	Possible payment methods	Comment
DE, AT, CH	Payment by invoice, payment in advance, paymet by credit card	Payment by invoice is only possible for corporate clients.
NL, BE, LU	Payment by invoice, payment in advance, payment by credit card	Payment by invoice is only possible for corporate clients
Other countries	Payment in advance, payment by credit card

Our General Terms of Sale, Delivery and Payment are valid and are available for download here.

The goods are offered subject to prior sale.

Definition of status

All articles are used articles, except an article is listed especially as a new device.

Status	Condition	Comment
Immediately available	Used	The article is fully functional and in impeccable condition. It can be shipped immediately.
In stock	Used	The article is on stock. Our service technicians will verify the article before delivery. You are receiving only a fully functional article.
Published	Used	The article is still with the provider. After your order the article will be purchased and verified by us before being shipped to you. A certificate of operativeness as well as a service report are included in delivery.
New device	new	The article is brand new and unused. Regarding new equipment the guarantee/warranty conditions of the corresponding manufacturer apply.
Labprocure	Used	Labprocure GmbH, as the advertiser, is responsible for the content of this device offer. Labprocure assumes liability for the offers advertised here and for the photos and offer texts included. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen.

manufacturer: Petrotest

model: Schaumtester

annotation: Dokumente engl.

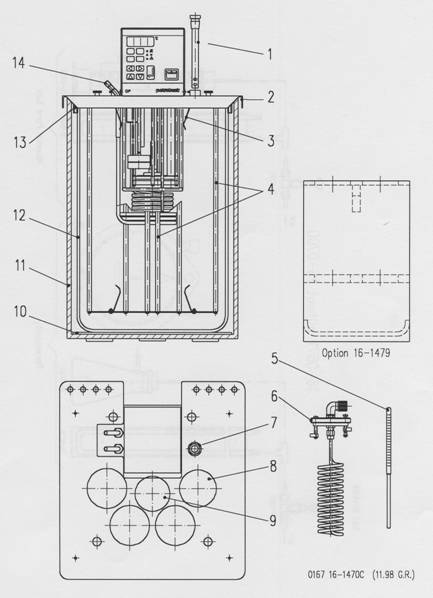

The following illustrations and descriptions refer to the instrument model and are drawn from brochures. They do not represent the scope of delivery. Please refer to the text of the offer for the exact scope of delivery.

DP petrotest

Technical Specifications

Working temperature range °C 22 ... 200

.......with water cooling °C 20 ... 200

Temperature stability K ±0,01

Temperature selection digital, via keypad

Temperature display MULTI-DISPLAY (LED)

Resolution K 0,1

ATC - Absolute Temperature Calibration K ±3

Temperature control PID

Working temperature sensor PTC

Safety sensor PTC

Heater wattage (230 V / 115 V) W 2000/1000

Circulation pump:

pressure, max. mbar at 0 l 320

discharge, max. l/min at 0 mbar 15

Usable bath depth mm 210

Overall dimensions (WxDxH) mm 125x160x355

Weight kg 3,4

Ambient temperature °C 5... 40

Mains power connection ±10 % V / Hz 230/50, 115/60, 100/50-60

Total power consumption W 2070 , 1070 , 1070

mains voltage: 230 V / 50 Hz ambient temperature: 20 °C

bath liquid: water operating temperature: 70 °C

Safety Installations (DIN 12879)

Excess temperature protection adjustable from 20 to 220 °C

Low liquid level protection float switch

Safety class 2

Supplementary safety installations:

High temperature warning function optical + audible (in intervals)

Low temperature warning function optical + audible (in intervals)

Supervision of the working sensor plausibility control

Alarm indication optical + audible

Standards

EMC regulations EN 50081-2 / EN 50082-2

Guideline for first voltage range EN 61010

Description

The circulators are suitable for temperature application to liquids in a bath tank.

The main functional elements are the heater, circulation pump, and control electronics. An electronic proportional temperature control (PID characteristic) adapts the hegt supplied to the thermal requirements of the bath.

Setting is rapid and simple using the keypad wich its easy to leam symbols. Keypad is splash-proof, easily cleaned and ergonomically designed.

The built-in microprocessor enables adjustment and setting of the working temperature and the desired overtemperature and low temperature warning Limits. The adjusted settings are displayed on MULTI-DISPLAY.

The safety value for excess temperature protection, a safety Installation independent from the control circuit, is adjustable on the rear.

The RS232C port pen-nits modern process engineering without additional Interface, directly an-live, from the circulator to your application equipment.

The circulator conforms to the safety requirements specified by DIN 12 879 (safety class 2), as well as DIN 58 966 and the guideline for ferst voltage range EN 61010.
