manufacturer :       Nikon

model :                   Eclipse E800M

annotation :           Dokumente engl.

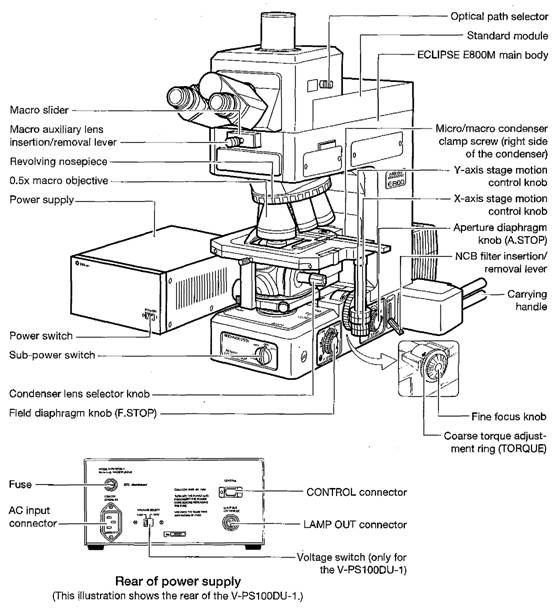

The ECLIPSE E800M main body, the 0.5x macro objective, the macro slider and the revolving nosepiece have been factory-adjusted to each.other and labeied with the same manufacturing number. Don't assemble the Parts with different manufacturing numbers in order to ensure satisfactory performance.

ELLIPSE E800M (main body of the microscope)

Power source:                     For 100/120 V area:   V-PS1 OODU-1 power supply

                                            For 230 V area :          V-PS100E power supply

Input voltage:                        12 V DC

Light source:                        Lamp rating: 12 V DC, 100 W

                                            Lamp type:     Halogen lamp

                                                                  (OSRAM HLX 64623 or PHILIPS 7724)

Protection class:                  Class I

Operating environmental     Temperature:       0° to +40°C

conditio ns :                            Humidity:              85% Rh max., noncondensing

                                            Attitude:                2000 m max.

                                            Pollution:              Degree 2

                                            Installation:           Category II

                                            Indoor use only

Conforming standards         • UL listed product

( for 100/120 V area):            • FCC 15B Class A satisfied

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numerique de la Classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

Conforming standards         • GS-approved product

( for 230 V area):                   • EU Low Voltage Directive satisfied

                                            • EU EMC Directive satisfied

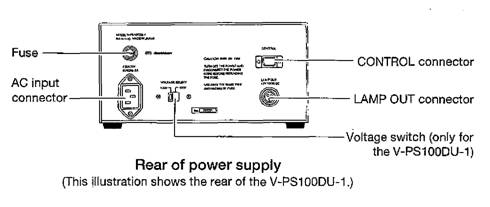

n V-PS1 OODU-1 (Power supply for 100/120 V area)

n V-PS100E (Power supply for 230 V area )

Refer to the instruction manual provided with the V-PS1OODU-1 or V-PS100E power supply.

User Comfort and Ergonomie Design Buift Right in

·           Advanced Ergonomie Design allows Operation from a natural posture without strain. Focus control, stage handle field diaphragm and power controls are placed within easy reach.

·           Low stage design for easy manipulation of revolving nosepiece and specimen handling.

·           Three-way tilting trinocular tube adjusts from 10-30 degrees for the most comfortable viewing angle.

·           Ultra stable, modular design - aceepts a complete line of dedicated modules integrated into the structure of the stand without compromising optical performance and stability.

·           Wide base and arm ensures stable image acquisitions at high magnifications. Can withstand loads live times heavier than conventional models.

Unmatched Optical Quality

·           CFI60 Optics - langest working distance with high numerical aperture objectives.

·           Widest magnification range and the world's first 0.5X objective (for actual size documentation).

·           Langer parallel optical path and unequaled fluorescence observation capability.

·           lmproved lamphouse Illumination (12V1100W externe! transformer).

·           Integrated 5 place linear fluorescence filter changer.
Easy access to controls an front of microscope.

Other Features of E800

·           Ultra-wide viewing is standard with 25mm field number eyepieces.

·           Interchangeable, 6-position reversed nosepiece.

·       215° centerable and rotatabre stage to facilitate framing during photomicrography.

·       Four buk-1n diascopic

·       Available E800M stand for macro observation with exclusive Plan Achromat 0.5X objective for 1:1 specimen documentation.

·       Unique drum type triple macro condenser allows the same condenser to be used from 0.5X to 100X.

Specifications

Magnification

10x- 1500x( 5x-1500x) in E800M; Up to 3000x with Mag. Module) for observation 2x-500x(1x-500x in E800M; Up to 1000x with Mag. Module) for 35mm photomicrography

Optical system

CFI60 System (Infinity optical system)

Parfocal distance

60mm

Eyepiece tube

V-TF Trinocular tube (Inclinaton angle 20° V-TE Tilting Trinocular tube (Tilting type: 10 – 30°) Eyelevel is constant with or without intermediate module Siedentopf type (Interpupilary distance: 51 – 80mm), F.O.V.: 25 mm

Eyepiece

10x (F.O.V.: 25mm) Diameter: 32mm

Option: 10F (F.O.V. 22mm), 15x (F.O.V. 14mm)

Photo lens

PLI Projection lens: 2x, 2.5x, 4x, 5x

Epi-fluorescence

Built-in type (Inserted into the arm)

Illuminator (Option)

5 filter blocks mountable

Nosepiece

Sextuple Nosepiece, Sextuple DIC

Nosepiece (Analyzer slot equipped)

Coarse/fine focusing

Fine: 0.1 mm pre rotation, Coarse:

12.7mm per rotation

Minimum reading: 1 micron on left side knob

Coarse motion torque adjustable

Refocusing stopper incorporated

Stage handle and focusing knob are at equal distance form the operator

Stage

Hard cating paint type

Rectangular 146mm x 212.5mm surface stage,

78mm x 54mm cross travel range using

Low-positioned coaxial X and Y motion control

Knob on right-hand side

Centerable by hex key, 215 degrees

Rotatable (Ball bearing) with 2 glaxx plates

Substage

Vertical movement range: 32 mm

Illumination

12V 100W LL Halogen Lamp, Precentered and prefocused,

(Option: Centerable with reflection mirror type)

Autophoto switch (Adjustable 8-10V with 0.1V step) equipped

Filters

Filter magazine incorporated and detachable:

Accepts 5 filters (Standard: ND2, ND8, ND32, GIF, Diffuser)

NCB11 filter separately equipped

Optional filters (dia. 52mm wratten filters) mountable on field lens unit
