Objektnummer	B00013326
ID-number	013326
Object name	Millipore AFS 10
Status	Archiv

Status, terms of delivery and payment

Verification of devices

The second-hand devices are verified by Labexchange Service GmbH before delivery. You are receiving only fully functional devices.

Dispatch time

The stated dispatch times are the shortest possible ones for each article. The effective dispatch times can vary. The effective dispatch times will be stated in the order confirmation.

As a matter of principle, we are offering collective deliveries. The shipping time is calculated based on the position with the longest lead time. A partial delivery is possible on explicit request.

Shipping methods

Parcel services, forwarding agencies, self-pickup, delivery by Labexchange fleet.

Delivery information

Prices exclude shipping costs. Stated shipping costs are to be expected. Deviations are possible. If transport costs are not specified, please ask separately for them.

The stated transport and packing charges apply to the most favorable route if transport and are to be understood as subject to verification due to unexpected cost increases. By reason of unpredictable events, cargo rates and delivery times can change at any time and therefore have to be adapted to the recent situation. Import formalities and possible customs charges will be borne by the purchaser. Incoterm coding according to Incoterms 2010: For persons who collect the devices themselves: EXW, for dipatch by sea: CFR, by air freight: CPT, other shipments: DAP. Note for international shipments: A proof of preference/EUR1 will not be issued by us. When self-collecting/ordering EXW from countries within or outside the European Union, 16% VAT will be retained as a deposit until we have received the corresponding confirmation of arrival/bill of delivery from the buyer.

Terms of payment

We do not accept payment by letter of credit, PayPal, etc. In each case the invoice amount is payable without deduction. Discount is not granted.

Country	Possible payment methods	Comment
DE, AT, CH	Payment by invoice, payment in advance, paymet by credit card	Payment by invoice is only possible for corporate clients.
NL, BE, LU	Payment by invoice, payment in advance, payment by credit card	Payment by invoice is only possible for corporate clients
Other countries	Payment in advance, payment by credit card

Our General Terms of Sale, Delivery and Payment are valid and are available for download here.

The goods are offered subject to prior sale.

Definition of status

All articles are used articles, except an article is listed especially as a new device.

Status	Condition	Comment
Immediately available	Used	The article is fully functional and in impeccable condition. It can be shipped immediately.
In stock	Used	The article is on stock. Our service technicians will verify the article before delivery. You are receiving only a fully functional article.
Published	Used	The article is still with the provider. After your order the article will be purchased and verified by us before being shipped to you. A certificate of operativeness as well as a service report are included in delivery.
New device	new	The article is brand new and unused. Regarding new equipment the guarantee/warranty conditions of the corresponding manufacturer apply.
Labprocure	Used	Labprocure GmbH, as the advertiser, is responsible for the content of this device offer. Labprocure assumes liability for the offers advertised here and for the photos and offer texts included. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen.

Firma: Millipore

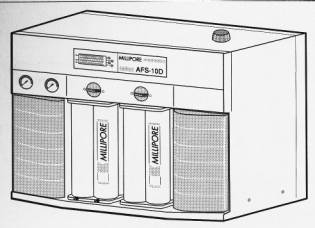

Modell: AFS 10

Kommentar: Dokumente engl.

The following illustrations and descriptions are referring to the instrument model and are drawn from brochures. They are not representing the delivery volume. The exact delivery content you will find only in the offering text.

The AFS Technology

Introducing the Analyzer Feed System (AFS)

The AFS^TM supplies clinical analyzers with the National Committee for Clinical Laboratory Standards, College of American Pathologists (NCCLS/CAP), Type I, reagent water. Performance specifications for final product water, which is low in ionic, organic, microbiological, and particulate contaminants, are listed in Chapter Six.

The AFS uses reverse osmosis (R0) technology to remove a broad spectrum of contaminants from prefiltered feed water and a patented pack design (the AFSPAK^TM ) to polish final product water to greater than 10 megohm-centimeters (MΩ-cm) resistivity. A microprocessor monitors water quality through measurements of the conductivity of the feed water and comparing it to the conductivity of the RO permeate to determine the percent rejection of the RO membrane. The system also measures product water resistivity and temperature. The control panel displays these parameters, the current system mode, and active menus.

Numerous system features ensure consistently high water quality.

The patented ROPAKTM extends the life of the RO membrane (in the RO cartridge) by combining particle filtration, carbon adsorption, and an anti-scaling compound to prevent fouling, chlorine attack, and scale formation.

The RO cartridge is automatically flushed to prevent biofilm build up on the RO membrane surface, further reducing fouling.

The optional degasser eliminates most dissolved gases from product water, protecting your analyzer from inconsistent clinical results caused by bubble formation in the analyzer.

If there is a gross system leak, it is detected by a sensor in the tray beneath the AFS, causing the water inlet valve to close. The tray is sloped, collecting and funneling any leaks to drain.

The MillipakTM-100 final filter, a 0.22 micron (µm) absolute membrane filter, ensures extremely low bacteria levels in the product water.

In addition to providing consistently high water quality, the AFS System is easy to use and maintain.

The Compact design of the system allows you to place it on a lab bench, moveable cart, or mount it on the lab wall.

The ROPAK and AFSPAK are easily installed and removed. A yellow caution light on the control panel indicates when the packs need to be changed and the display tells you which pack to change.

The RO cartridge is easy to sanitize and clean through an access port on the top of the system.

A pressurized tank stores intermediate-grade water which is further polished by the AFSPAK when the analyzer demands water. When the analyzer does not require water, the AFS processes water until the storage tank is full, then automatically enters the Tank Full, Standby mode.

An optional Point-of-Use Dispenser allows you to dispense water up to 2.1 meters (m) 7 feet (ft) from the system for applications needing Type I water (for example, reagent make up, bench chemistries, etc.).

The Eight AFS

There are Eight AFS described in this manual. The AFS 10 produces 10 liters/hour (L/hr) of final product water. It is used for clinical analyzers that require low volumes of feed watet For analyzers that require more water, Millipore offers the AFS 18, AFS 30 and AFS 60. These systems produce up to 18 L/hr, 30 L/hr and 60 L/hr, respectively. Each system is available for different voltage levels (120 V, 230 V, and 100 V) and with an optional degasser.

Water Flow Through the System

Pretreated tap water flows into the system through the ROPAKTM (1) which protects the RO membrane in the RO cartridge from fouling, chlorine attack, and scale formation. From the ROPAK, the water flows through the RO cartridge (2) for final pretreatment. In the AFS10, the RO-treated water flows to either the pressurized tank (3) for intermediate storage or to the AFSPAK (4) where it is polished to greater than 10 MQ-cm. Product water then flows through either an optional degasser (5) where dissolved gases are removed, or directly through the 0.22 u m final filter (6) where bacteria are removed. Fully purified water flows through the product port (7), and to the clinical analyzer. In the AFS 18D and AFS3OD, water flows through the degasser before it flows through the AFSPAK for polishing.

Technical Information

Performance Specifications

All eight AFS systems described in this manual meet the following NCCLS performance specifications.

Contaminant	Performance Specification
Resistivity (minimum)	≥ 10 Megohm-cm (MΩ-cm)
Bacteria	≤ 10 colony forming units per milliliter (cfu/mL) maximum bacterial content
Hourly production rate¹	AFS 10: 10 L/hr AFS 18: 18 L/hr AFS 30: 30 L/hr AFS 60: 60 L/hr
Particulates	0.22 micron (µm) filtration
Organics	Activated carbon removal
Silica	≤0.05 milligrams per liter (mg/L) as Si0₂

1. Flow rate depends an the RO feed water pressure, the condition of the RO membranes, and water temperature. Typical instantaneous peak flow is (1.5 L/minute). The hourly production rates shown in the table are achieved when the water temperature is 15°C (Celsius) or 59°F (Fahrenheit) and RO transmembrane pressure is 100 pounds per square inch (psi) or 6.9 bar for the AFS 10 and AFS18 and 150 psi (10.34 bar) for the AFS 30 and AFS 60. A lower water temperature, RO feed pressure, or inadequate RO cartridge maintenance can reduce product flow rate.

System Specifications

Dimensions

Parameter	Specification
Height	58.4 centimeters (cm) (23 Inches [in])
Width	67 cm (26.5 in)
Depth	42 cm (16.5 in)
Operating weight (with PAK and water)	46 kilograms (kg) (102 pounds)

Temperature and Pressure

Parameter	Specification
Operating temperature	5°C35°C (41°F95°F)
Storage and transport temperature	Do not freeze
Feed water pressure	Maximum: 50 psi (3.3 bar) Minimum: 30 psi (2 bar)
