Objektnummer	B00017726
ID-number	017726
Object name	Memmert UFE 500
Status	Archiv

Status, terms of delivery and payment

Verification of devices

The second-hand devices are verified by Labexchange Service GmbH before delivery. You are receiving only fully functional devices.

Dispatch time

The stated dispatch times are the shortest possible ones for each article. The effective dispatch times can vary. The effective dispatch times will be stated in the order confirmation.

As a matter of principle, we are offering collective deliveries. The shipping time is calculated based on the position with the longest lead time. A partial delivery is possible on explicit request.

Shipping methods

Parcel services, forwarding agencies, self-pickup, delivery by Labexchange fleet.

Delivery information

Prices exclude shipping costs. Stated shipping costs are to be expected. Deviations are possible. If transport costs are not specified, please ask separately for them.

The stated transport and packing charges apply to the most favorable route if transport and are to be understood as subject to verification due to unexpected cost increases. By reason of unpredictable events, cargo rates and delivery times can change at any time and therefore have to be adapted to the recent situation. Import formalities and possible customs charges will be borne by the purchaser. Incoterm coding according to Incoterms 2010: For persons who collect the devices themselves: EXW, for dipatch by sea: CFR, by air freight: CPT, other shipments: DAP. Note for international shipments: A proof of preference/EUR1 will not be issued by us. When self-collecting/ordering EXW from countries within or outside the European Union, 16% VAT will be retained as a deposit until we have received the corresponding confirmation of arrival/bill of delivery from the buyer.

Terms of payment

We do not accept payment by letter of credit, PayPal, etc. In each case the invoice amount is payable without deduction. Discount is not granted.

Country	Possible payment methods	Comment
DE, AT, CH	Payment by invoice, payment in advance, paymet by credit card	Payment by invoice is only possible for corporate clients.
NL, BE, LU	Payment by invoice, payment in advance, payment by credit card	Payment by invoice is only possible for corporate clients
Other countries	Payment in advance, payment by credit card

Our General Terms of Sale, Delivery and Payment are valid and are available for download here.

The goods are offered subject to prior sale.

Definition of status

All articles are used articles, except an article is listed especially as a new device.

Status	Condition	Comment
Immediately available	Used	The article is fully functional and in impeccable condition. It can be shipped immediately.
In stock	Used	The article is on stock. Our service technicians will verify the article before delivery. You are receiving only a fully functional article.
Published	Used	The article is still with the provider. After your order the article will be purchased and verified by us before being shipped to you. A certificate of operativeness as well as a service report are included in delivery.
New device	new	The article is brand new and unused. Regarding new equipment the guarantee/warranty conditions of the corresponding manufacturer apply.
Labprocure	Used	Labprocure GmbH, as the advertiser, is responsible for the content of this device offer. Labprocure assumes liability for the offers advertised here and for the photos and offer texts included. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen.

manufacturer: Memmert

model: UFE 500

annotation: Dokumente engl.

The following illustrations and descriptions refer to the instrument model and are drawn from brochures. They do not represent the scope of delivery. Please refer to the text of the offer for the exact scope of delivery.

Universal oven Model UFE 500

Ventilation and Control

forced air circulation by quiet air turbine, adjustable in 10% steps via process controller

continuous adjustment of pre-heated fresh air admixture

vent connection with restrictor flap

fuzzy-supported PID microprocessor controller with integrated autodiagnostic system with fault indication

solid state switching unit

2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value

digital 7-day-programme-timer with real time clock, precise minute setting, for one set value or ramp operation in combination with:

integrated digital timer for tempering profile with max. 4 segments, each segment adjustable from 1 min to 999 hours:
DELAYED ON
HEATING UP
HOLD or HOLD set-temperature-dependent with guaranteed holding time
COOLING DOWN

"Loop" function to repeat profile 1-99 times or endless

digital display (LED) of all set parameters, such as temperature, weekdays, time, fan speed, ramp segments and set-up values

resolution of display for set value 0,5 °C; for actual value 0,1 °C below 99,9 °C, 0,5 °C above 100 °C

long-term logging (ring store) of all relevant data, GLP-conforming as data logger - 1024 kB

serial interface RS 232 including MEMMERT Software "Celsius" for programming and documentation

incl. works calibration certificate for +160 °C

Triple Overtemperature Protection

in case of overtemperature due to failure, the heating is switched off at approx. 10 °C above the set temperature (fixed value)

independently working, digitally adjustable electronic overtemperature controller TWW protection class 3.1

resolution of display and setting accuracy: 0,5 °C below 99,9 °C, 1 °C above 100 °C

mechanical temperature limiter TB protection class 1 switching the heating off at approx. 10 °C above max. oven temperature

Textured Stainless Steel Casing

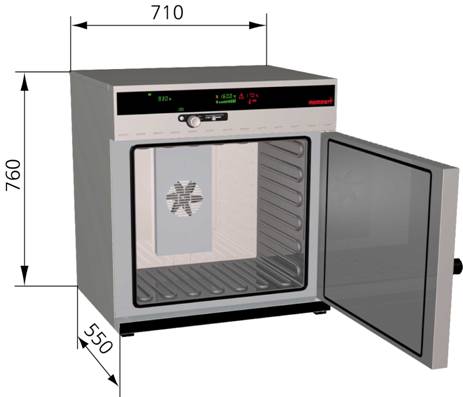

w x h x d: 710 x 760 x 550 mm

fully insulated stainless steel door with double locking and 4-point adjustment

rear zinc-plated steel

Interior - Heating Concept

w x h x d: 560 x 480 x 400 mm, 108 l

easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides

2 stainless steel grids

Temperature Range

from +30 °C (however, at least 10 °C above ambient) up to +250 °C

Voltage / Power Rating

230 V (+/- 10%), 50/60 Hz

ca. 2.000 W (during heating)

adaption of effective heating power depending on the set temperature

Packing Data

net weight approx. 56 kg

gross weight carton approx. 69 kg

dimensions approx.:
carton w x h x d: 82 x 97 x 67 cm

the appliances must be transported upright

Accessories optional

	Temperature range +300 °C for universal ovens (not available for ovens with glass door)		A0
	Perforated stainless steel shelf		E0(x)
	Stainless Steel Grid (for good air circulation)		E3(x)
	Interface USB instead of interface RS232		W3
	IQ check list with works test data for oven as support for validation by customer		Q1
	OQ check list including one free-selectable temperature distribution survey to DIN 12880: 2007-05 (size 200/300: 9 measuring points, size 400-800: 27 measuring points) with works test data for oven as support for validation by customer		Q2
