Leica EG 1150
Objektnummer | B00019052 |
---|---|
ID-number | 019052 |
Object name | Leica EG 1150 |
Status | Archiv |
Status, terms of delivery and payment
Verification of devices
The second-hand devices are verified by Labexchange Service GmbH before delivery. You are receiving only fully functional devices.
Dispatch time
The stated dispatch times are the shortest possible ones for each article. The effective dispatch times can vary. The effective dispatch times will be stated in the order confirmation.
As a matter of principle, we are offering collective deliveries. The shipping time is calculated based on the position with the longest lead time. A partial delivery is possible on explicit request.
Shipping methods
Parcel services, forwarding agencies, self-pickup, delivery by Labexchange fleet.
Delivery information
Prices exclude shipping costs. Stated shipping costs are to be expected. Deviations are possible. If transport costs are not specified, please ask separately for them.
The stated transport and packing charges apply to the most favorable route if transport and are to be understood as subject to verification due to unexpected cost increases. By reason of unpredictable events, cargo rates and delivery times can change at any time and therefore have to be adapted to the recent situation. Import formalities and possible customs charges will be borne by the purchaser. Incoterm coding according to Incoterms 2010: For persons who collect the devices themselves: EXW, for dipatch by sea: CFR, by air freight: CPT, other shipments: DAP. Note for international shipments: A proof of preference/EUR1 will not be issued by us. When self-collecting/ordering EXW from countries within or outside the European Union, 16% VAT will be retained as a deposit until we have received the corresponding confirmation of arrival/bill of delivery from the buyer.
Terms of payment
We do not accept payment by letter of credit, PayPal, etc. In each case the invoice amount is payable without deduction. Discount is not granted.
Country |
Possible payment methods |
Comment |
DE, AT, CH |
Payment by invoice, payment in advance, paymet by credit card |
Payment by invoice is only possible for corporate clients. |
NL, BE, LU |
Payment by invoice, payment in advance, payment by credit card |
Payment by invoice is only possible for corporate clients |
Other countries |
Payment in advance, payment by credit card |
|
Our General Terms of Sale, Delivery and Payment are valid and are available for download here.
The goods are offered subject to prior sale.
Definition of status
All articles are used articles, except an article is listed especially as a new device.
Status |
Condition |
Comment |
Immediately available |
Used | The article is fully functional and in impeccable condition. It can be shipped immediately. |
In stock |
Used |
The article is on stock. Our service technicians will verify the article before delivery. You are receiving only a fully functional article. |
Published |
Used |
The article is still with the provider. After your order the article will be purchased and verified by us before being shipped to you. A certificate of operativeness as well as a service report are included in delivery. |
New device |
new |
The article is brand new and unused. Regarding new equipment the guarantee/warranty conditions of the corresponding manufacturer apply. |
Labprocure |
Used |
Labprocure GmbH, as the advertiser, is responsible for the content of this device offer. Labprocure assumes liability for the offers advertised here and for the photos and offer texts included. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen. |
manufacturer : Leica
model : EG 1150
annotation : Dokumente engl .
The following illustrations and descriptions refer to the instrument model and are drawn from brochures. They do not represent the scope of delivery. Please refer to the text of the offer for the exact scope of delivery.

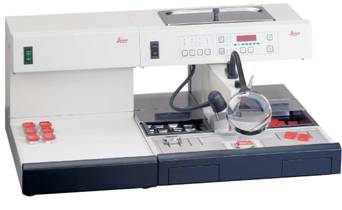

Leica EG1150
Convenient and comfortable tissue embedding center
Modern Technology for Comfortable Embedding
The new Leica EG1150 modular tissue embedding center incorporates two separate components, the Leica EG1150 C cold plate and the Leica EG1150 H heated embedding module. The independent modules offer the flexibility to arrange embedding workflow in the direction that best suits your laboratory.
Adjustable embedding center height
In addition to the already low, comfortable working position, now you can even adjust the work surface height for optimum ergonomics.
Left or right handed workflow
The modular system of the Leica EG1150 allows the placement of the cold plate onto either end of the heated embedding module allowing the tech nician to embed in either a right or left handed direction.
Rounded arm rests
Rounded arm rests provide a comfortable working position free from any hard pressure points on technicians arms.
Tissue cassette and mold warming trays located at the same level
No need for excessive arm movements while embedding. Tissue cassettes and molds are kept at the same level providing a comfortable workflow with minimum effort.
Position adjustable halogen light and magnifier
Bright, even illumination of the work area is provided by the position adjustable halogen lamp. A position adjustable magnifier is also available as an option to facilitate specimen orientation when embedding.
At a glance...
Leica EG1150 H
- Height-adjustable, rotary and fold-back clip for activating the paraffin flow with the embedding mold, manually or via foot switch
- Setting screw for precise paraffin flow rate adjustment
- Paraffin flow via gravitational force
- Spacious, heated work surface with paraffin drain system for interim storage of molds and cassettes
- Two heated, removable paraffin collecting trays
- Adjustable temperatures for paraffin reservoir, working surfaces and integrated warming trays, between 55 °C to 70 °C in 5 K increments
- Enhanced mode, selectable for rapid paraffin melting when working in shifts
- Programmable on and off timer
- Magnifier (optional)
- Foot switch (optional)
Leica EG1150 C
- Constant temperature of the cold plate at 5 °C
- Approx. 70 cassette molds capacity
- Acrylic cover (optional)
Technical Specification
Leica EG1150 C
Admissions: UL
Nominal supply voltages (AC ± 10 %): 230 V/50 Hz
120 V/60 Hz
100 V/50 - 60 Hz
240 V/50 Hz
Maximum power draw: 350 VA
Operating temperature range: +18 °C to +40 °C
Working temperature: 5 °C at 22 °C ambient
temperature , after 20 min.
Relative air humidity: maximum 60 %, non-condensing
Dimensions and weights
Width: 360 mm
Depth: 650 mm
Height: 360 mm
Cold plate ( WxD ): 330 x 370 mm
Cold plate capacity: 70 standard cassette molds
Weight: 23 kg
Leica EG1150 H
Admissions: UL
Nominal supply voltages: 100 120 V, 50/60 Hz
230 240 V, 50/60 Hz
Maximum power draw: 1100 VA
Operating temperature range: +18 °C to +40 °C
Working temperatures: 55 °C to 70 °C
adjustable in 5 K increments
Relative air humidity: maximum 60 %, non-condensing
Capacity
Paraffin reservoir: 3 l
Cassette tray/warming tray: approx. 100 cassettes
Dimensions and weights
Width: 500 mm
Depth: 640 mm
Height : 360 mm
Working surface (W x D): 2 x 210 x 175 mm
Cool spot: 68 x 68 mm
Weight: approx. 30 kg
The Leica EG1150 C and Leica EG1150 H instruments are manufactured in accordance with UL, CSA, IEC, C-Tick and VDE standards. The latest in development, production and testing facilities documented in accordance with ISO 9001 ensure the highest quality and reliability.
Comprehensive range of accessories on request.
Technical specification subject to change.
