Haake D8-G
Objektnummer | B00015131 |
---|---|
ID-number | 015131 |
Object name | Haake D8-G |
Status | Archiv |
Status, terms of delivery and payment
Verification of devices
The second-hand devices are verified by Labexchange Service GmbH before delivery. You are receiving only fully functional devices.
Dispatch time
The stated dispatch times are the shortest possible ones for each article. The effective dispatch times can vary. The effective dispatch times will be stated in the order confirmation.
As a matter of principle, we are offering collective deliveries. The shipping time is calculated based on the position with the longest lead time. A partial delivery is possible on explicit request.
Shipping methods
Parcel services, forwarding agencies, self-pickup, delivery by Labexchange fleet.
Delivery information
Prices exclude shipping costs. Stated shipping costs are to be expected. Deviations are possible. If transport costs are not specified, please ask separately for them.
The stated transport and packing charges apply to the most favorable route if transport and are to be understood as subject to verification due to unexpected cost increases. By reason of unpredictable events, cargo rates and delivery times can change at any time and therefore have to be adapted to the recent situation. Import formalities and possible customs charges will be borne by the purchaser. Incoterm coding according to Incoterms 2010: For persons who collect the devices themselves: EXW, for dipatch by sea: CFR, by air freight: CPT, other shipments: DAP. Note for international shipments: A proof of preference/EUR1 will not be issued by us. When self-collecting/ordering EXW from countries within or outside the European Union, 16% VAT will be retained as a deposit until we have received the corresponding confirmation of arrival/bill of delivery from the buyer.
Terms of payment
We do not accept payment by letter of credit, PayPal, etc. In each case the invoice amount is payable without deduction. Discount is not granted.
Country |
Possible payment methods |
Comment |
DE, AT, CH |
Payment by invoice, payment in advance, paymet by credit card |
Payment by invoice is only possible for corporate clients. |
NL, BE, LU |
Payment by invoice, payment in advance, payment by credit card |
Payment by invoice is only possible for corporate clients |
Other countries |
Payment in advance, payment by credit card |
|
Our General Terms of Sale, Delivery and Payment are valid and are available for download here.
The goods are offered subject to prior sale.
Definition of status
All articles are used articles, except an article is listed especially as a new device.
Status |
Condition |
Comment |
Immediately available |
Used | The article is fully functional and in impeccable condition. It can be shipped immediately. |
In stock |
Used |
The article is on stock. Our service technicians will verify the article before delivery. You are receiving only a fully functional article. |
Published |
Used |
The article is still with the provider. After your order the article will be purchased and verified by us before being shipped to you. A certificate of operativeness as well as a service report are included in delivery. |
New device |
new |
The article is brand new and unused. Regarding new equipment the guarantee/warranty conditions of the corresponding manufacturer apply. |
Labprocure |
Used |
Labprocure GmbH, as the advertiser, is responsible for the content of this device offer. Labprocure assumes liability for the offers advertised here and for the photos and offer texts included. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen. |
Firma: Haake
The following illustrations and descriptions are referring to the instrument model and are drawn from brochures. They are not representing the delivery volume. The exact delivery content you will find only in the offering text.

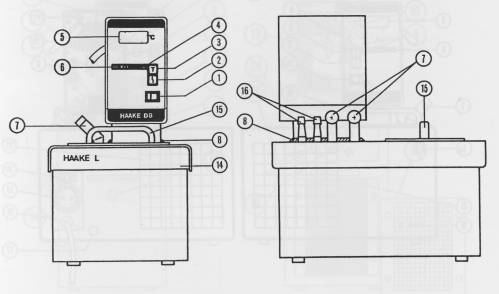

Panel Controls und Indicators D8 and D8-L
(1) Mains Power Switch
(2) Reset Key/Malfunction Indicator
(3) Switch - Preset Temperature Display
(4) Heater Control Light
(5) LED Preset/Actual Temperature Display
(6) Serrated Wheel - Temperature Presetting
(7) Tubing Connection (rear = Pressure)
(front = Return Flow)
(8) Gasket
(9) Fuses
(10) Power Cable
(11) Programmer Sockel
(12) Toggle Switch - External Temperature Presetting
(13) Overtemperature Setting
(14) Bath Vessel "L"
(15) Bath Lid
(16) Tubing Connection - Cooling Water Circuit

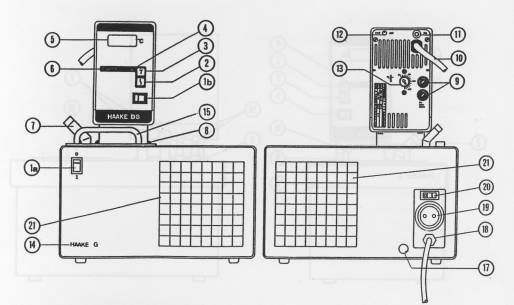

Panel Controls and Indicators D8-G
(1a) Power Switch, Bath Vessel "G"
(1 b) Power Switch, Temperature Control Module D8
(2) Reset Key/Malfunction Indicator
(3) Switch Preset Temperature Display
(4) Heater Control Light
(5) LED Preset/Actual Temperature Display
(6) Serrated Wheel Temperature Presetting
(7) Tubing Conneetion (rear Pressure) (front Rcturn Flow)
(8) Gasket
(9) Fuses
(10) D8 Power Cable for connection to (19)
(11) Programmer Socket
(12) Toggle Switch External Temperature Presetting
(13) Overtemperature Setting
(14) Bath Vessel "G"
(15) Bath Lid
(17) Drain Nozzle
(18) Power Cable for Bath Vessel 'G'
(19) Power Socket for Temperature Control Module D8
(20) Switch for Refrigerating Compressor
(21) Cooling Grid

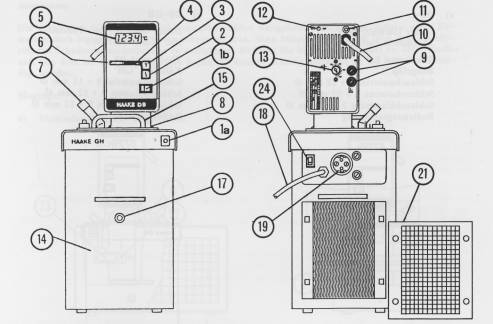

Panel Controls and Indicators D8-GH
(1a) Power Switch, Bath Vessel "GH"
(1b) Power Switch, Temperature Control Module D8
(2) Reset Key/Malfunction Indicator
(3) Switch - Preset Temperature Display
(4) Heater Control Light
(5) LED Preset/Actual Temperature Display
(6) Serrated Wheel - Temperature Presetting
(7) Tubing Connection (rear Pressure) (front Return Flow)
(8) Gasket
(9) Fuses
(10) D8 Power Cable for connection to (19)
(11) Programmen Socket
(12) Toggle Switch - External Temperature Presetting
(13) Overtemperature Setting
(14) Bath Vessel "GH"
(15) Bath Lid
(17) Drain Nozzle
(18) Power Cable for Refrigerated Bath "GH
(19) Power Socket for Temperature Control Module D8
(21) Rear Cooling Grid (remove for simple eleaning of the liquefier)
Technical Specifications (nach DIN 58 966)
|
D8-L |
D8-G |
D8-GH |
|
Operating Temperature Range |
°C |
30 to 150 |
-15 to 150 |
-25 to 150 |
Extended Temperature Range*) |
°C |
-50 to 150 |
|
|
Temperature Setting Mode |
|
digital |
||
Temperature Control Accuracy |
°C |
0,02 |
||
Temperature Control Mode |
|
WATTOMATIC(R) |
||
Control Sensor |
|
Pt 100 |
||
Heater Capacity (220V/115V) |
W |
1500/1000 |
||
Cooling Coil |
|
Standard |
|
340 |
Cooling Capacity at 20°C |
W |
|
200 |
|
Pressure Pump: Pressure, max. |
mbar |
150 |
||
Flow Rate, max. |
1/min. |
12 |
||
Overtemperature Protection |
°C |
variable, 20 to 160 |
||
Low Liquid Protection |
|
fixed |
||
Safety Class |
|
2 |
||
External Temperature Presetting |
V/°C |
0.01 (0.0 V = 0.0°C) |
||
Bath Depth |
mm |
150 |
||
Bath Opening |
mm |
125 x 100 |
125 x 100 |
170 x 150 |
Filling Volume |
1 |
3 |
3 |
4.5 |
Overall Dimensions: WxLxH |
mm |
190x285x380 |
375x360x390 |
220x405x430 |
Weight |
kg |
7 |
22 |
25 |
Submerged parts: |
|
Stainless Steel 18/8 / Plastic |
||
Total Wattage (220V/115V) |
W |
1550/1050 |
1710/1210 |
1810/1310 |
Power Requirements: |
V/Hz |
220 V ± 10% |
220 V ± 10% |
220 V ± 10% |
|
|
/50-60 |
/50 |
/50-60 |
|
|
or 115 V/60 Hz |
||
RFI Suppression (VDE 0875) |
|
N |
||
Allowable ambient temperature |
°C |
10 - 40 |
||
*) wich additional Cooling (Optional) |
