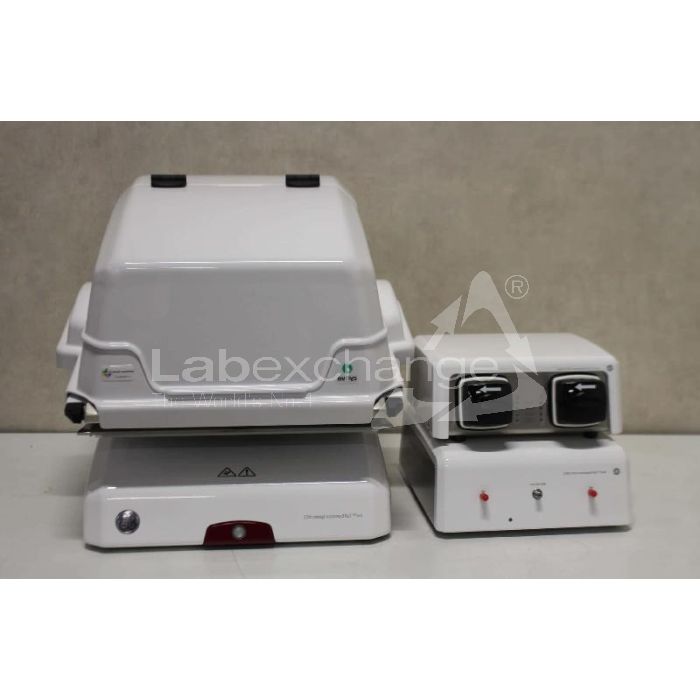

The Xuri Cell Expansion System W25 provides an automated and controlled environment for expanding cell therapies in volumes up to 25 liters for research, process development, and manufacturing. The closed system minimizes the risk of cell contamination. High cell densities are achieved through automated perfusion protocols. The process remains controllable via advanced control functions and remote monitoring using UNICORN software. Suitable for use in regulated environments. Over 10 x 106 cells/ml are achieved in volumes up to 25 liters with non-invasive mixing, media perfusion, and efficient oxygen transfer in a gentle, low-shear environment. External air supply (per CBCU): 1.0 to 1.5 bar, normal operation: 1.3 L/min, rapid filling: 3.5 L/min. External CO2 supply (per CBCU): 1.0 to 1.5 bar, normal operation: 0.2 L/min, rapid fill: 0.5 L/min. External oxygen supply (per CBCU): 1.0 to 1.5 bar, normal operation: 0.7 L/min, rapid fill: 1.7 L/min. Rocker specifications: speed control range 2 to 40 rpm, rock angle range 2° to 12°, rock velocity profile 15% to 100% (the percentage refers to the proportion of sinusoidal angular displacement; 15% corresponds to near constant angular velocity, 100% to sinusoidal rocking). Media weight control range: 0.5 to 25 kg. Scale, absolute accuracy (single mode): ±(0.050 + 1% of load) kg. Scale, left/right absolute accuracy (dual mode): ±(0.1 + 6% of load) kg. Temperature sensor: Pt100 Class A. Temperature measuring range: 2°C to 50°C. Temperature setpoint difference (dual mode): max. 10°C at 21°C ambient temperature (the difference decreases by 1°C per degree of ambient temperature increase). Temperature control range: (ambient temperature + 5°C) to 40°C. Temperature control accuracy (no measurement error): ±0.2°C. CBCU specifications: Gas flow control range 50 to 1000 mL/min. Total gas flow accuracy (reference flow – setpoint): ±(10 + 3% of measured value) mL/min. Rapid fill flow: approx. 3 L/min. CO2 control range: 0% to 15% CO2. CO2 measurement accuracy at 5% CO2: ±0. 5% CO2 (when mixed with air/N2). CO2 control accuracy (vs. setpoint): ±0.4% CO2. O2 control range: 0% to 50% O2 (mixed with N2), 21% to 50% O2 (mixed with air). O2 measurement accuracy: ±(0.6 + 1% of the measured value) between 0% and 50% O2 (when mixed with air/N2). O2 control accuracy (vs. setpoint): ±0.6% O2. pH measurement range: pH 4.5 to 8.5. pH control range: pH 6.0 to 8.0. pH measurement accuracy: ±0.05 pH within ±0.25 pH of the calibration offset, ±0.1 pH within 0.25 to 0.5 pH of the calibration offset. pH control accuracy (vs. setpoint): ±0. pH 0.5. DO measuring range: 0% to 250% air saturation. DO measuring accuracy: ±5% air saturation, without consideration of atmospheric pressure fluctuations. DO control range: 0% to 100% air saturation. Pump specifications: Flow rate 0.1 to 144 L/day (0.07 to 100 mL/min). Flow rate accuracy: ±(0.1 + 5% of reading) mL/min after calibration. Cumulative volume accuracy: ±10% of measured volume. Supported tubing dimensions: Inner diameter 0.5 to 4.8 mm (1/50" to 3/16"), wall thickness 1.6 mm (1/16"). Rocker dimensions (W x H x D): 404 x 205 x 560 mm. CBCU dimensions (W x H x D): 276 x 117 x 360 mm. Pump dimensions (W x H x D): 275 x 115 x 280 mm. Rocker weight: 24 kg. CBCU weight: 4.8 kg. Pump weight: 3.8 kg. Software not included.
