Appl.Biosystems BioCAD 700E
| Objektnummer | B00010123 |
|---|---|
| ID-number | 010123 |
| Object name | Appl.Biosystems BioCAD 700E |
| Status | Stock unit |
Product group: HPLC Systems
Status, terms of delivery and payment
Verification of devices
The second-hand devices are verified by Labexchange Service GmbH before delivery. You are receiving only fully functional devices.
Dispatch time
The stated dispatch times are the shortest possible ones for each article. The effective dispatch times can vary. The effective dispatch times will be stated in the order confirmation.
As a matter of principle, we are offering collective deliveries. The shipping time is calculated based on the position with the longest lead time. A partial delivery is possible on explicit request.
Shipping methods
Parcel services, forwarding agencies, self-pickup, delivery by Labexchange fleet.
Delivery information
Prices exclude shipping costs. Stated shipping costs are to be expected. Deviations are possible. If transport costs are not specified, please ask separately for them.
The stated transport and packing charges apply to the most favorable route if transport and are to be understood as subject to verification due to unexpected cost increases. By reason of unpredictable events, cargo rates and delivery times can change at any time and therefore have to be adapted to the recent situation. Import formalities and possible customs charges will be borne by the purchaser. Incoterm coding according to Incoterms 2010: For persons who collect the devices themselves: EXW, for dipatch by sea: CFR, by air freight: CPT, other shipments: DAP. Note for international shipments: A proof of preference/EUR1 will not be issued by us. When self-collecting/ordering EXW from countries within or outside the European Union, 16% VAT will be retained as a deposit until we have received the corresponding confirmation of arrival/bill of delivery from the buyer.
Terms of payment
We do not accept payment by letter of credit, PayPal, etc. In each case the invoice amount is payable without deduction. Discount is not granted.
|
Country |
Possible payment methods |
Comment |
|
DE, AT, CH |
Payment by invoice, payment in advance, paymet by credit card |
Payment by invoice is only possible for corporate clients. |
|
NL, BE, LU |
Payment by invoice, payment in advance, payment by credit card |
Payment by invoice is only possible for corporate clients |
|
Other countries |
Payment in advance, payment by credit card |
|
Our General Terms of Sale, Delivery and Payment are valid and are available for download here.
The goods are offered subject to prior sale.
Definition of status
All articles are used articles, except an article is listed especially as a new device.
|
Status |
Condition |
Comment |
|
Immediately available |
Used | The article is fully functional and in impeccable condition. It can be shipped immediately. |
| In stock |
Used |
The article is on stock. Our service technicians will verify the article before delivery. You are receiving only a fully functional article. |
|
Published |
Used |
The article is still with the provider. After your order the article will be purchased and verified by us before being shipped to you. A certificate of operativeness as well as a service report are included in delivery. |
|
New device |
new |
The article is brand new and unused. Regarding new equipment the guarantee/warranty conditions of the corresponding manufacturer apply. |
|
Labprocure |
Used |
Labprocure GmbH, as the advertiser, is responsible for the content of this device offer. Labprocure assumes liability for the offers advertised here and for the photos and offer texts included. Labprocure GmbH, Bruckstraße 58, 72393 Burladingen. |
Overview
PerSeptive Biosystems BioCAD ® 700E Workstation for Perfusion Chromatography ® is a computer-aided chromatography workstation that integrates all aspects of biomolecule purification with Perfusion Chromatography technology.
The BioCAD 700E Workstation is designed for:
Chromatographic method execution Routine execution of chromatographic methods for the purification and analysis of biomolecules.
Systematic method development The goal of method development is to optimize conditions for your application. Systematic method development makes it easy to identify variables that affect your application, systematically change the variables, observe the effects, and use the information to optimize chromatographic conditions.
The BioCAD 700E Workstation provides the following features:
Simplicity Microsoft ® Windows ® -based software that is intuitive and easy to use. You can efficiently develop and execute separations for analytical and preparative applications.
Full Process Capability Full capability from sample injection through fraction collection, including automated column washing and regeneration.
Speed Chromatographic separations in as little as one to three minutes, when using POROS ® media and columns.
Versatility Multiple column configurations and injection mode options.
Gradient Capability Six-buffer/solvent capability, with simultaneous blending between any four buffers/solvents.
Detection Monitoring of pH, conductivity, dual-wavelength UVNis absorbance, fluorescence (optional), and system pressure.
Templates Predefined templates for systematic method development of key variables such as pH, gradient slope, and sample load.
Data Analysis Data analysis of single data files or groups of data fites.
SCOUT ® Column Selector Automated multi-column switching device that allows flow to be diverted to any one of six attached columns (optional).
Parts of the system
The BioCAD 700E Workstation includes:
Front panel indicators and controls
Buffer/solvent and pump system
Sample Ioader
Columns and plumbing
Detector and monitors
Fraction collection
Computer components

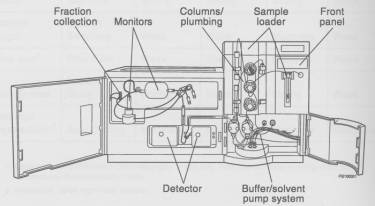

Figure 1-2 BioCAD 700E Workstation
Specifications
|
Condition |
Specification |
|
Weight |
275 pounds (125 kg) |
|
Space requirements |
Space required for workstation, computer monitor, keyboard, mouse, and buffers: Height36 inches (91 cm) Depth36 inches (91 cm) Width72 inches (183 cm) |
|
Pumping system |
Dual piston, positive dispiacement with 6 inlets, pressure safety, and built-in seal flush |
|
Flow rate |
0.260 mI/min Accuracy is +/- 1% of setpoint or 0.05 mI/min (whichever is greater) |
|
Maximum system pressure |
3,000 psi (204 bar, 20.4 MPa) |
|
Gradient capability |
Up to six solvents, with Iow-pressure quaternary blending in Percentage, Eluent, or pH blend modes with 0.1% increments. Compositional accuracy: ± 1% |
|
Sample handling |
Six injection modes: |
|
|
AutoloaderUp to four sample channels, with a sample loading range of 1 µl to 25 ml, ± 1% accuracy at full stroke Direct AutoloaderReduces prime volume (minimum 5 µl), single sample channel, with a sample loading range of 1 µl to 25 ml, ± 1% accuracy at full stroke ManualEliminates prime volume, needle port adapter included PumpUnlimited volume loading Integrated Autosampler (optional)Inject from multiple samples, with complete control over autosampler functions Direct Wire Autosampler (optional)Inject from multiple samples, control autosampler from autosampler front panel |
|
Column sizes |
POROS ® Perfusion Chromatography ® columns2.1 to 25 mm diameter Conventional chromatography columnsno limit on column size |
|
Column configurations |
Single column, with bypass and reverse Tandem columns, with bypass Three columns Low dispersion Direct control NOTE: Use up to eight columns with optional SCOUT Column Selector. |
|
Fraction collection |
Internal fraction/waste valve for manual and automated control of single fraction collection Integrated control of optional external fraction collectors, which accommodate tubes or larger bottles. Tube-to-tube switching time is 0.1 seconds. |
|
Materials |
Biocompatible and solvent-resistantPEEK, Teflon ® , Kel F ® , Kynar ® , sapphire, stainless steel, aluminum oxide, ruby |
|
Auxiliary inputs and outputs |
Inputs2 TTL Outputs2 TTL |
|
Auxiliary driver outputs |
Spareout LC12 V (0.25 A) Spareout HC24 V (1 A) |
Detection
|
Condition |
Specification |
|
Pressure |
Transducer on pump discharge0 to 3,000 psi |
|
Auxiliary input |
12-bit A/D for additional detector |
|
Monitor bypass |
Automated valve switches pH/conductivity probes in and out of line |
|
pH probe |
Range2 to 12 pH units Flow cell volume50 µl |
|
Conductivity probe |
Range0 to 200 mS Flow cell volume7 µl |
|
UV/Visible |
Model 201 (single wavelength)190 nm to 800 nm Model 205 (dual wavelength) 190 nm to 800 nm (single wavelength range) 190 to 450 nm OR 366 to 700 nm (dual wavelength ranges)
Flow cells available: Analytical6 mm path length, 9 µl volume, 45 mI/min flow rate maximum Semi-prep3 mm path length, 4.5 µl volume, 100 mI/min flow rate maximum |
Miscellaneous
|
Standard |
Specification |
|
Hardware (standard) |
Internal Pentium/133 MHz processor (minimum) 3.2 gigabyte hard disk drive (minimum) 64 megabyte RAM (minimum) 3.5-inch floppy disk drive 14-inch Super VGA color monitor Keyboard Mouse Network card SCSI card |
|
Hardware (options) |
17-inch color monitor 21-inch color monitor Laser and color printers SCOUT Column Selector External detector (UV/Vis or fluorescence) Fraction collector Autosampler Kits of selected POROS columns |
|
Software (standard) |
BioCAD Software Windows 95 Version OSR 2.5 |
|
Software (options) |
SupervisorTM Software (standalone software version) Microsoft Office 97 |
