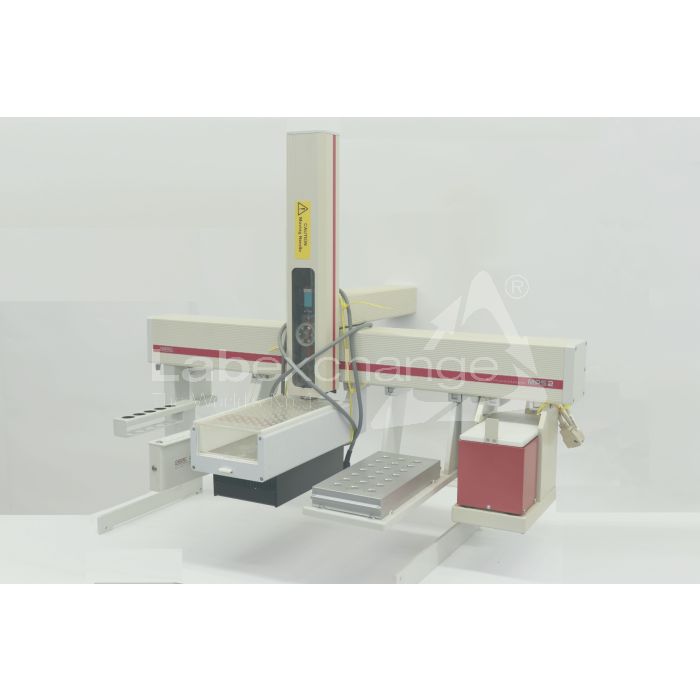

Manufacturer      Gerstel

Model:                 MPS2

This is what your MPS does

High productivity, maximum sample throughput

• Complete automation from sample preparation to GC/MS or LC/MS analysis: Manual steps are reduced to a minimum
• Optimal system utilization through intelligent multiple nesting of sample preparation and analysis run (PrepAhead) – even with multi-method sequences
• Urgent samples can be inserted into the current sequence at any time. This means that the necessary flexibility is maintained even in routine operation.
• Easy handling of the entire system through integrated control via only one sequence list and – depending on the system – only one method

Safe and trouble-free operation

• By logging all system parameters in a log file, the processes are always clearly traceable
• The robust and reliable technology of the MPS has proven itself thousands of times in laboratories worldwide
• Timely and location-independent status information via e-mail to ensure workflows
• Clear real-time display of the current device parameters according to individual requirements

Maximum flexibility

• Multi-method sequences enable flexible analysis and rapid method development
• The modular concept of the MPS allows the integration of many different sample preparation techniques – and thus easy adaptation to future analytical questions
• Different syringes can be used to perform different sample preparation and sample application techniques in parallel

Simple, safe and intuitive operation

• Easy editing of self-explanatory sample preparation steps in the MAESTRO software – with a mouse click and without macro programming
• A sequence table and – depending on the system – a method controls the entire analytical system including GC/MS or LC/MS
• High occupational safety thanks to minimized risk of contact with harmful solvents

Technical data

autosampler type

XYZ robot with syringe

Positioning accuracy ± 0.1 mm

system configuration

Compatible with all common GCs

Compatible with all standard inlets

Suitable for all injector locations

Multiple injectors can be used

Numerous accessories available

system versions

MPS Liquid

MPS Headspace

MPS SPME

steering

About the GERSTEL MAESTRO software and the manual control

Compilation of sample processing steps with a mouse click

Detailed online help for easy handling of the software

sample capacity

200 x 1 mL vials per tray

98 x 2-mL vials per tray

78 x 1 mL vials per tray

32 x 10 mL/20 mL vials per tray

8 x 100 mL vials per tray

Max. 4 trays depending on configuration

Temperable trays

temperature range 4 … 200 °C

For 1 mL, 2 mL, 10 mL and 20 mL vials

With Peltier or liquid cooling

washing stations

solvent positions 2 … 4

solvent supply 10 ... 1000 mL

agitators/incubators

2 … 15 positions

For 2 mL, 10 mL, 10 mL and 100 mL vials

temperature range 10 … 200 °C

Shaking speed 205 … 750 rpm (± 15%)

Stirring speed 500 … 1500 rpm (± 15%)

dilutor module

1 mL, 2.5 mL, 5 mL and 10 mL dilutor syringes

solvent supply 1000 mL

Fiber Bakeout Station

Bakeout temperature max. 350 °C

gas flow 6 or 12 mL/min

interfaces

2 x AUX for heaters or agitator

2 x interface

RS 232 for connecting a PC

LAN for connecting a PC

WASH STATION

MODBUS for valves

operating conditions

4 … 40°C

Relative humidity 75%, non-condensing

power supply

100 … 240 VAC

50/60 Hz

120 W

Dimensions (W x D x H)

828 x 385 x 648 mm

Weight

10 kg (without accessories)

guidelines

2006/95/EC (low voltage)

89/336/EC (EMC)

2006/42/EC (MRL)

DIN EN 61010-1:2001

IEC 61010-1:2001

ANSI/UL 61010A-1:2004 ^2nd Edition

CAN/CSA C22.2 No. 61010-1:2004 ^2nd Edition

DIN EN 61326:1997-1 +A1:1998

IEC 61326-1:2005

IEC 61326-2-6:2005

CISPR 22:2005 +A1:2005 +A2:2006

FCC 47CRF Part. 15:2003

MPS Liquid

vials

1 mL, 2 mL, 10 mL or 20 mL

Temperature controllable, 4 … 200 °C

syringes

1.2 µL, 5 µL, 10 µL, 25 mL 100 µL, 250 µL, 500 µL or 1000 µL

Special LVI syringes allow slower injection

Heatable 10 µL syringe, 35 … 80 °C

Universal syringe holder for all syringe sizes

injection volume

0 … 100µL, depending on the syringe volume

Max. 99 injections per vial

injection technique

standard

Sandwich technique with air or solvent

Large-Volume

speeds

Injection speed 0.05 … 500 µL/s, depending on syringe volume

Draw-up speed 0.05 … 500 µL/s, depending on syringe volume

Separately adjustable for injection and rinsing steps

Separately adjustable for sample and solvent

reproducibility

<0.08%

rinsing steps

Separately adjustable pre- and post-clean steps

Optionally with sample or solvent

Up to 2 different solvents can be used

depth of the needle

In the sample vial 1 … 45 mm

In the solvent vial 1 … 45 mm

In the injector 20 … 45 mm

Special features with MAESTRO software

Real sandwich technique

standard addition

Sample preparation with nesting (Prep-Ahead)

MPS Headspace

vials

10 mL, 20 mL or 100 mL, depending on configuration

syringes

1 mL, 2.5 mL or 5 mL

Heated syringe holders for all syringes

syringe temperature

35 … 150 °C, adjustable in steps of 1 °C

injection volume

100 .. 2500 µL, depending on the syringe volume

speed

Injection speed 10 … 1000 µL/s, depending on syringe volume

Draw-up speed 10 … 1000 µL/s, depending on syringe volume

depth of the needle

In the sample vial 1 … 45 mm

In the injector 20 ... 45 mm

syringe cleaning

0 … 60 min purging time with inert gas

incubation

Incubation temperature max. 200 °C

Incubation time max. 24 h

sampling

From Agitator/Incubator

Directly from the tray

reproducibility*

<1.0% RSA

carryover*

<0.05%

Special features with MAESTRO software

Sampling with pressure compensation possible

Multiple injections for sample enrichment (Multiple Headspace Sample Enrichment MHSE)

Multiple nesting of sample preparation and analysis possible (Prep-Ahead)

MPS SPME

vials

2mL, 10mL, 10mL or 100mL

fibers

23 Gauge

Fiber sets available for various analytes

One fiber holder for all fibers

conditioning of the fiber

In the fiber bakeout station or in the injector

Before or after extraction

temperature depends on the fiber

derivatization

Optionally before or after extraction

Derivatization time max. 24 h

extraction

With standard agitator

With agitator-stirrer, gentle on the fibers

Directly from the tray

Special features with MAESTRO software

Multiple nesting of sample preparation and analysis possible (Prep-Ahead)

agitators and incubators

standard agitator

6 positions

2-mL, 10-mL, and 20-mL vials

Temperature range 35 … 200 °C, adjustable in steps of 1 °C

Shaking speed 250 … 750 rpm (± 15%)

Dimensions 180 x 115 x 185 mm (H x W x D)

Weight 2.2 kg

agitator-stirrer

6 positions

20 mL vials

Temperature range 35 … 120 °C, adjustable in steps of 1 °C

Optional shaking or stirring operation

Shaking speed 250 … 750 rpm (± 15%)

Stirring speed 500 … 1500 rpm (± 15%)

Dimensions 180 x 115 x 185 mm (H x W x D)

Weight 2.2 kg

Cooled agitator

6 positions

2 mL, 10 mL and 20 mL vials

10 … 200 °C temperature range, adjustable in steps of 1 °C

Cooling via the Peltier cooling UPC

Control via the AUX controller 163

Dimensions 180 x 120 x 185 mm (H x W x D)

Weight 2.2 kg

incubator for 100 mL vials

2 positions

100 mL vials

35 … 180 °C temperature range, adjustable in steps of 1 °C

Dimensions 212 x 128 x 336 mm (H x W x D)

Weight 6.2 kg

Heated Tray 32-20

32 x 20 mL vials

35 … 200 °C

Further expansion stages and options

• GERSTEL SPE, the MultiPurposeSampler for automated solid phase extraction
• Twister option, for automated desorption of GERSTEL Twisters in a GERSTEL Thermal Desorption Unit TDU
• DHS DynamicHeadSpace, for the automation of dynamic headspace technology with the MPS
• ATEX option, for the automated operation of a GERSTEL Thermal Desorption Unit TDU including liquid injection and tube change
• ALEX option, for automated liner change in the GERSTEL KAS
• SPME MultiFiberExchange MFX for solid phase extraction with automated fiber exchange
• DisposablePipetteExtraction DPX, a further development of SPE with powdered adsorbent
• MPS PrepStation, the system with 2 rails and 2 towers for the simultaneous operation of 2 different syringes
• special solutions on request
